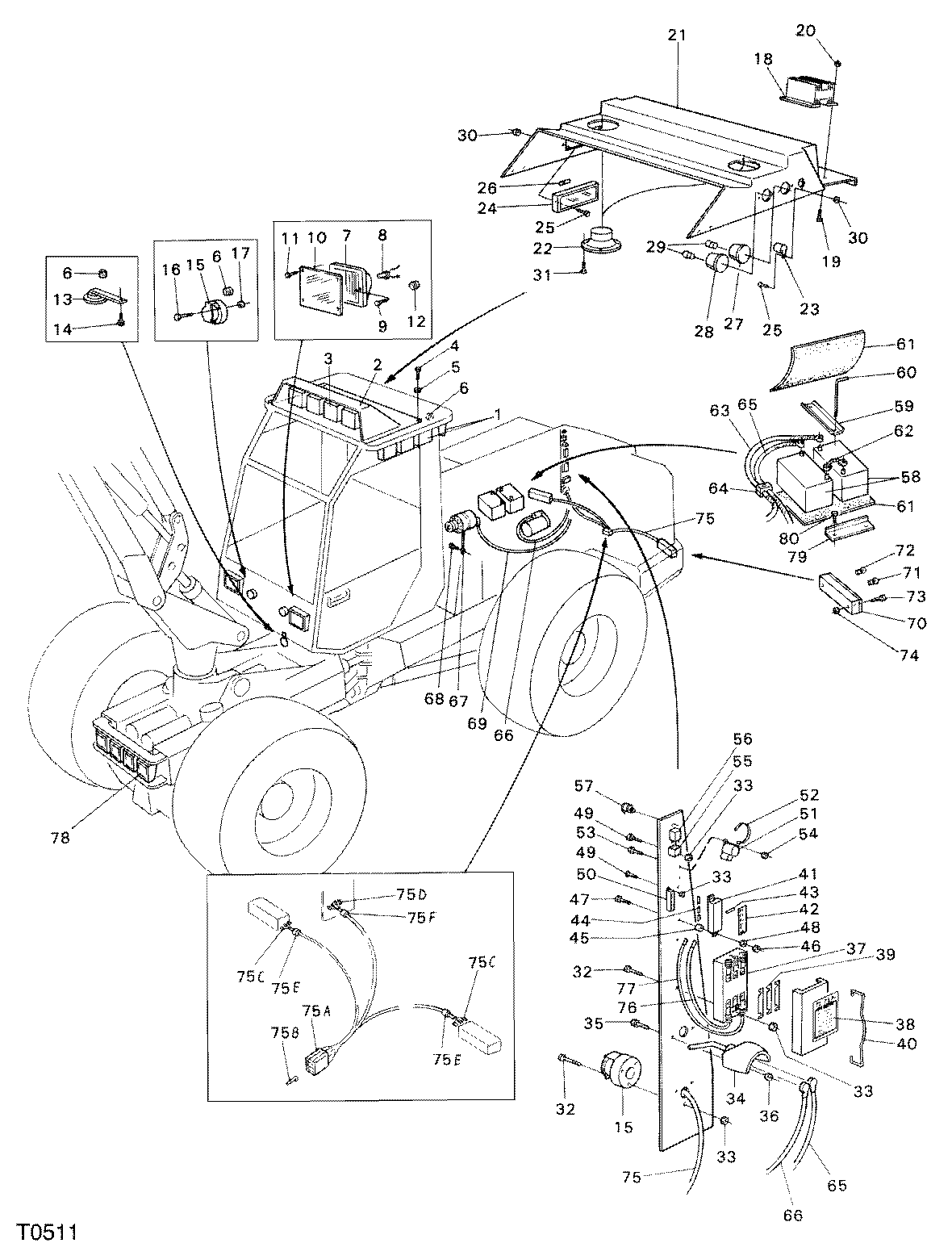

ELECTRICAL SYSTEM ELECTRICAL MOUNTING F044954 31 2 T0511 [T0511]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F018851	10	WORKING LIGHT	-
2	F009924	1	BALK	-
3	F001912	4	WORKING LIGHT	-
4	F003541	4	SCREW	-
5	F015376	4	WASHER	-
6	F015437	4	SLEEVE	-
7	F005516	2	HEADLIGHT	-
8	F005279	2	Bulb	-
9	F010720	4	SCREW	-
10	F015075	2	LAMP PROTECTION	-
11	F007788	8	SCREW	-
12	F018117	2	RUBBER BUSHING	-
13	F046824	1	BUZZER	-
14	F003522	1	SCREW	-
15	F005320	3	Socket	-
16	F003719	6	SCREW	-
17	F003585	6	LOCK NUT	-
18	F014864	1	TRANSFORMER	-
19	F017797	4	SCREW	-
20	F003584	4	LOCK NUT	-
21	F014722	1	ROOF	-
22	F015486	2	LOUDSPEAKER	-
23	F005313	1	Audible Warning Alarm	-
24	F003156	2	LIGHT	-
25	F003319	3	SCREW	-
26	F005274	2	BULB	-
27	F005200	1	LIGHT	-
28	F015472	1	REAR LIGHT	-
29	F015473	2	BULB	-
30	F003584	3	LOCK NUT	-
31	F015487	8	SCREW	-
32	F003324	5	SCREW	-
33	F003585	6	LOCK NUT	-
34	F005314	1	SWITCH	-
35	F003519	2	SCREW	-
36	F003586	2	LOCK NUT	-
37	F001899	1	FUSE BOX	-
38	F006618	1	DECAL	-
39	F013783	1	FUSE HOLDER	-
40	F018451	1	PLATE	-
41	F015011	1	FUSE HOLDER	-
42	F006617	1	DECAL	-
43	F001555	2	FUSE	-
44	F015013	3	Electrical Connector Assy	-
45	F019039	2	SPACER	-
46	F003584	2	LOCK NUT	-
47	F013131	2	SCREW	-
48	F015008	4	WASHER	-
49	F003391	2	SCREW	-
50	F016408	1	SLIDE PIN	-
51	F015009	1	CAPACITOR	-
52	F013747	1	Tie Band	-
53	F014996	2	SCREW	-
54	F003583	2	LOCK NUT	-
55	F015010	1	BRACKET	-
56	F005290	1	RELAY	-
57	F005317	1	SOCKET	-
58	F019081	2	BATTERY	-
59	F018621	1	STRAINING IRON	-
60	F018620	2	PULL ROD	-
61	F023944	2	PROTECTION	-
62	F014220	1	CABLE	-
63	F021048	1	CABLE	-
64	F018163	1	HOLDER PAIR	-
65	F021047	1	CABLE	-
66	F021046	1	CABLE	-
67	F006985	1	CABLE	-
68	F003530	1	SCREW	-
69	F023860	1	CABLE HARNESS	-
70	F017205	1	LIGHT	-
71	F005273	2	Bulb	-
72	F005275	4	BULB	-
73	F003401	4	SCREW	-
75	F023857	1	CABLE HARNESS	-
76	F021058	1	CABLE	-
77	F021059	1	CABLE	-
78	F028614	4	WORKING LIGHT	-
79	F031128	1	SUPPORT	-
80	F003524	2	SCREW	-
75A	F005265	1	Electrical Connector Assy	-
75B	F015352	5	Elec. Connector Terminal	-
75C	F008088	6	CABLE LUG	-
75D	F013852	5	SLEEVE	-
75E	F018086	2	CONDUIT ENTRY	-
75F	F001483	1	CONDUIT ENTRY	-
-	F017206	1	LIGHT	-
-	F031137	2	PROTECTION	-
-	F031135	2	PULL ROD	-
-	F031136	1	STRAINING IRON	-
-	F040502	2	BATTERY	-
-	F028395	2	FUSE	-
-	F005278	4	BULB	-
-	F005284	3	FUSE	-
-	F001556	1	FUSE	-
