Открытый узел

Water Pump And Pulley (Late Design)

Water Pump And Pulley (Late Design)

Water Pump And Pulley (Late Design)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

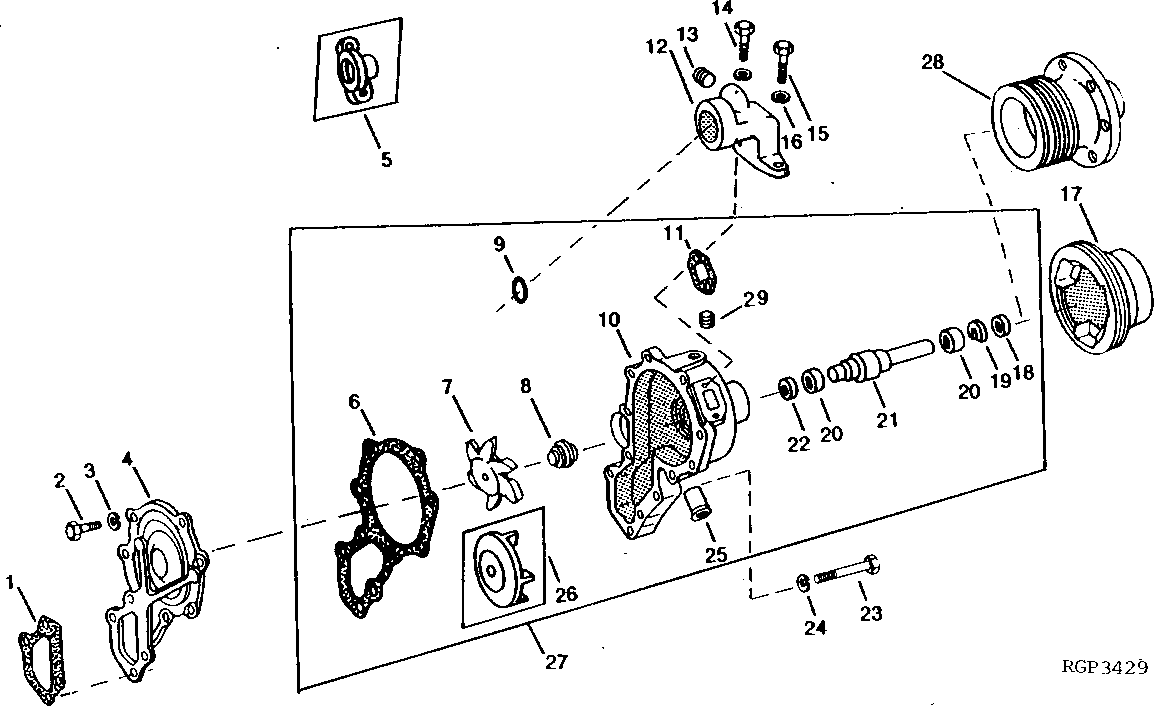

Water Pump And Pulley (Late Design)

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R49495	1	Gasket	-
2	19H1905	6	Cap Screw	5/16" X 1"
3	12H303	6	Lock Washer	5/16"
4	R67351	1	Cover	-
5	R75180	1	Elbow Fitting	(SUB R98247) (SUB FOR R67356)
6	R99785	1	Gasket	(SUB FOR R67352)
7	R84180	1	Impeller	(USE WITH RE13939, RE25181 OR RE31079)
8	RE20776	1	KIT	(SUB FOR AR101549, APPL)
9	R75190	2	O-Ring	(1.600 I.D. X .210), (USE WITH AR69051) (SUB RE68318)
9	T19687	2	O-Ring	(1.609 I.D. X .139), (USE WITH R67359)
10	R124059	1	Housing	-
10	R104709	1	Housing	(SUB FOR R74445 OR R86780) (SUB R124059, R98527 AND R98247)
10	R74445	1	Housing	(SUB R98247, R124059, RE12086, R98527 AND 15H665)
11	R67357	1	Gasket	-
12	R98247	1	Elbow Fitting	(SUB FOR R75180) (ALSO ORDER 15H665)
13	15H665	1	PIPE PLUG	3/4", (USE WITH R98247)
14	19H3552	1	Cap Screw	5/16" X 1-1/2"
15	19H1905	1	Cap Screw	5/16" X 1"
16	12H303	2	Lock Washer	5/16"
17	R77445	1	Pulley	10" O.D. (AR-08, 09)
17	R77446	1	Pulley	8 1/2" O.D. (AR-10, 13)
18	RE20768	1	Seal	(SUB FOR AR90861, APPL)
19	R62191	1	Snap Ring	1.70 MM (0.067"), (RED)
19	R62192	1	Snap Ring	1.90 MM (0.077"), (GREEN)
19	R62193	1	Snap Ring	2.20 MM (0.087"), (BLUE)
19	R62194	1	Snap Ring	2.50 MM (0.097"), (WHITE)
19	F2367R	1	SNAP RING	1.57 MM (0.062")
20	JD10329	2	Ball Bearing	(SUB FOR JD7686, APPL)
21	R82051	1	Shaft	(SUB FOR R74446)
22	RE20767	1	Seal	(SUB FOR AR90860, APPL)
23	19H2732	2	Cap Screw	3/8" X 2-3/4", (SUB FOR 19H1944)
24	12H304	4	Lock Washer	3/8"
25	R57503	1	Tube	(SUB FOR R67354)
26	R67353	1	Impeller	(SUB R84180, THIS APPLICATION)
27	RE42155	1	Hydraulic Cylinder Kit	(MARKED R74445, R86780, R104709 OR R124059) (SUB FOR RE11130, RE11134, RE13939, RE25181 OR RE31079) (SUB SE500897), (W/R82050)
27	SE500897	1	Water Pump Reman	REMAN FOR RE42155
28	-	1	Part 37	-
29	15H277	1	PIPE PLUG	1/2", (USE WITH RE42155)
..	AR70712	1	Fan	-
..	19H2284	6	Cap Screw	3/8" X 7/8"
..	RE12086	1	Belt Set	(MATCHED SET)
..	R98527	1	Filter	(USE WITH R124059)
