Открытый узел

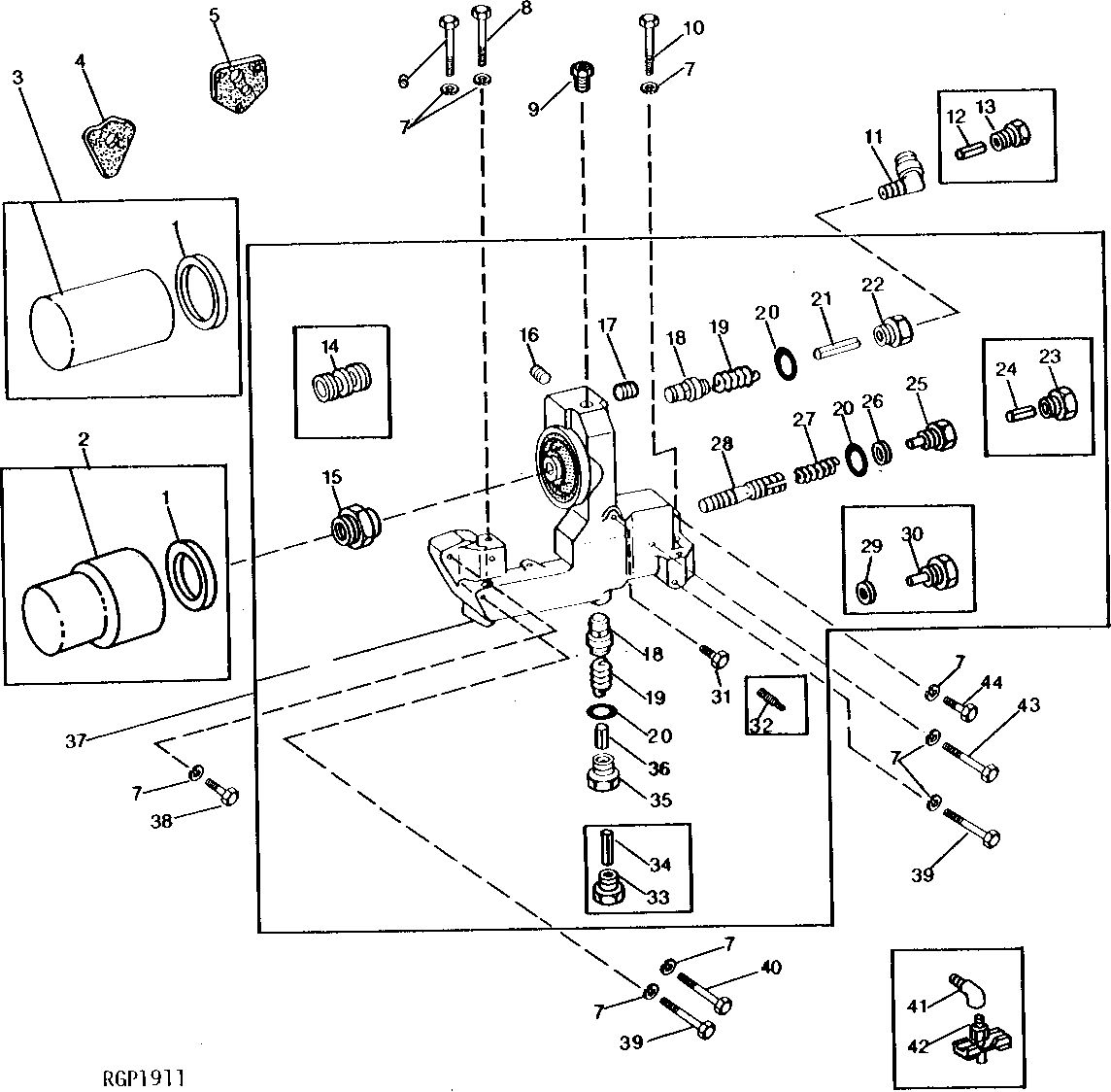

Oil Pressure Regulating Housing And Oil Filter

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R43660	1	Packing	(USE WITH AR43261, AR98329 OR RE57394)
2	AR101278	1	OIL FILTER	(MARKED AR98329) (SUB RE57394)
3	RE46380	1	Oil Filter	(MARKED RE46380) (SUB RE57394)
3	RE57394	1	Oil Filter	(MARKED RE57394 OR RE57399) (USE WITH R104621 OR R73913)
3	AR43634	1	OIL FILTER	(MARKED AR43261 OR AR43634) (USE WITH R43429)
4	R49485	1	Gasket	-
5	R49484	1	Gasket	-
6	19H2639	1	Cap Screw	3/8" X 3-3/8"
7	12H304	12	Lock Washer	3/8"
8	19H2345	1	Cap Screw	3/8" X 5-1/2"
9	15H607	1	Pipe Bushing	1/4"
10	19H1944	2	Cap Screw	3/8" X 2-3/4"
11	R67364	1	Elbow Fitting	-
12	34H313	1	Spring Pin	1/4" X 1-1/8"
13	R49465	1	DRAIN PLUG	-
14	R43429	1	FITTING	(1-1/2-16 UN), (USE WITH AR43261 OR AR43634)
15	R104621	1	Adapter Fitting	(1-1/2-12 UNF), (USE WITH AR98329, AR101278, RE43634, RE57394 OR RE57399) (SUB FOR R73913)
16	15H624	3	Pipe Plug	1/2", (SUB FOR AR72319)
17	15H690	5	Pipe Plug	3/4", (SUB FOR AR72318 OR 15H665)
18	R49464	2	VALVE	-
19	R26151	2	SPRING	-
20	U17409	3	O-Ring	-
21	34H366	1	SPRING PIN	1/2" X 1"
22	R67319	1	ADAPTER FITTING	-
23	R71483	1	DRAIN PLUG	(SUB AR105510, APPL)
24	34H393	1	PIN FASTENER	7/16" X 1-1/8"
25	AR105510	1	DRAIN PLUG	-
26	U40750	1	Washer	-
27	R43548	1	Spring	-
28	R77003	1	VALVE	(SUB FOR R43428)
29	R43424	1	WASHER	-
30	RE10834	1	DRAIN PLUG	(SUB FOR R43425)
31	R55233	1	Pipe Plug	-
31	R55233	2	Pipe Plug	-
32	R104592	1	Pipe Plug	-
33	R71483	1	DRAIN PLUG	(SUB R49465) (ALSO ORDER 34H313)
34	34H393	1	PIN FASTENER	7/16" X 1-1/8", (USE WITH R71483)
35	R49465	1	DRAIN PLUG	(SUB FOR R71483, APPL)
36	34H313	1	Spring Pin	1/4" X 1-1/8", (USE WITH R49465)
37	AR90475	1	HOUSING	(MARKED R48349 OR R68157) (SUB RE12770) (SUB FOR AR67461)
37	AR94082	1	HOUSING	(MARKED R71485) (SUB RE12770)
37	RE12770	1	KIT	(MARKED R71485)
38	19H1819	1	Cap Screw	3/8" X 2-1/8"
39	19H1854	2	Cap Screw	3/8" X 3-3/4"
40	19H2128	1	CAP SCREW	3/8" X 3"
41	15H613	1	ELBOW FITTING	1/4", (SUB R55233)
42	AT13740	1	Drain Valve	(SUB R55233)
43	19H2023	1	CAP SCREW	3/8" X 3-1/4"
44	19H3483	1	Cap Screw	3/8" X 1-1/8"

Oil Pressure Regulating Housing And Oil Filter
