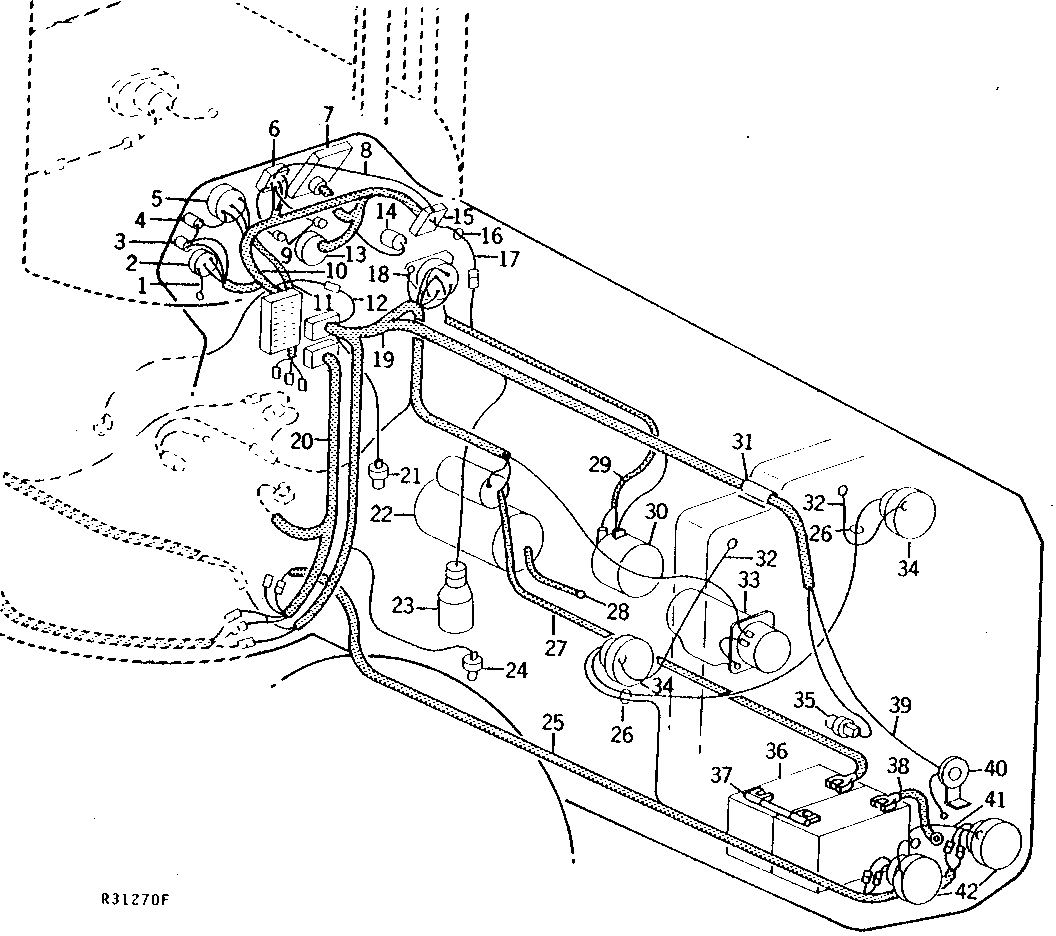

Front Wiring

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	152 MM (6"), MAKE FROM R66319, R65597, T28583, R32021 AND R32027
2	AR58126	1	Rotary Switch	IGNITION WITH KEYS
3	AR21823	1	SWITCH	HORN
4	AR56766	1	Housing	-
5	AR70111	1	Tachometer	-
6	RE591035	1	Switch	SUB FORAR64422 OR AR67398
7	AR73717	1	INSTRUMENT CLUSTER	SUB FOR AR58231 ORDER COMPONENT PARTS
8	AR67341	1	Wiring Lead	-
9	AR67340	2	WIRING HARNESS	-
10	AR67339	1	WIRING HARNESS	SUB AR78383 AND AR78385
10	AR78383	1	WIRING HARNESS	-
10	AR84130	1	WIRING HARNESS	-
10	R45211	1	Clamp	-
10	19H1849	2	Cap Screw	5/16" X 1-1/4"
10	24H1136	2	Washer	11/32" X 11/16" X 0.065"
10	14H785	2	Nut	5/16"
10	12H303	2	Lock Washer	5/16"
11	AR84131	1	WIRING HARNESS	-
12	AR70114	1	Wiring Lead	-
13	AR48724	1	Rotary Switch	LIGHT
13	AR83425	1	Elec. Connector Housing	-
14	R39554	1	Switch	STARTING AID, SUB FOR AR46184
15	-	1	Part 23	-
16	R41440	1	Grommet	-
17	AR56213	1	WIRING LEAD	-
18	RE170320	1	Starter Relay	SUB FOR RE38391
19	RE42410	1	Wiring Harness	SUB FOR AR68953
20	AR70248	1	Wiring Harness	-
20	AR85853	1	Wiring Harness	-
21	AR58233	1	ENGINE COOLANT TEMP SENDER	SUB AT37368
21	14H631	1	Nut	0.190"
21	12M7060	1	Washer	5.300 mm
22	-	1	Part 33	-
23	RE48310	1	Starting Aid Solenoid	SUB FOR AT39623
24	RE15583	1	Engine Oil Pressure Sender	SUB FOR AR58234
25	AR70247	1	Wiring Harness	-
25	AR85852	1	Wiring Harness	-
25	T28585	4	Electrical Connector Assy	-
26	R1134R	2	Eyelet	-
27	AR88485	1	Battery Cable	POSITIVE, SUB FOR AR53096
28	AR67069	1	Ground Cable	STARTER GROUND
29	AR60939	1	Wiring Harness	-
30	-	1	Part 43	-
30	R30964	1	Cover	-
31	R50968	1	Conduit	-
32	AR89217	2	Wiring Lead	SUB FOR AR85856
33	SE503047	1	Compressor Reman	REMAN FOR TY6770; SUB FOR SE501457
33	TY6770	1	COMPRESSOR	R134A, NLA ORDER SE503047
33	TY6665	1	COMPRESSOR	SUB FOR AR77343 OR AR92100 R12, NLA ORDER SE501456
33	AR77343	1	COMPRESSOR	SUB FOR AR68802 SUB TY6665 R12
33	SE501456	1	COMPRESSOR	REMAN FOR TY6665
34	RE63228	4	Headlight	HOBBS OR GUIDE LAMP, SUB FOR AR72386
34	RE19075	2	Floodlamp	SUB FOR AR85858, THIS APPLICATION
35	AR50489	1	SWITCH	VACUUM INDICATOR
36	TY21734	2	DRY CHARGED BATTERY	6-VOLT , 975 COLD CRANKING AMPS AT 0°F, ORDER TY21734A, SUB FOR AT37931 OR TY6104)
36	TY21734B	2	Wet Charged Battery	SUB FOR TY21734A
37	RE21742	1	Battery Cable	SUB FOR AR46231
38	AR45975	1	Battery Cable	GROUND
39	AR73580	1	WIRING HARNESS	HORN, SUB FOR AR49038
40	AL14896	1	HORN	12-VOLT , SUB FOR AR49036 OR AR73579 SUB RE159897, R75833, R11278, 19M7139, 24M7055, 12H291 AND 14M7273
40	AR102454	1	Horn	ORDER COMPONENT PARTS
40	AL203265	1	Horn	SUB FOR AL114614 OR RE159897
41	AR84132	1	Wiring Harness	-
42	AR48721	2	HEADLIGHT	-
42	RE25126	1	Dual Beam Headlamp	RH, DUAL BEAM, SUB FOR AR85257 OR RE19081
42	RE25127	1	Dual Beam Headlamp	LH, DUAL BEAM, SUB FOR AR85257 OR RE19082
..	AT66865	1	Lubricant	454 G, 16 OZ , SUB FOR AR94760
