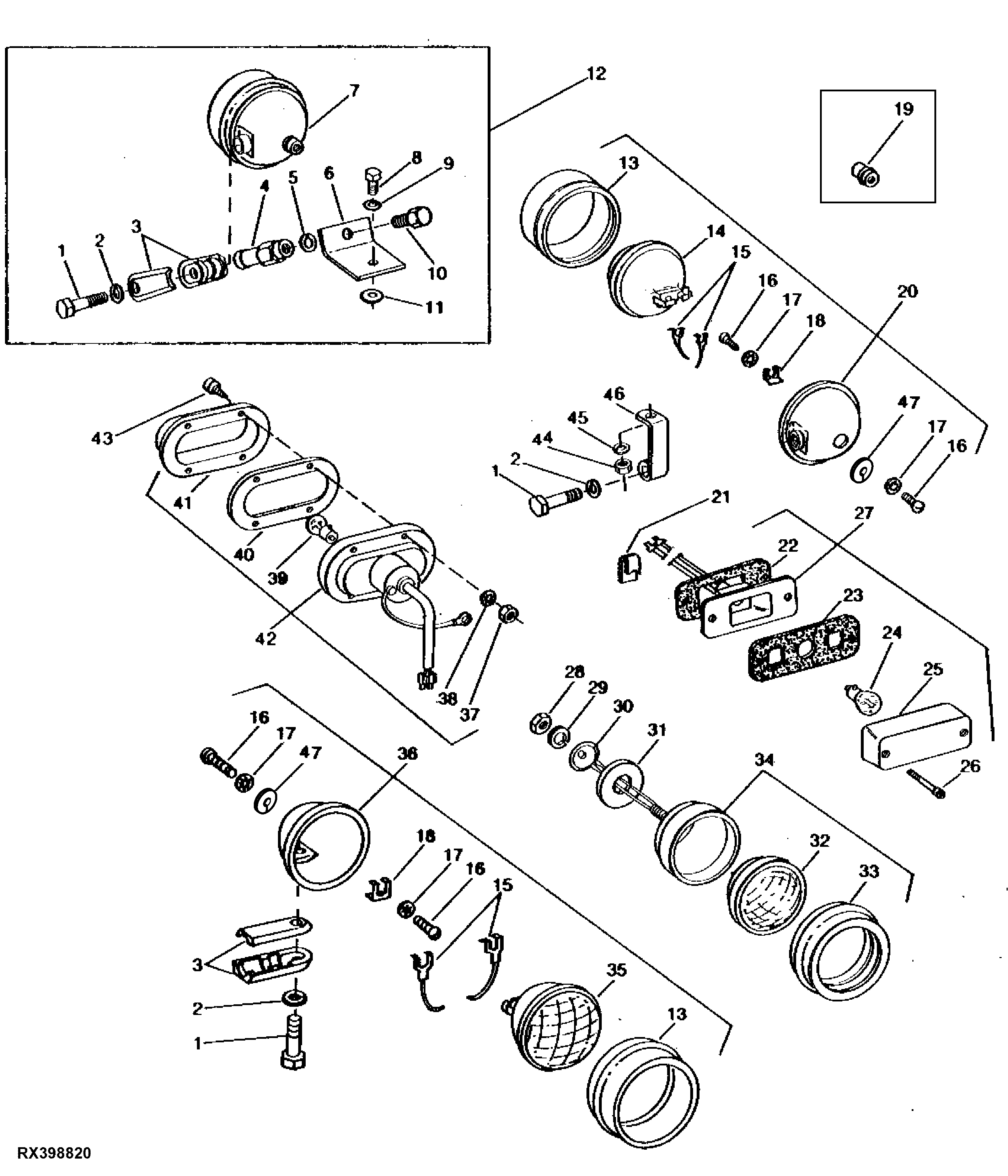

Front And Rear Lamps And Brackets

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2644	5	Cap Screw	1/2" X 2-1/2"
2	12H301	3	Lock Washer	1/2"
2	12H292	2	Lock Washer	1/2"
3	R27460	6	ELEC. CONNECTOR ACCESSORY	-
4	R54778	1	NUT	-
5	12H301	1	Lock Washer	1/2"
6	R58327	1	Bracket	NLA
7	RE63228	1	Headlight	(12-VOLT) SUB FOR AR72386
8	19H1136	1	CAP SCREW	7/16" X 1-1/8"
9	12H304	1	Lock Washer	3/8"
10	19H1792	1	Cap Screw	1/2" X 1"
11	24H1309	1	Washer	13/32" X 1-1/16" X 0.120"
12	AR70919	1	Lamp	NLA
13	R42689	5	Bezel	HOBBS
13	R48293	5	Bezel	GUIDE
13	R71233	5	BEZEL	MIDWEST
14	RE336112	1	Floodlamp	SUB FOR RE285629; LED LAMP, TRAPEZOID FLOOD PATTERN
14	AR104119	2	Headlight	50 WATTS, HALOGEN; USE WITH RE19075
14	RE561117	1	Floodlamp	SUB FOR RE336112
14	RE336111	1	Floodlamp	SUB FOR RE285628; LED LAMP, FLOOD PATTERN
14	RE561116	1	Floodlamp	SUB FOR RE336111
14	AF3892R	2	Bulb	(12-VOLT) 35 WATTS, USE WITH AR72386, AR85859 OR RE63228
15	-	5	Part 23	165 mm (6-1/2"), MAKE FROM R66319 AND (2) R32016
16	21H1293	10	SCREW	0.164" X 5/16"
17	12M7084	10	Lock Washer	4.300 mm
18	A2899R	5	SPRING	-
19	R30181	5	PLATE	ORDER R1134R; HOBBS
20	RE63228	2	Headlight	(12-VOLT) SUB FOR AR72386
20	RE19075	2	Floodlamp	(12-VOLT) SUB FOR AR85859
21	R99350	8	Nut	SUB FOR R53528; THIS APPLICATION
22	R54782	4	Gasket	-
23	R61179	4	Gasket	-
24	AD2062R	4	Bulb	-
25	R54779	4	Lens	-
26	R54781	8	Screw	-
27	AR60250	4	Lamp	-
28	14H1040	2	Nut	1/2"
29	12H301	2	Lock Washer	1/2"
30	F2935R	2	WASHER	-
31	R48663	2	WASHER	-
32	RE25125	2	Dual Beam Headlamp	(12-VOLT DUAL BEAM) SUB FOR AR48723 OR AR93335
33	R30182	2	BEZEL	HOBBS
33	R31250	2	BEZEL	GUIDE
33	R71232	2	Bezel	MIDWEST
34	AR48721	2	HEADLIGHT	(12-VOLT DUAL BEAM) SUB RE25126; THIS APPLICATION OR RE25127
34	RE25126	1	Dual Beam Headlamp	(12-VOLT DUAL BEAM) RH; SUB FOR AR85257 OR RE19081
34	RE25127	1	Dual Beam Headlamp	(12-VOLT DUAL BEAM) LH; SUB FOR AR85257 OR RE19082
35	RE336111	1	Floodlamp	SUB FOR RE285628; LED LAMP, FLOOD PATTERN
35	RE336112	1	Floodlamp	SUB FOR RE285629; LED LAMP, TRAPEZOID FLOOD PATTERN
35	AR104119	2	Headlight	50 WATTS, HALOGEN; USE WITH RE19075; SUB FOR AT25451
35	AF3892R	2	Bulb	(12-VOLT) 60 WATTS, USE WITH AR72386, AR85259 OR RE63228
36	RE63228	2	Headlight	SUB FOR AR72386
36	RE19075	2	Floodlamp	SUB FOR AR85259
37	14H605	2	Nut	0.164"
38	12M7084	2	Lock Washer	4.300 mm
39	AR48041	2	Bulb	(12-VOLT)
40	R45937	2	Gasket	-
41	R45936	2	Lens	-
42	AR78825	2	Tail Lamp	SUB FOR AR45099
43	R55933	8	Screw	-
44	14H1040	2	Nut	1/2"
45	12H292	2	Lock Washer	1/2"
46	R59160	2	BRACKET	-
47	R1134R	1	Eyelet	-
..	AR73181	2	Wiring Lead	-
