Engine Oil Pump (Early Design-Crankshaft Driven)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R62930	2	Bushing	-
2	T21242	1	Washer	-
3	14H826	1	Nut	1/2", (SUB FOR R79187)
4	R57696	4	Washer	-
5	19H3219	2	Cap Screw	3/8" X 1-3/8"
6	19H2549	2	Cap Screw	3/8" X 1-7/8"
7	R62938	1	Gear	-
8	-	1	Part 8	(NLR)
9	12H303	3	Lock Washer	5/16"
9	-	2	Part 10	(NLR)
10	-	2	Part 11	(NLR)
11	22H1040	1	Set Screw	5/16" X 1-1/4"
12	14H785	1	Nut	5/16"
13	R70475	1	GASKET	-
14	AR77711	1	OIL PUMP INTAKE	-
15	19H2127	3	Cap Screw	5/16" X 7/8"
16	19H2733	2	Cap Screw	3/8" X 2-3/8"
17	M72490	5	Washer	(SUB FOR R70234 AND R42729)
18	19H1765	3	Cap Screw	3/8" X 1-3/4"
19	R71732	2	O-Ring	-
20	R62947	1	Tube	-
21	R62948	1	ELBOW FITTING	-
22	19H3483	3	Cap Screw	3/8" X 1-1/8"
23	M72490	3	Washer	(SUB FOR R70234 AND R42729)
24	R69418	1	GASKET	-
25	AR99339	1	Oil Pump	(MARKED R62946) (SUB FOR AR94478) (SUB RE60622 AND RE60820)
25	RE60622	1	Oil Pump	(MARKED R124328 OR R62946)
25	SE501063	1	Oil Pump Reman	MARKED R124328 OR R62946; REMAN FOR RE60622 OR RE44118

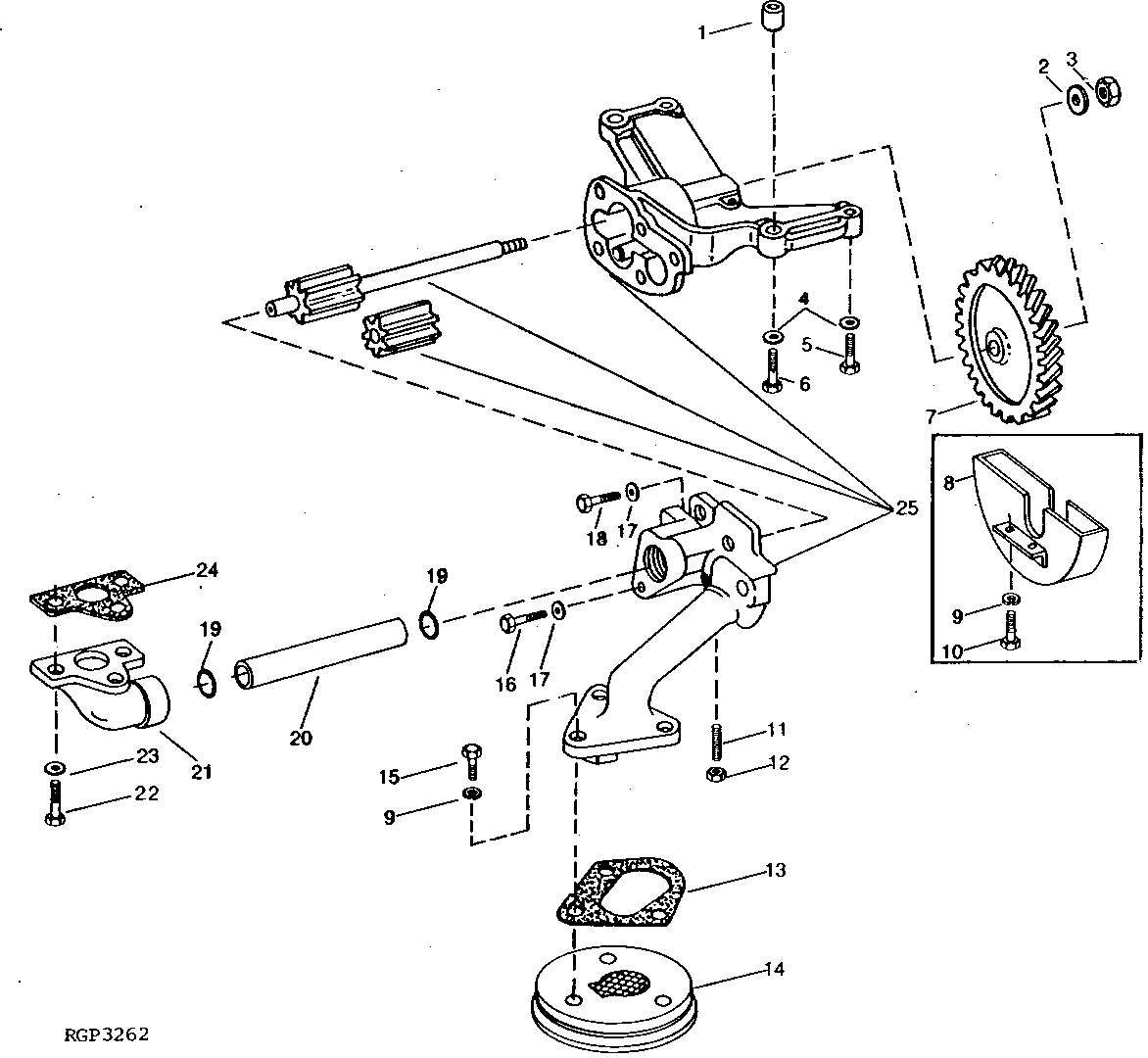

Engine Oil Pump (Early Design-Crankshaft Driven)

Нет текстового описания
