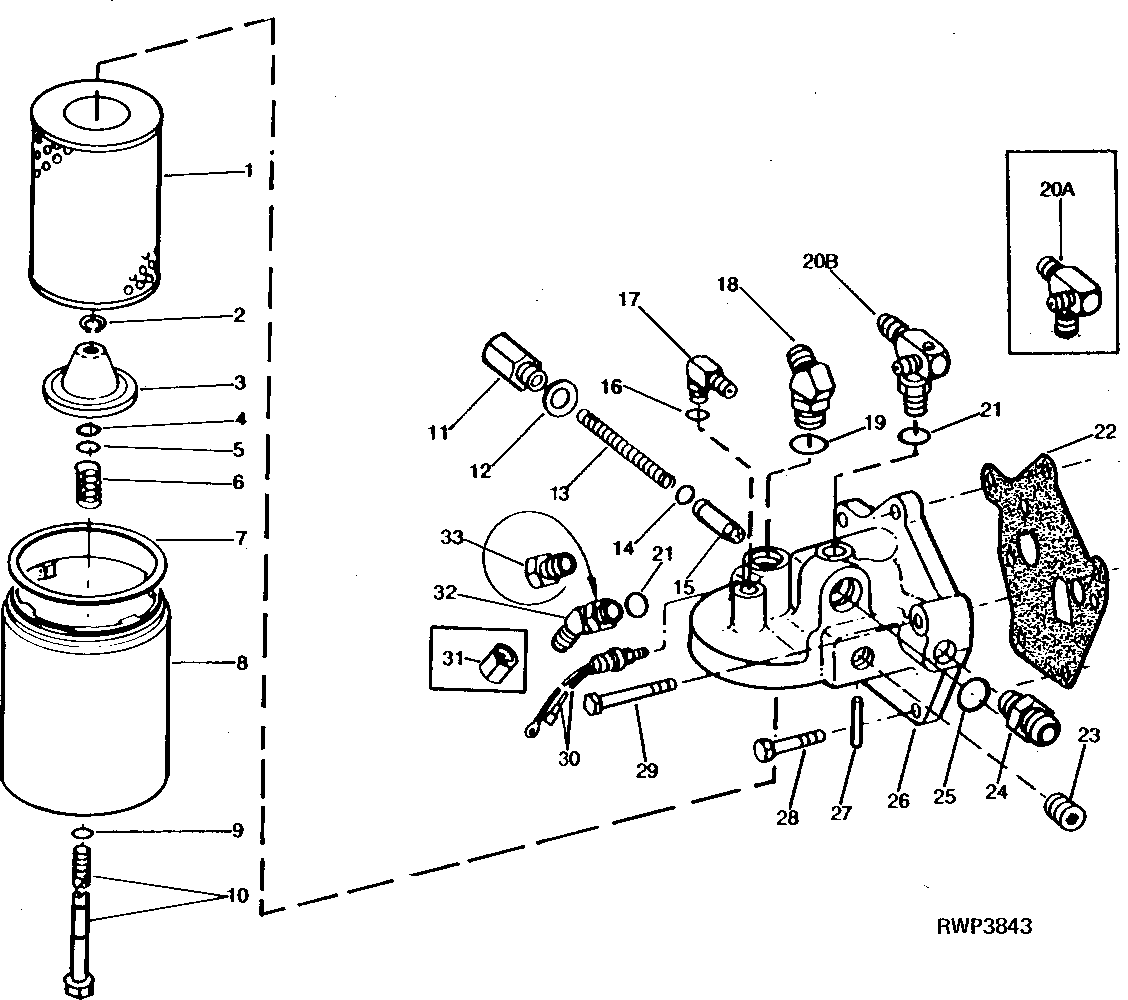

Clutch Oil Filter Relief Valve Housing

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR94510	1	Filter Element	(SUB FOR AR70636)
1	AR75603	1	FILTER ELEMENT	(SUB FOR AR28271, AT34670 OR AR75601)
2	R32507	1	Snap Ring	-
3	R28593	1	RETAINER	(SUB R65892 AND F2741R)
3	R65892	1	RETAINER	-
4	R394R	1	O-Ring	-
4	F2741R	1	Packing	-
5	24H1227	1	Washer	17/32" X 13/16" X 0.060"
6	H819R	1	SPRING	-
6	R66064	1	SPRING	-
7	R34733	1	WASHER	-
8	R51654	1	COVER	-
8	R65901	1	Cover	-
8	R63093	1	COVER	-
9	R394R	1	O-Ring	-
10	R82731	1	SCREW	1/2" X 7-1/2", HS=10.9, SAE 8, (SUB FOR R54753)
10	R65904	1	Screw	1/2" X 10"
11	R51577	1	FITTING PLUG	-
12	R1742R	1	WASHER	-
13	R51574	1	SPRING	-
14	R33259	1	O-Ring	-
15	R65650	1	Valve	(USE WITH R65649)
15	R57560	1	VALVE	(USE WITH R57153 OR R62444)
16	R26448	1	O-Ring	-
17	AT35121	1	Elbow Fitting	90°
18	AR28251	1	ELBOW FITTING	45°, (SUB AT48506)
19	F3171R	1	O-Ring	-
21	R26375	2	O-Ring	-
22	R57154	1	Gasket	-
23	15H624	1	Pipe Plug	1/2", (USE WITH R65649)
24	R30935	1	Adapter Fitting	-
25	R29463	1	O-Ring	-
26	AR70414	1	Housing	MARKED R57153; ORDER R65649, R65650, R28776 AND RE57836
26	R62444	1	Housing	ORDER R65649, R65650, R28776 AND RE57836
26	R65649	1	Housing	-
27	R55081	1	Needle Roller	(SUB FOR R36882)
28	R41920	4	Cap Screw	-
29	19H1944	1	Cap Screw	3/8" X 2-3/4"
30	AR61969	1	SENSOR	-
31	R31736	1	Fitting	ORDER R39112; Less PTO
32	AR26745	1	ELBOW FITTING	45°, (PTO)
33	R39112	1	Fitting	Less PTO
..	AR85307	1	Kit	(FURNISH COMPONENTS) 10-MICRON, FILTER
20A	AR32665	1	Tee Fitting	-
20B	AR84178	1	Tee Fitting	-

Clutch Oil Filter Relief Valve Housing
