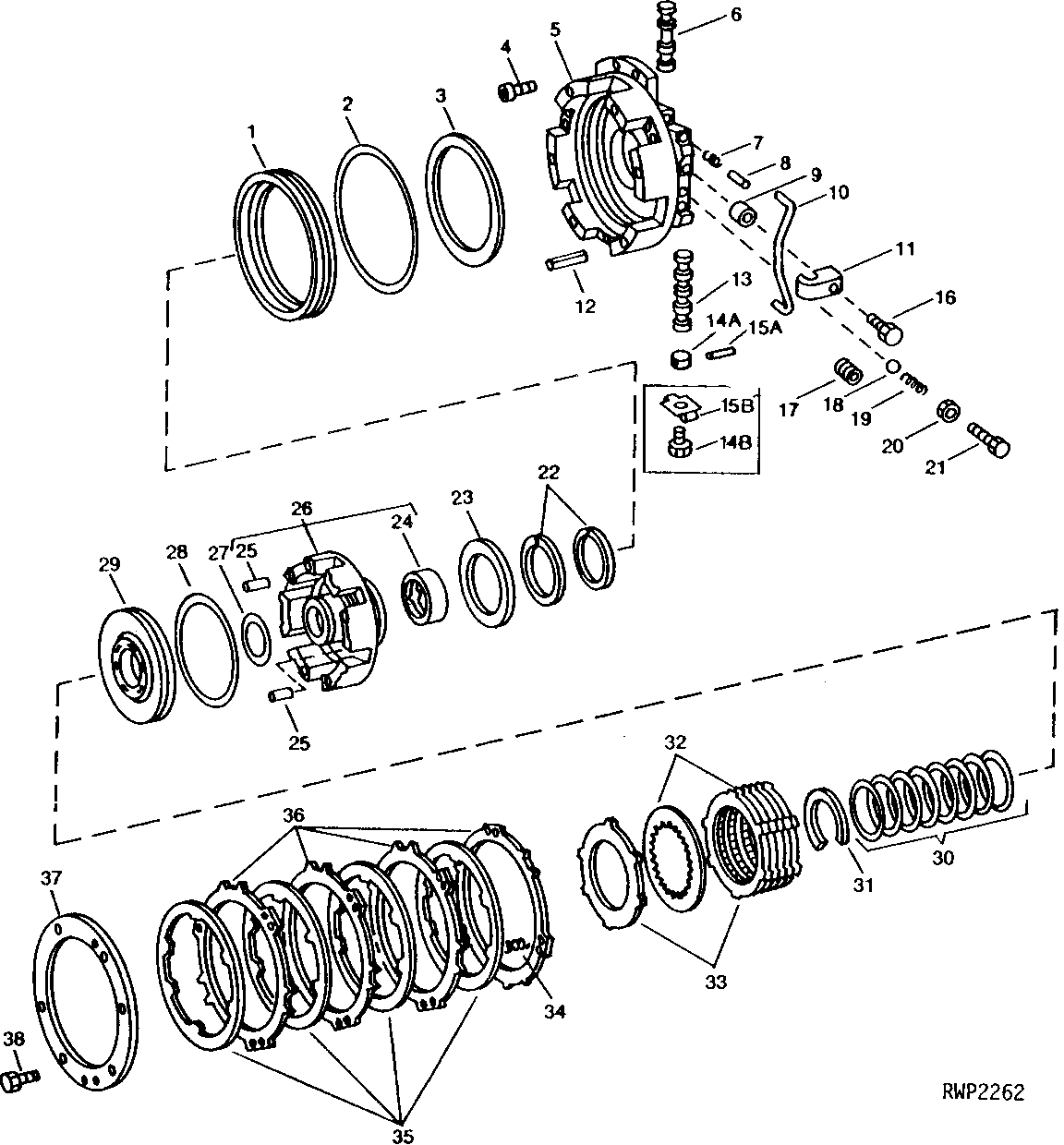

Brake Piston Housing And Clutch Drum

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R79831	1	Piston	SUB FOR R59165
2	R59137	1	Washer	-
3	R57558	1	Packing	-
4	R57047	5	Cap Screw	-
5	AR82371	1	Housing	MARKED R62831, R65223 OR R65228 SUB FOR AR79580SUB AR91836, R53050 AND 34H249
5	AR91836	1	Housing	MARKED R70244
6	R65229	1	Control Valve	SUB FOR R62840
7	R62842	1	Spring	-
8	R67315	1	Pin	SUB FOR R62843
9	28H1519	1	Washer	0.493" X 0.675" X 3/8", 3/8" X 3/8"
9	28H1518	1	Washer	0.493" X 0.675" X 5/16", 3/8" X 5/16"
10	R55234	1	TUBE	SUB R78265, R60524, R112876 AND 28H1518
10	R67307	1	Tube	-
11	R42357	2	CLAMP	-
11	24H1305	1	Washer	13/32" X 13/16" X 0.065"
11	R60524	1	Clamp	-
12	34H188	6	Spring Pin	5/16" X 1-3/4"
13	R62841	1	Valve	-
16	R112876	1	Cap Screw	SUB FOR R40808
16	R41041	1	CAP SCREW	-
17	R21629	1	PIPE PLUG	-
17	15H558	1	Pipe Plug	1/8"
18	400R	1	Ball	6 MM (1/4")
19	R64230	1	Spring	-
19	R65230	1	Spring	-
20	14H785	1	Nut	5/16"
21	R65231	1	Screw	-
22	R39322	2	Ring	-
23	R50349	1	Washer	-
24	R50222	1	Bushing	-
25	R38295	3	Needle Roller	-
26	AR68324	1	Drum	MARKED R57044
27	R39304	1	Washer	-
28	R57046	1	Washer	-
29	R57045	1	Piston	-
30	R50348	8	Disk Spring	-
31	R39299	1	Snap Ring	-
32	AR71561	7	DISK WITH INNER SPLINE	SUB RE29816
33	R39259	8	CLUTCH PLATE	-
34	R50604	6	Spring	-
35	RE29815	4	Disk	SUB FOR AR71560
36	R50152	4	Plate	-
37	R50153	1	PLATE	-
38	R30165	6	Cap Screw	-
14A	34H249	1	Spring Pin	1/8" X 7/8", USE WITH R70244
14B	R36526	1	FITTING	USE WITH R62831, R65223 OR R65228 NLA
15A	R53050	1	PIN FASTENER	USE WITH R70244
15B	R35355	1	PLATE	USE WITH R62831, R65223 OR R65228

Brake Piston Housing And Clutch Drum
