Alternator With Regulator And Mounting Bracket

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR84306	1	ALTERNATOR	(72 AMP), (DELCO-REMY NO. 1102932) (SUB RE31694, 14M7165, 12M7006, 12M7065, 19M7163 OR TY6790)
1	RE13797	1	Alternator	(72 AMP), (DELCO-REMY NO. 1105175) (SUB RE31694 OR TY6790)
1	RE27109	1	Alternator	(78 AMP), (DELCO-REMY NO. 1101268) (SUB RE31694)
1	RE31694	1	Alternator	(78 AMP), (DELCO-REMY NO. 1101345) (SUB FOR AR54793, AR84306, AR93446, RE13797 OR RE27109) (ALSO ORDER 12M7006, 12M7065, 14M7165 AND 19M7163)
1	TY6772	1	ALTERNATOR	(72 AMP), (SUB FOR AR54793 OR TY6600)
1	TY6790	1	ALTERNATOR	(72 AMP), (SUB FOR AR84306, AR93446, RE31694 OR TY6625)
1	TY6686	1	Alternator	(78 AMP)
1	SE501382	1	Alternator Reman	(REMAN FOR TY6772 OR AR54793)
1	SE501386	1	ALTERNATOR	(REMAN FOR TY6790)
1	AR54793	1	Alternator	(72 AMP), (DELCO-REMY NO. 1100490) (SUB RE31694, 14M7165, 12M7006, 12M7065, 19M7163 OR TY6772)
2	R51649	1	Bearing Race	-
3	24H1292	1	Washer	11/32" X 3/4" X 0.120"
4	12H303	1	Lock Washer	5/16"
5	19H1900	1	Cap Screw	5/16" X 3/4"
6	R50659	1	Fan	-
6	R87764	1	Fan	(USE WITH RE31694)
7	R50662	1	Pulley	-
8	R11049	1	Nut	-
9	T10745	1	Washer	-
10	AR86496	1	Belt Set	(ENGINE SERIAL NUMBER) (SUB FOR AR70413)
10	RE12086	1	Belt Set	(ENGINE SERIAL NUMBER)
11	R55223	1	Shield	-
12	19H1854	1	Cap Screw	3/8" X 3-3/4", ORDER 19H2023
12	19H2023	1	CAP SCREW	3/8" X 3-1/4"
13	R45377	1	SPACER	SUB FOR AR53450
14	12H304	1	Lock Washer	3/8"
15	14H1076	1	Nut	3/8"

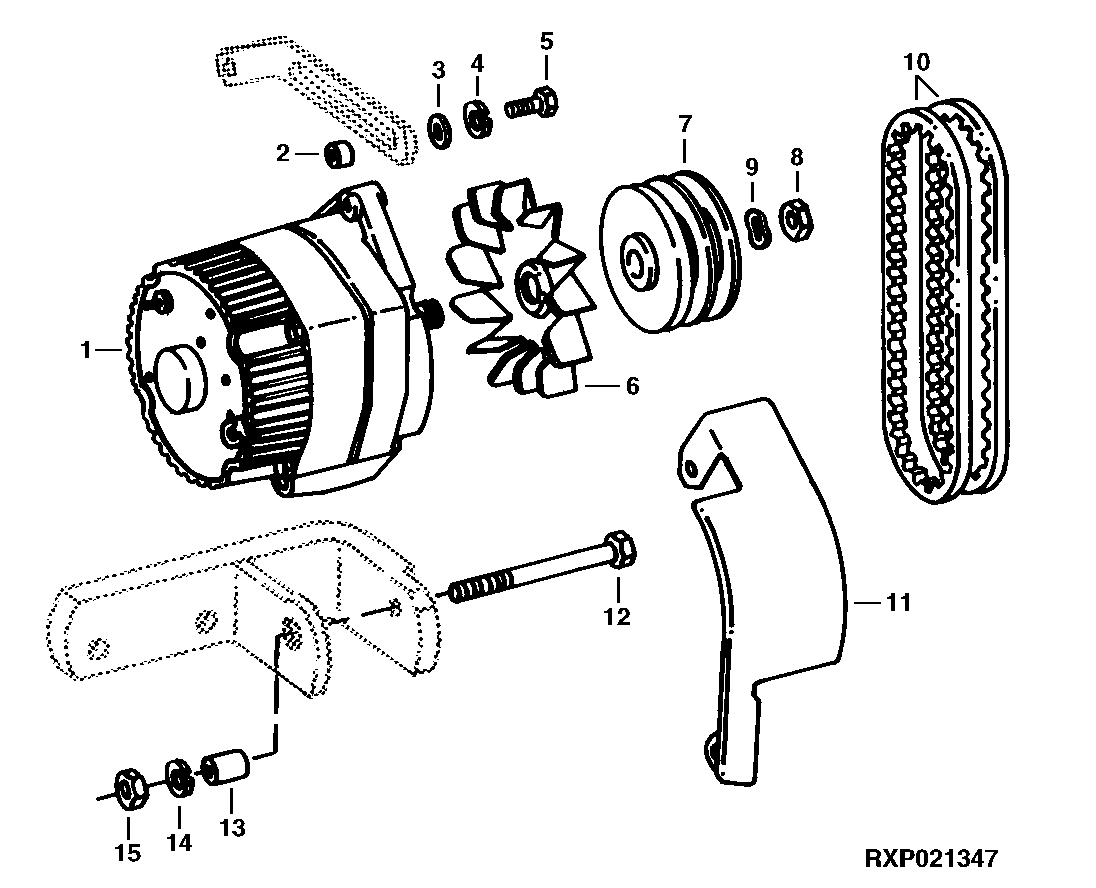

Alternator With Regulator And Mounting Bracket
