Открытый узел

Pilot Lines (Control Valve, Swing Motor, Pump, Filter)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	4670606	1	Hydraulic Hose	-
1	A852344	1	Elbow Fitting	-
1	4506418	1	O-Ring	-
2	A852244	1	Elbow Fitting	-
2	4506418	1	O-Ring	-
4	4694786	1	Hydraulic Hose	-
7	A852122	1	Adapter Fitting	-
7	M800650	1	Packing	SUB FOR 957366
9	4154670	1	Elbow Fitting	SUB FOR A852322
9	M800650	1	Packing	-
10	4670602	1	Hydraulic Hose	SUB FOR 957366
11	A852122	2	Adapter Fitting	-
11	M800650	1	Packing	SUB FOR 957366
12	A852133	1	Adapter Fitting	-
12	4297380	1	O-Ring	SUB FOR 4622346, 4509180 AND 4674883
16	A852343	1	Elbow Fitting	-
16	4506418	1	O-Ring	-
18	4687036	1	Hydraulic Hose	-
19	4672921	1	Hydraulic Hose	-
20	4154670	2	Elbow Fitting	SUB FOR A852322
20	M800650	1	Packing	SUB FOR 957366
23	4670604	1	Hydraulic Hose	-
24	A852122	2	Adapter Fitting	-
24	M800650	1	Packing	SUB FOR 957366
28	A852122	2	Adapter Fitting	-
28	M800650	1	Packing	SUB FOR 957366
29	4678308	1	Hydraulic Hose	-
31	8109054	1	Bracket	-
33	24M7346	2	Washer	11 X 20 X 2 mm, SUB FOR J222010
33	-	2	Part 29	J271030 NLA
33	19M7662	2	Cap Screw	M10 X 30, SUB FOR J901030
35	4629717	1	Filter	Components On Separate Page, ALSO ORDER 9228867
35	4630525	1	Filter Element	-
36	-	2	Part 34	J271000 NLA
36	19M8093	2	Cap Screw	M10 X 100, SUB FOR J901000
36	24M7346	2	Washer	11 X 20 X 2 mm, SUB FOR J222010
37	A852143	1	Adapter Fitting	-
37	4506418	1	O-Ring	-
40	-	2	Part 39	J271065 NLA
40	19M7742	2	Cap Screw	M10 X 65, SUB FOR J901065
40	24M7346	2	Washer	11 X 20 X 2 mm, SUB FOR J222010
42	4154670	1	Elbow Fitting	SUB FOR A852322
42	M800650	1	Packing	SUB FOR 957366
44	M800650	1	Packing	SUB FOR 957366
44	A852222	1	Union Fitting	-
46	XCL-29	1	Hose Clamp	SUB FOR 4190291
47	-	2	Part 47	J271020 NLA
47	19M7938	2	Cap Screw	M10 X 20, SUB FOR J901020
47	24M7346	2	Washer	11 X 20 X 2 mm, SUB FOR J222010
50	H77698	5	Tie Band	SUB FOR 4055312
56	4190261	3	Clip	-
59	-	2	Part 52	J271020 NLA
59	19M7938	2	Cap Screw	M10 X 20, SUB FOR J901020
59	24M7346	2	Washer	11 X 20 X 2 mm, SUB FOR J222010
60	24M7028	2	Washer	10.500 X 20 X 2 mm, SUB FOR A590110
80	9274312	1	Solenoid Valve	-
90	9228867	1	Shim	Pilot Pressure Regulating Valve Shim Kit Not Included With Filter Not Illustrated, INCLUDES 4606473, 4487297, 4601120, SUB FOR 4293211
90	4606473	2	Shim	SUB FOR 4309836
90	4487297	2	Shim	SUB FOR 4309837
90	4601120	2	Shim	SUB FOR 4309838

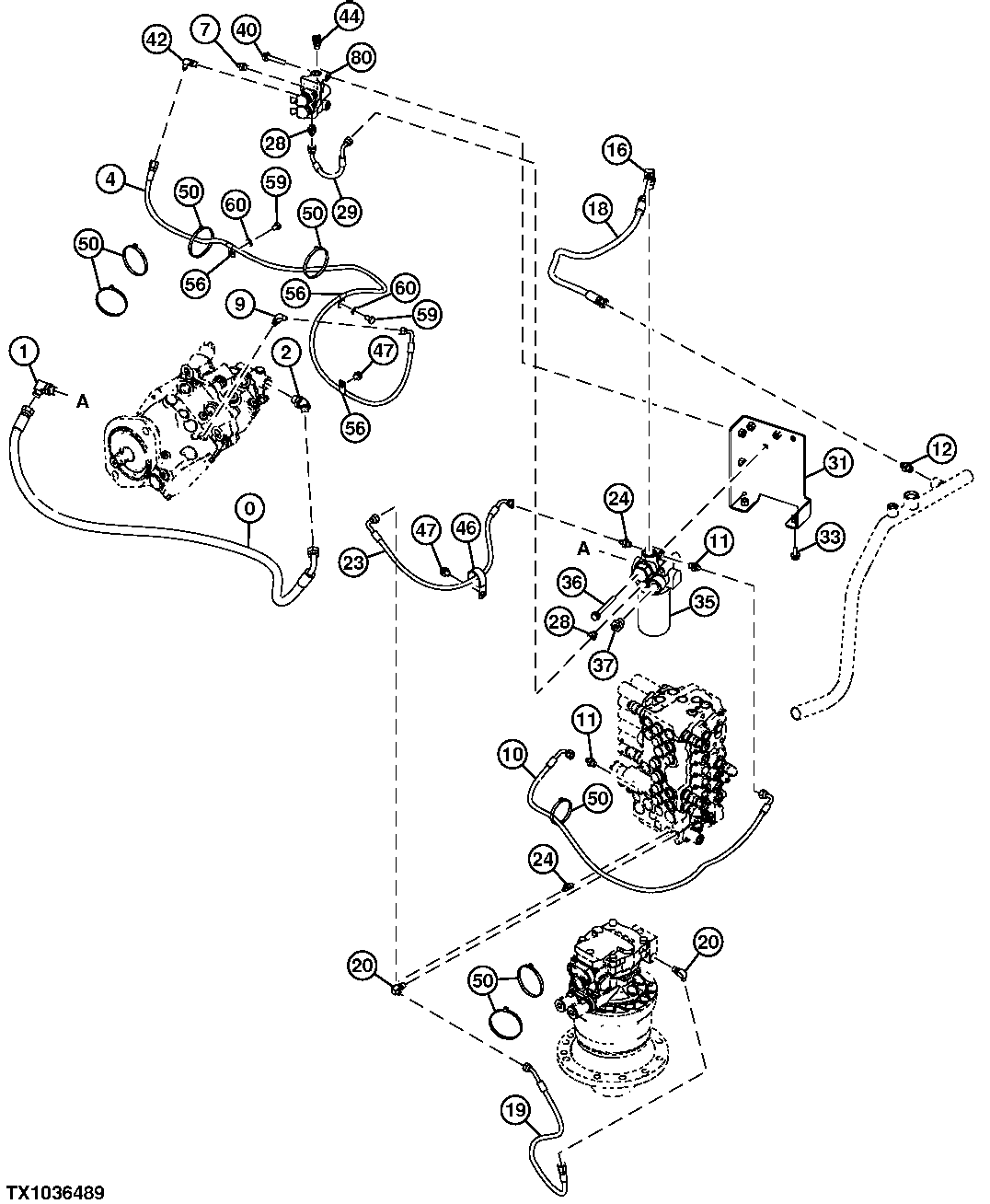

Pilot Lines (Control Valve, Swing Motor, Pump, Filter)
