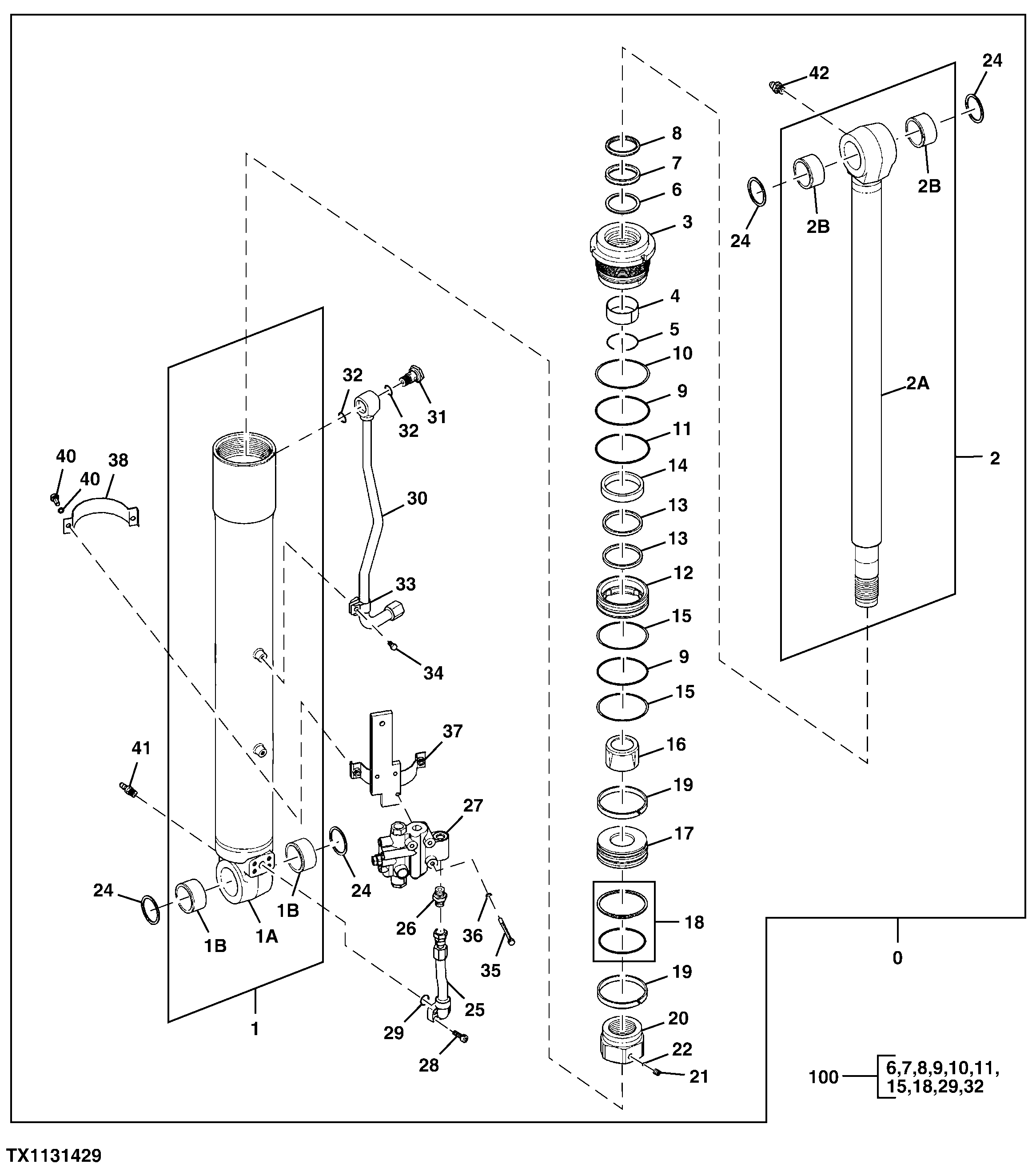

Boom Cylinder Components With Holding Valve

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	-	1	Part 2	4690233 AND 4690233G NLA
0	-	1	Part 1	9294891 AND 9294891G NLA
1	0826801	1	Hydraulic Cylinder Barrel	-
2	0826803J	1	Hydraulic Cylinder Rod	SUB FOR 0826803
3	0826805J	1	Hydraulic Cylinder Cap	SUB FOR 0826805
4	AT264389	1	Wear Ring	SUB FOR 0310604
5	4510494	1	Snap Ring	-
6	0790008	1	Ring	-
7	0790009	1	Packing	-
8	H158164	1	Scraper Ring	SUB FOR 0409117
9	AT264320	2	O-Ring	SUB FOR A811110
10	0826806	1	Back-Up Ring	-
11	CH13522	1	Packing	SUB FOR A810115
12	0826807	1	Holder	-
13	0826808	2	Seal	-
14	0826809	1	Bushing	-
15	TH109353	2	Back-Up Ring	SUB FOR 0310904
16	1188001	1	Bearing	-
17	0826811	1	Piston	-
18	TH105767	1	Ring	SUB FOR 0225614
19	H163432	2	Ring	SUB FOR 0686405
20	0789307	1	Nut	-
21	22M6684	1	Set Screw	M12 X 12, SUB FOR 0309011
22	T13624	1	Ball	SUB FOR 0111707
24	FXB00015614	4	Seal	SUB FOR 0159413 AND 4117954
25	4711155	1	Pipe	SUB FOR 1190001
26	0824207	1	Threaded Nipple	-
27	4689159	1	Hydraulic Pressure Valve	-
28	19M8439	4	Screw	M8 X 25, SUB FOR M340825 AND TH105051
29	4509181	1	O-Ring	-
30	0826813	1	Line	-
31	4480022	1	Plug	-
32	CH17886	2	Packing	SUB FOR 4509182
33	4694711	2	Holder	SUB FOR 0826815
34	0826816	2	Bolt	-
35	0824211	3	Bolt	-
36	12M7065	3	Lock Washer	8 mm, SUB FOR 0158896 AND A590908
37	4711156	1	Band	SUB FOR 1190002
38	-	1	Part 43	4459282, AT127347 AND 0327704 NLA
39	19M7550	2	Cap Screw	M10 X 35, SUB FOR J901035
40	12M7066	1	Lock Washer	10 mm, SUB FOR A590910
41	T116334	1	Lubrication Fitting	SUB FOR 0271312
42	TH100074	1	Lubrication Fitting	SUB FOR J75481
100	4663491	1	Seal Kit	-
1A	-	1	Part 4	0826804 NLA
1B	4334426	2	Bushing	-
2A	-	1	Part 7	0826804 NLA
2B	4334426	2	Bushing	-

Boom Cylinder Components With Holding Valve

Нет текстового описания
