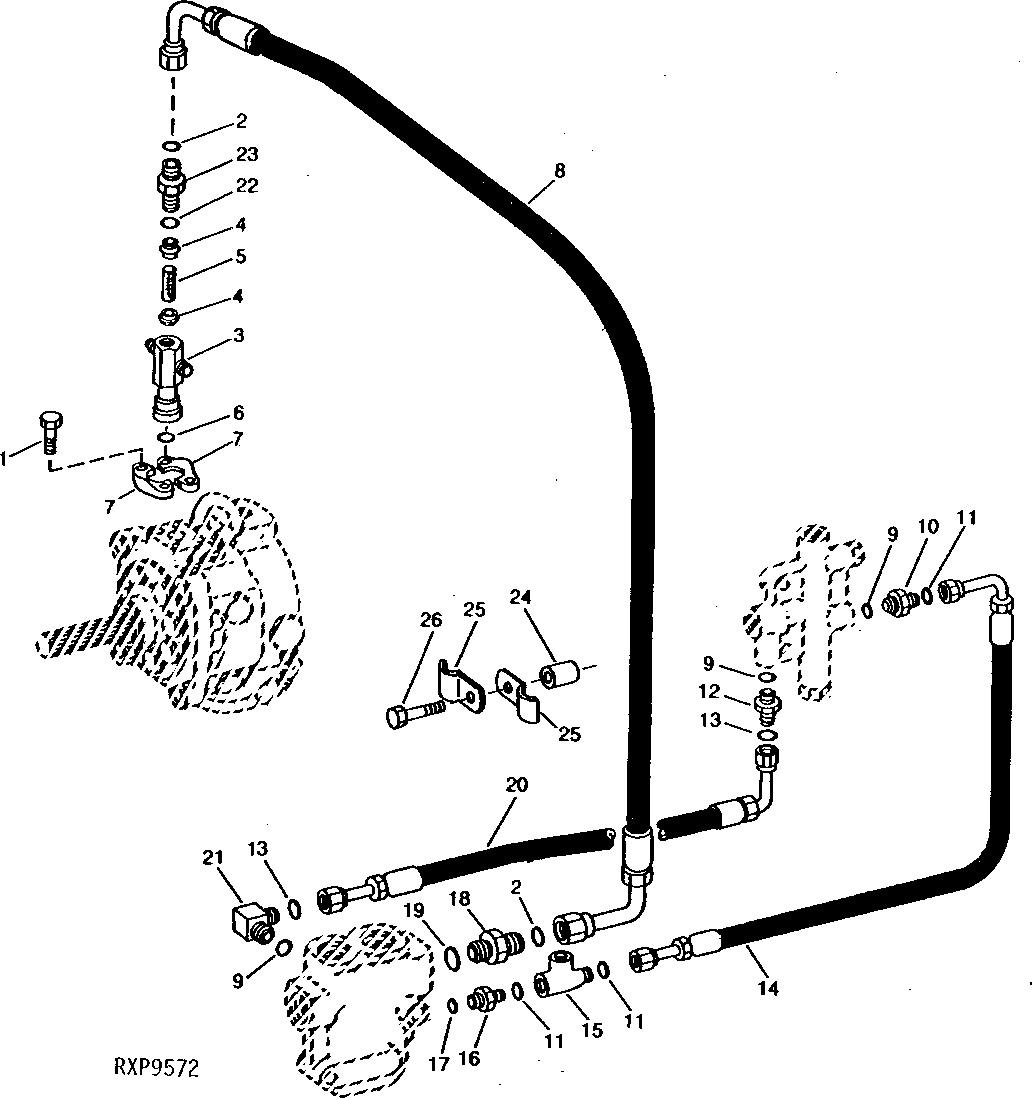

Differential Lock Valve Lines ( - 001884)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H3239	4	Cap Screw	3/8" X 1-1/4"
2	T77858	2	O-Ring	-
3	RE26422	1	Adapter Fitting	-
4	R27174	2	PACKING	-
5	R100378	1	Filter Element	-
6	T78313	1	O-Ring	-
7	H61354	2	Flange Fitting	-
8	RE53561	1	Hydraulic Hose	-
9	R26448	3	O-Ring	-
10	38H1168	1	Adapter Fitting	(DIFFERENTIAL LOCK)
11	T77814	3	O-Ring	-
12	38H1160	1	Adapter Fitting	(DIFFERENTIAL LOCK)
13	T77613	2	O-Ring	(DIFFERENTIAL LOCK)
14	RE39819	1	Hydraulic Hose	(DIFFERENTIAL LOCK)
15	38H1029	1	Tee Fitting	(DIFFERENTIAL LOCK)
15	38H1093	1	Elbow Fitting	(W/O DIFFERENTIAL LOCK) 90°
16	38H1167	1	Adapter Fitting	-
17	R26286	1	O-Ring	-
18	38H1343	1	Adapter Fitting	-
19	U17409	1	O-Ring	-
20	RE24065	1	Hydraulic Hose	(DIFFERENTIAL LOCK)
21	38H1004	1	Elbow Fitting	(DIFFERENTIAL LOCK)
21	R27218	1	Fitting Plug	(W/O DIFFERENTIAL LOCK)
22	F3171R	1	O-Ring	-
23	38H1163	1	Adapter Fitting	-
24	28H3379	2	Spacer	0.493" X 0.675" X 1-9/16"
25	R36180	4	CLAMP	-
26	19M7742	2	Cap Screw	M10 X 65, HS 10.9

Differential Lock Valve Lines ( - 001884)
