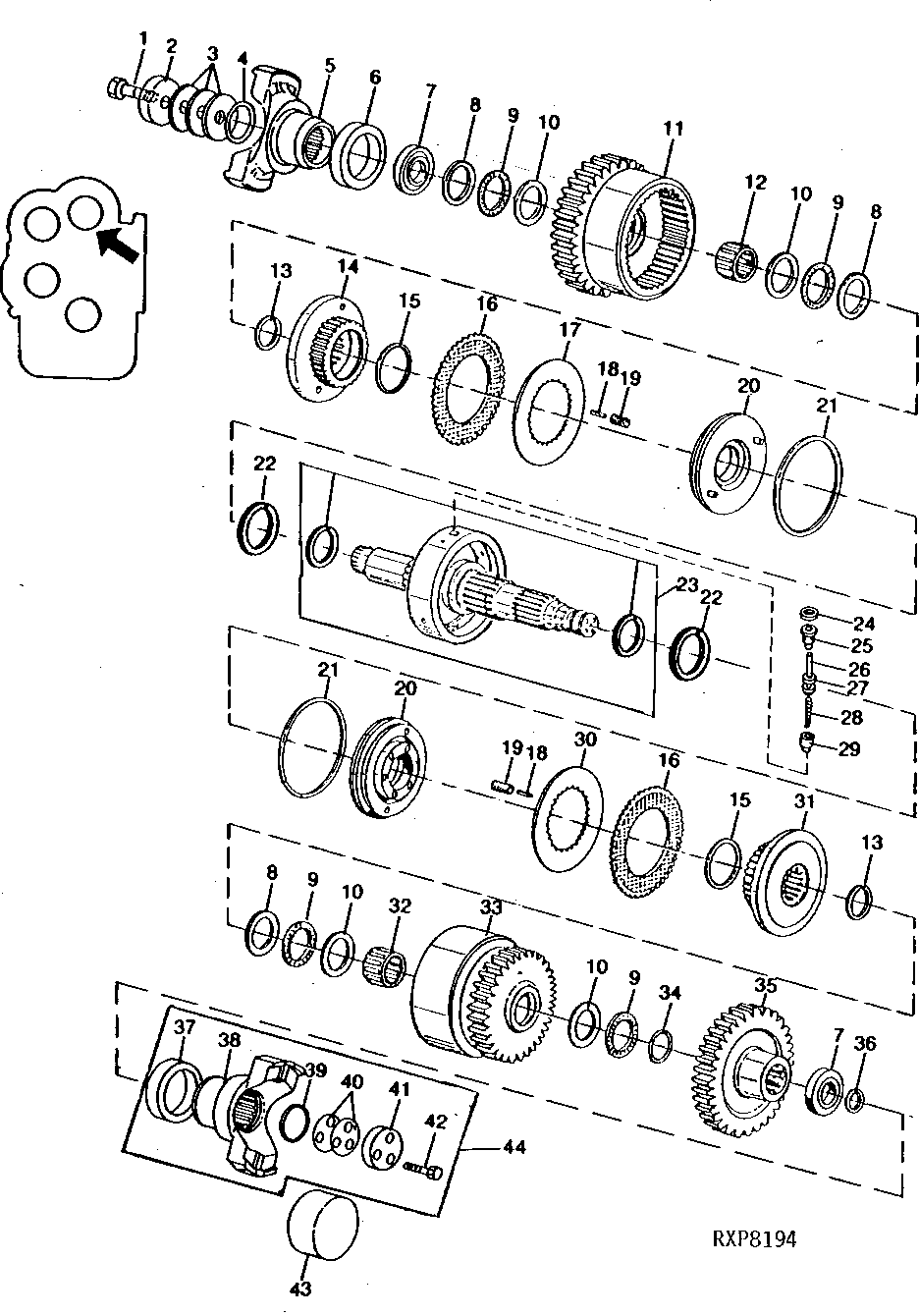

Seven-Inch Clutch Pack With Reverse, Power Shift

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2994	1	Cap Screw	5/8" X 1-1/2"
2	R96696	1	Spacer	-
3	RE48493	1	Shim	-
4	U11017	1	O-Ring	-
5	R96699	1	Universal Joint Yoke	USE WITH RE51916 AND RE35380
5	R134606	1	Universal Joint Yoke	USE WITH RE69634
6	RE36142	1	Seal	-
7	RE35349	2	Tapered Roller Bearing	-
8	T38146	3	Thrust Bearing Race	-
9	JD9886	4	Thrust Bearing	-
10	T59380	4	Thrust Washer	-
11	RE35367	1	Ring Gear And Pinion	-
12	JD10110	1	Cylindrical Roller Bearing	-
13	U44184	2	Snap Ring	-
14	R96527	1	Hub	SUB R96528
15	R96535	2	Piston Ring	-
16	RE35500	10	Clutch Plate	-
17	T49552	1	Disk	FLAT
17	U44202	1	Clutch Plate	CONED, SUB FOR R96531
18	R120083	24	Dowel Pin	(( -XXXXXX) 8760-005760; 8960-004457)
19	R96541	24	Compression Spring	-
20	R96529	2	Piston	(( -XXXXXX) 8760-005760; 8960-004457)
20	R115264	2	Piston	((XXXXXX- ) 8760-005761; 8960-004458)
21	R96538	2	Ring	-
22	R96536	2	Piston Ring	-
23	RE35380	1	Shaft	(( -XXXXXX) 8760-005760; 8960-004457)
23	RE51916	1	Shaft	((XXXXXX- ) 8760-005761; 8960-004458) SUB RE69634 AND R134606
24	R96821	2	Snap Ring	-
25	R96544	2	Rotary Valve Sleeve	-
26	R96543	2	Stem	-
27	R96546	1	Shim	-
27	R96545	1	Shim	-
28	R96542	2	Compression Spring	-
29	R96547	2	Valve	-
30	R96532	5	Plate	-
31	R96528	1	Hub	-
32	JD9888	1	Cylindrical Roller Bearing	SUB FOR RE35356
33	RE35368	1	Ring Gear And Pinion	-
34	R96540	1	Snap Ring	-
35	R96526	1	Spur Gear	-
36	R96537	4	Piston Ring	-
37	RE35542	1	Seal	-
38	R96530	1	Universal Joint Yoke	ORDER RE33543
39	U10289	1	O-Ring	-
40	R96766	1	Shim	0.08 MM (.003")
40	R96769	1	Shim	0.24 MM (.010")
41	R96738	1	Retainer	-
42	19H2987	1	Cap Screw	3/8" X 1"
43	R96722	1	Powershaft Shield	LESS PTO
44	RE33543	1	Yoke	-

Seven-Inch Clutch Pack With Reverse, Power Shift
