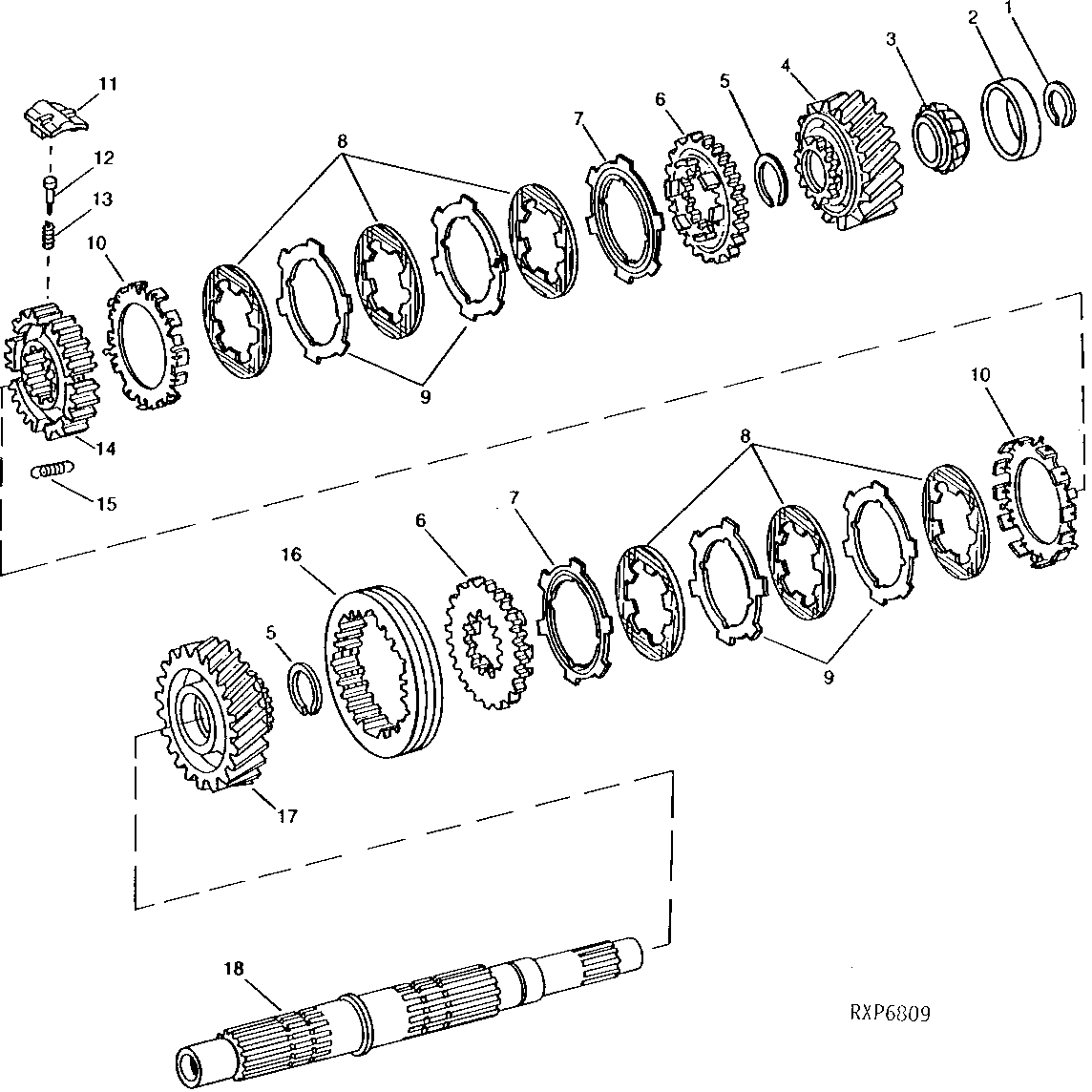

FRONT TOP SHAFT (12-SPEED SYNCRO AND 24-SPEED POWRSYNC)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R100502	1	Snap Ring	3.01 MM (.119"), (LIGHT BLUE)
1	R100503	1	Snap Ring	3.08 MM (.121"), (YELLOW)
1	R100504	1	Snap Ring	3.16 MM (.124"), (LIGHT GREEN)
1	R100505	1	Snap Ring	3.24 MM (.128"), (PURPLE)
1	R100506	1	Snap Ring	3.31 MM (.130"), (PINK)
1	R100507	1	Snap Ring	3.39 MM (.133"), (RED)
1	R100501	1	Snap Ring	2.93 MM (.115"), (WHITE)
2	JD9021	1	Bearing Cup	-
3	JD9012	1	Bearing Cone	-
4	R128170	1	Pinion	(SUB FOR R84165)MEDIUM SPEED
5	R89287	2	Snap Ring	-
6	R101094	2	Drum	(SUB R128107 AND (3) RE63866) (24-SPEED)
6	R84495	2	Drum	(12-SPEED) (SUB R128107 AND (3) RE63866)
6	R101094	2	Drum	(SUB R128107 AND (3) RE63866) (12-SPEED)
7	RE40440	2	Plate	(SUB FOR RE32110)
8	RE40438	6	Disk	(SUB (3) RE63866 AND R128107) (24-SPEED)
8	RE24494	6	Disk	(12-SPEED) (SUB (3) RE63866 AND R128107)
8	RE40438	6	Disk	(SUB (3) RE63866 AND R128107) (12-SPEED)
9	R84691	4	Plate	-
10	R88295	2	Synchronizer	-
11	R92406	3	Detent	-
12	R92549	3	Detent	-
13	R97594	3	Compression Spring	-
14	R88289	1	Hub	-
15	R92508	3	Extension Spring	-
16	R97597	1	Shift Collar	-
17	R128171	1	Pinion	(SUB FOR R84164)HIGH SPEED
18	R83679	1	Shaft	-
18	R105405	1	Shaft	(SUB FOR R83679) (ALSO ORDER R105392, R105393, R105394, R105395, R105396, R105397 AND R105398)

FRONT TOP SHAFT (12-SPEED SYNCRO AND 24-SPEED POWRSYNC)
