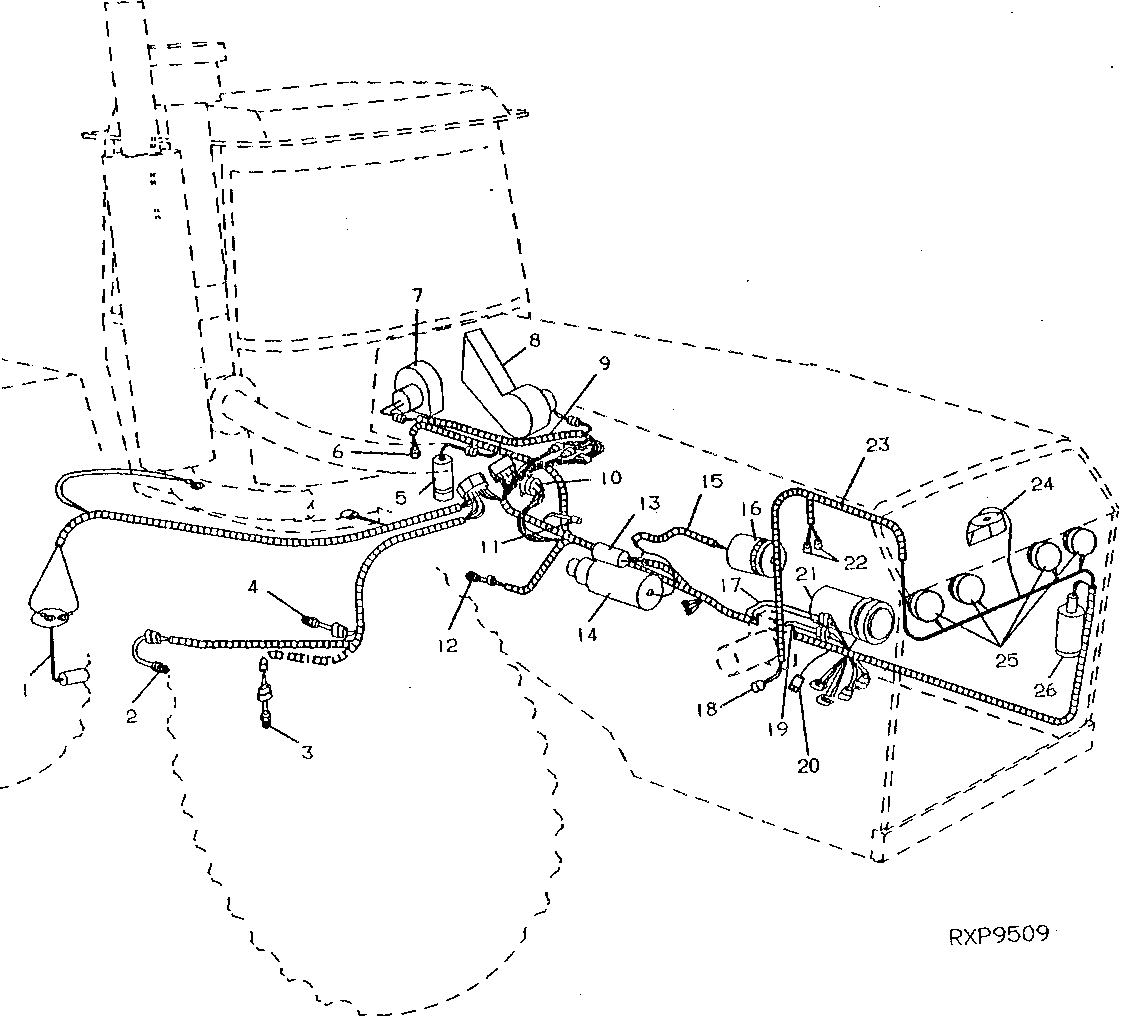

FRONT CHASSIS AND A/C WIRING HARNESSES

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE61182	1	Fuel Sender	(8560 (002331-003100)) (8760 (004332-005100)) (8960 (002937-004100)) FUEL LEVEL; SUB FOR RE25027, RE48055, RE48490 OR RE52042; SUB RE221717
2	RE27098	1	Trans Oil Pressure Sensor	(PST) (8760 (004332-005100)) (8960 (002937-004100)) TRANSMISSION SYSTEM PRESSURE
3	RE27649	1	Oil Restriction Sensor	(8560 (002331-003100)) (8760 (004332-005100)) (8960 (002937-004100)) TRANSMISSION OIL FILTER RESTRICTION
4	RE27381	1	Trans Oil Pressure Sensor	(12 SPEED SYNCRO/24 SPEED POWRSYNC) (8560 (002331-003100)) (8760 (004332-005100)) (8960 (002937-004100)) TRANSMISSION SYSTEM PRESSURE
5	RE24957	1	Switch	(8560 (002331-003100)) (8760 (004332-005100)) (8960 (002937-004100)) A/C CLUTCH CYCLE SWITCH; USE WITH RE50906
5	AH144084	1	Switch	(8560 (002331-003100)) (8760 (004332-005100)) (8960 (002937-004100)) USE WITH RE36136
6	RE12176	1	Air Restriction Sensor	(8560 (002331-003100)) (8760 (004332-005100)) (8960 (002937-004100)) AIR FILTER RESTRICTION
7	RE46880	1	Blower	(8560 (002331-003100)) (8760 (004332-005100)) (8960 (002937-004100)) PRESSURIZER; SUB FOR RE37152
8	RE53219	1	Motor	(8560 (002331-003100)) (8760 (004332-005100)) (8960 (002937-004100)) A/C AND HEAT BLOWER; SUB FOR RE37153
9	RE36136	1	Wiring Harness	(8560 (002331-003100)) (8760 (004332-005100)) (8960 (002937-004100)) AIR CONDITIONING
10	RE170320	1	Starter Relay	(8560 (002331-003100)) (8760 (004332-005100)) (8960 (002937-004100)) STARTING CIRCUIT; SUB FOR RE38391
11	RE32529	1	Solenoid Valve	(8560 (002331-003100)) (8760 (004332-005100)) (8960 (002937-004100)) DESTROKE SOLENOID
12	RE156641	1	Pressure Switch	(8560 (002331-003100)) (8760 (004332-005100)) (8960 (002937-004100)) PTO AXLE LUBE; SUB FOR RE37548
13	RE38615	1	Solenoid	(8560 (002331-003100)) STARTER
13	RE38617	1	Solenoid	(8760 (004332-005100)) (8960 (002937-004100)) STARTER
14	SE501452	1	Starter Motor Reman	(8560 (002331-003100)) REMAN FOR TY6729
14	SE501451	1	Starter Motor	(8760 (004332-005100)) REMAN FOR TY6728
14	TY6728	1	Starter Motor	(8960 (002937-004100)) USE WITH RE41754
14	RE53695	1	Starter Motor	(8960 (002937-004100)) DELCO-REMY NO, 1990354; MARKED RE51792; SUB FOR RE41754
14	TY6730	1	Starter Motor	(8760 (004332-005100))
14	RE69590	1	Starter Motor	(8760 (004332-005100)) DELCO-REMY/42 MT NO, 1993935; MARKED RE38633; SUB FOR RE41756
14	RE65176	1	Kit	(USES <service-part>RE35168</service-part> (GE-H7607) HALOGEN LAMP) (8560 (002331-003100)) NIPPONDENSO NO. 228000-4601; SUB FOR RE43423 OR RE56053
14	TY6713	1	STARTER MOTOR	(USES <service-part>RE35168</service-part> (GE-H7607) HALOGEN LAMP) (8560 (002331-003100)) NIPPONDENSO
14	RE41875	1	Starter Motor	(USES <service-part>RE35168</service-part> (GE-H7607) HALOGEN LAMP) (8560 (002331-003100)) NIPPONDENSO NO, 028000-3292; MARKED RE13722
14	TY6729	1	Starter Motor	(8560 (002331-003100)) DELCO-REMY
14	RE41755	1	Starter Motor	(8560 (002331-003100)) DELCO-REMY/37MT NO, 1993894; MARKED RE37961
14	TY6781	1	Starter Motor	(USES <service-part>RE35168</service-part> (GE-H7607) HALOGEN LAMP) (8560 (002331-003100)) NIPPONDENSO; SUB FOR TY6731
15	RE24138	1	Wiring Harness	(8560 (002331-003100)) (8760 (004332-005100))
16	RE42123	1	Alternator	(PST) (8760 (004332-005100)) 120-AMP, NIPPONDENSO NO, 100211-6030A; SUB TY6684
16	RE51921	1	Alternator	(8560 (002331-003100)) (8760 (004332-005100)) (8960 (002937-004100)) 120-AMP, NIPPONDENSO; SUB TY6684 OR SE501371
16	TY6684	1	Alternator	(8560 (002331-003100)) (8760 (004332-005100)) (8960 (002937-004100)) 120-AMP, NIPPONDENSO; SUB FOR RE37201, RE42123 OR RE44140
16	SE501371	1	Alternator	(8560 (002331-003100)) (8760 (004332-005100)) (8960 (002937-004100)) REMAN FOR RE42123 OR TY6684
17	RE38029	1	Switch	(8560 (002331-003100)) (8760 (004332-005100)) (8960 (002937-004100)) HYDRAULIC FILTER
18	R39554	1	Switch	(8560 (002331-003100)) (8760 (004332-005100)) (8960 (002937-004100)) COOLANT LEVEL
19	RE47785	1	Sensor	(8560 (002331-003100)) (8760 (004332-005100)) (8960 (002937-004100)) HYDRAULIC OIL TEMPERATURE; SUB FOR RE33699
20	RE33778	1	Diode	(8560 (002331-003100)) (8760 (004332-005100)) (8960 (002937-004100)) A/C DIODE
21	AM31284	2	Bulb	(8560 (002331-003100)) (8760 (004332-005100)) (8960 (002937-004100)) COOLANT LEVEL; GE-1895
22	TY6626	1	Compressor	(8560 (002331-003100)) (8760 (004332-005100)) (8960 (002937-004100)) R12; NIPPONDENSO NO, 047100-8110; SUB FOR RE10972 OR RE12513; NLA; ORDER SE501460
22	SE501460	1	Compressor Reman	(8560 (002331-003100)) (8760 (004332-005100)) (8960 (002937-004100)) MARKED RE57936; REMAN FOR TY6626
22	TY6766	1	Compressor	(8560 (002331-003100)) (8760 (004332-005100)) (8960 (002937-004100)) R134A; NIPPONDENSO NO, 247100-5860; NLA; ORDER SE501464
22	SE501464	1	Compressor Reman	(8560 (002331-003100)) (8760 (004332-005100)) (8960 (002937-004100)) REMAN FOR TY6766
23	RE49610	1	Wiring Harness	(8560 (002331-003100)) (8760 (004332-005100)) (8960 (002937-004100)) FRONT CHASSIS; SUB FOR RE36401, RE36876, RE41264 OR RE49258
24	R64700	1	High Note Horn	(8560 (002331-003100)) (8760 (004332-005100)) (8960 (002937-004100)) HIGH NOTE; SUB RE159897, (2) 24H1291 AND (2) 14M7273
24	AL203265	1	Horn	(8560 (002331-003100)) (8760 (004332-005100)) (8960 (002937-004100)) SUB FOR AL114614 OR RE159897
25	RE35140	4	Floodlamp	(USES <service-part>RE35168</service-part> (GE-H7607) HALOGEN LAMP) (8560 (002331-003100)) (8760 (004332-005100)) (8960 (002937-004100))
25	RE561116	4	Floodlamp	(8560 (002331-003100)) (8760 (004332-005100)) (8960 (002937-004100)) SUB FOR RE336111
25	RE336111	4	Floodlamp	(8560 (002331-003100)) (8760 (004332-005100)) (8960 (002937-004100)) SUB FOR RE285628; LED LAMP, FLOOD PATTERN
25	RE561117	4	Floodlamp	(8560 (002331-003100)) (8760 (004332-005100)) (8960 (002937-004100)) SUB FOR RE336112
25	RE336112	4	Floodlamp	(8560 (002331-003100)) (8760 (004332-005100)) (8960 (002937-004100)) SUB FOR RE285629; LED LAMP, TRAPEZOID FLOOD PATTERN
26	RE48310	1	Starting Aid Solenoid	(8560 (002331-003100)) (8760 (004332-005100)) (8960 (002937-004100)) ETHER; SUB FOR AR97514

FRONT CHASSIS AND A/C WIRING HARNESSES
