Открытый узел

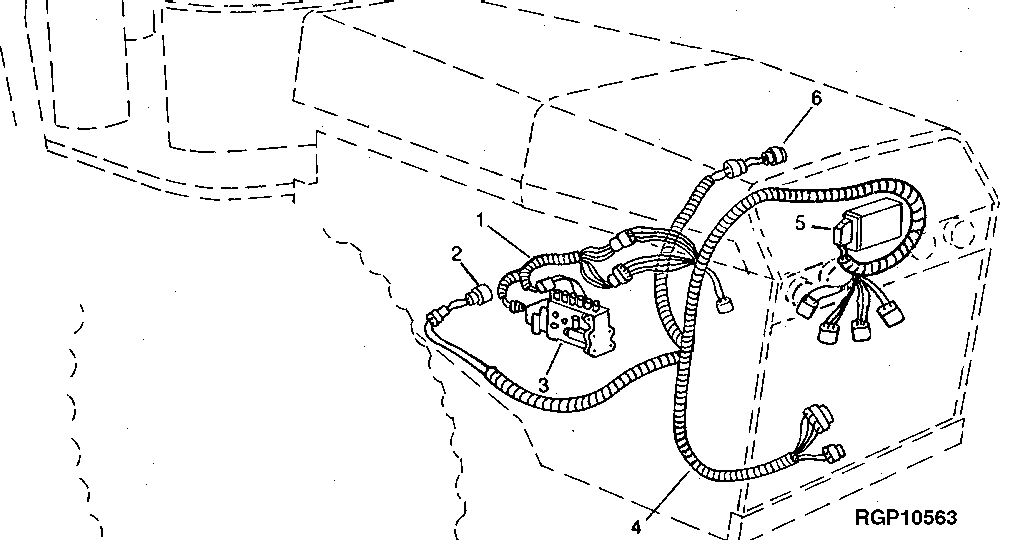

Engine Controller And Injection Pump Wiring Harnesses

Engine Controller And Injection Pump Wiring Harnesses

Engine Controller And Injection Pump Wiring Harnesses

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

Engine Controller And Injection Pump Wiring Harnesses

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE31504	1	Wiring Harness	(ALL PARTS FURNISHED FOR 8560 AND 8760 MST AND 8760 PST) (6076HRW02, 30 AND 6101HRW02) INJECTION PUMP
2	RE63291	1	Engine Oil Pressure Sender	(ALL PARTS FURNISHED FOR 8560 AND 8760 MST AND 8760 PST) (6076HRW02, 30 AND 6101HRW02) ENGINE OIL PRESSURE; SUB FOR RE37549 OR RE57478
3	-	1	Part 3	(ALL PARTS FURNISHED FOR 8560 AND 8760 MST AND 8760 PST) (6076HRW02, 30 AND 6101HRW02) ROBERT BOSCH)
4	RE24134	1	Wiring Harness	(ALL PARTS FURNISHED FOR 8560 AND 8760 MST AND 8760 PST) (( -XXXXXX) 8560-003100; 8760-005100) (6076HRW02, 30 AND 6101HRW02) ENGINE
4	RE49189	1	Wiring Harness	((XXXXXX- ) 8560-003101; 8760-005101) (6076HRW02, 30 AND 6101HRW02)
5	RE501806	1	Engine Controller	(ESN (102799- )) (6076HRW02, 30 AND 6101HRW02) MARKED RE28320; USE WITH RE47941; ALSO ORDER (4) 37M7089 AND RE502125) (SUB FOR RE48013
5	RE502125	1	Harness Kit	(6076HRW02, 30 AND 6101HRW02) CONTAINS RE501940, RE502104, (2) R105388 AND (6) 14M7303
5	RE501806	1	Engine Controller	(ESN ( -102798)) (6076HRW02, 30 AND 6101HRW02) MARKED RE28320; USE WITH RE41129 OR RE37385; ALSO ORDER (4) 37M7089 AND RE502125) (SUB FOR RE38241
5	RE501810	1	Engine Controller	(ESN (500000- )) (6076HRW02, 30 AND 6101HRW02) MARKED RE28320) (SUB FOR RE49261; ALSO ORDER RE502125
5	RE501811	1	Engine Controller	(ESN ( -499999)) (6076HRW02, 30 AND 6101HRW02) ALSO ORDER (4) 37M7089
6	RE47785	1	Sensor	(ALL PARTS FURNISHED FOR 8560 AND 8760 MST AND 8760 PST) (( -XXXXXX) 8560-002330; 8760-004321) (6076HRW02, 30 AND 6101HRW02) SUB RE50120 APPL
6	RE50120	1	Sensor	(ALL PARTS FURNISHED FOR 8560 AND 8760 MST AND 8760 PST) ((XXXXXX-XXXXXX) 8560-002331-003100; 8760-004322-005100) (DO NOT USE <service-part>RE47572</service-part> RESISTOR CALIBRATION SHUNT) (6076HRW02, 30 AND 6101HRW02) ENGINE COOLANT TEMPERATURE) (SUB FOR RE33699, OR RE47785 APPL
6	RE151433	1	Temperature Sensor	((XXXXXX- ) 8560-003101; 8760-005101) (6076HRW02, 30 AND 6101HRW02) SUB FOR RE48073
..	R50454	1	Clamp	(6076HRW02, 30 AND 6101HRW02)
..	R44302	1	Tie Band	(6076HRW02, 30 AND 6101HRW02)
..	H113196	1	Tie Band	(6076HRW02, 30 AND 6101HRW02)
..	19M7166	1	Cap Screw	(6076HRW02, 30 AND 6101HRW02) M10 X 20
