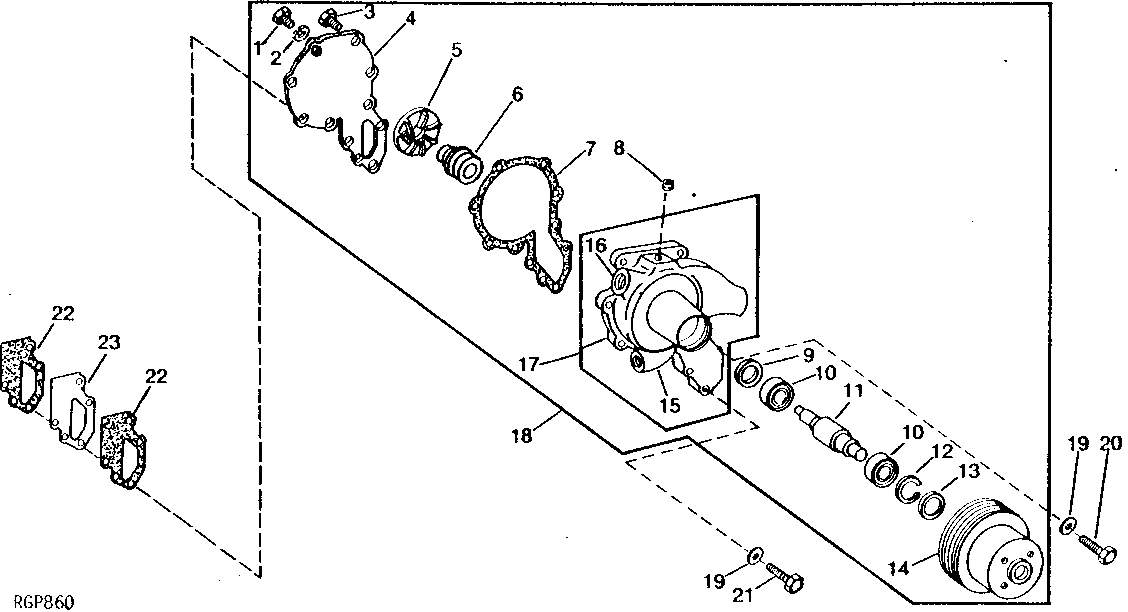

WATER PUMP (ENGINE SERIAL NO. 040599-040715) [02F14]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H1731	8	Cap Screw	3/8" X 1"
2	12H304	8	Lock Washer	3/8"
3	H78097	1	Screw	(SUB FOR R49482)
4	R63514	1	COVER	-
5	R135265	1	IMPELLER	(SUB FOR R49698) (ALSO ORDER RE68318, UNLESS PREVIOUSLY INSTALLED)
6	RE68318	1	Seal Kit	(SUB FOR AR101549 OR RE20776, APPL) (ALSO ORDER R135265, UNLESS PREVIOUSLY INSTALLED)
7	R520572	1	GASKET	(SUB FOR R66093)
8	15H584	1	Pipe Plug	1/2", (WITHOUT HEATER)
9	RE20767	1	Seal	(SUB FOR AR90860, APPL)
10	JD10329	2	Ball Bearing	(SUB FOR JD7686)
11	R82052	1	SHAFT	(SUB FOR R72140, APPL)
12	R62193	1	Snap Ring	2.2 MM (.087") (BLUE)
12	R62194	1	Snap Ring	2.5 MM (.097") (WHITE)
12	R62192	1	Snap Ring	1.9 MM (.077") (GREEN)
12	R62191	1	Snap Ring	1.7 MM (.067") (RED)
12	F2367R	1	SNAP RING	1.6 MM (.062")
13	RE20768	1	Seal	(SUB FOR AR90861, APPL)
14	R85199	1	PULLEY	(SUB FOR R63513)
15	R57503	1	Tube	-
16	R63512	1	LINE	-
17	SE500905	1	WATER PUMP REMAN	(REMANUFACTURED) (SUB FOR RE70253 AND AR86554) (MARKED R66661)
17	SE500905	1	WATER PUMP REMAN	(REMANUFACTURED) (SUB FOR AR91249) (MARKED R70037)
18	AR86553	1	WATER PUMP	(MARKED R66661) (SUB SE500905)
19	R63845	4	Washer	-
20	19H3031	3	Cap Screw	3/8" X 2-1/2"
21	19H2458	1	Cap Screw	3/8" X 3"
22	R520542	2	GASKET	(SUB FOR R49495) (SUB FOR R65848)
23	R49421	1	SPACER	-

WATER PUMP (ENGINE SERIAL NO. 040599-040715) [02F14]
