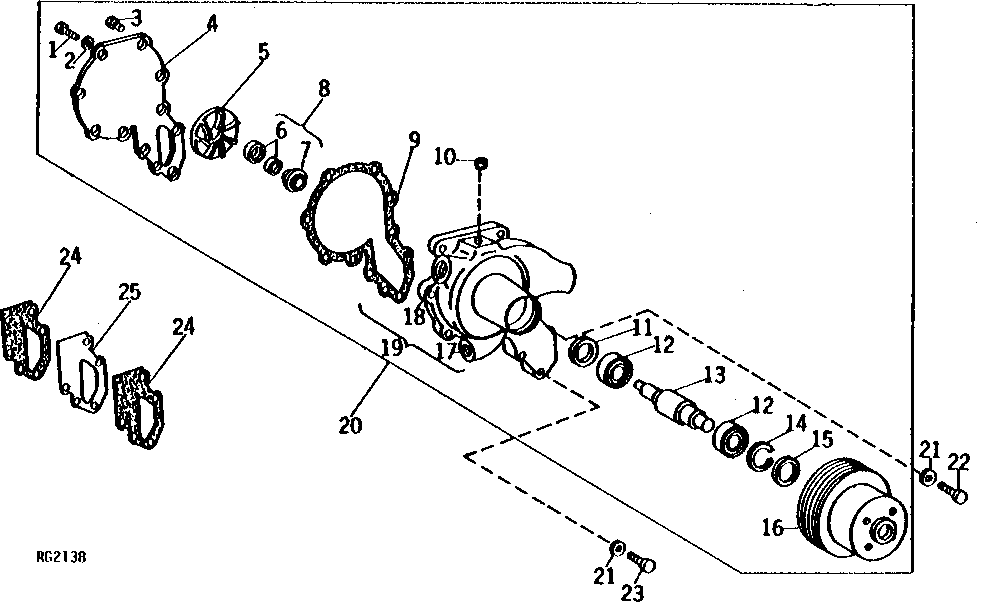

WATER PUMP (ENGINE SERIAL NO. -040598) (ENGINE SERIAL NO. 040716-042120) [02F15]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H1731	7	Cap Screw	3/8" X 1"
2	12H304	7	Lock Washer	3/8"
3	H78097	1	Screw	(SUB FOR R49482)
4	R63514	1	COVER	-
5	R135265	1	IMPELLER	(SUB FOR R49698) (ALSO ORDER RE68318, UNLESS PREVIOUSLY INSTALLED)
6	AR41691	1	SEAL KIT	(SUB RE68318, APPL)
7	T27261	1	SEAL	(SUB RE68318, APPL)
8	AR62934	1	SEAL	(SUB RE68318, APPL)
9	R520572	1	GASKET	(SUB FOR R66093)
10	15H584	1	Pipe Plug	1/2", (WITHOUT WATER)
11	RE68318	1	Seal Kit	(SUB FOR AR55967, AR90860 OR RE20776, APPL) (ALSO ORDER R135265 UNLESS PREVIOUSLY INSTALLED)
12	JD10329	2	Ball Bearing	(SUB FOR JD7686)
13	R82052	1	SHAFT	(SUB FOR R60602 OR R72140, APPL)
14	R62192	1	Snap Ring	1.9 MM (.077") (GREEN)
14	R62194	1	Snap Ring	2.5 MM (.097") (WHITE)
14	R62193	1	Snap Ring	2.2 MM (.087") (BLUE)
14	R62191	1	Snap Ring	1.7 MM (.067") (RED)
14	F2367R	1	SNAP RING	1.6 MM (.062")
15	RE20768	1	Seal	(SUB FOR AR55966 OR AR90861, APPL)
16	R85199	1	PULLEY	(SUB FOR R63513)
17	R57503	1	Tube	-
18	R63512	1	LINE	-
19	AR86554	1	HOUSING	(MARKED R66661) (SUB SE500905)
19	AR91249	1	HOUSING	(MARKED R70037) (SUB SE500905)
20	AR86553	1	WATER PUMP	(MARKED R66661) (SUB SE500905)
21	R63845	4	Washer	-
22	19H3031	3	Cap Screw	3/8" X 2-1/2"
23	19H2458	1	Cap Screw	3/8" X 3"
24	R520542	2	GASKET	(SUB FOR R49495) (SUB FOR R65848)
25	R49421	1	SPACER	-

WATER PUMP (ENGINE SERIAL NO. -040598) (ENGINE SERIAL NO. 040716-042120) [02F15]

Нет текстового описания
