Открытый узел

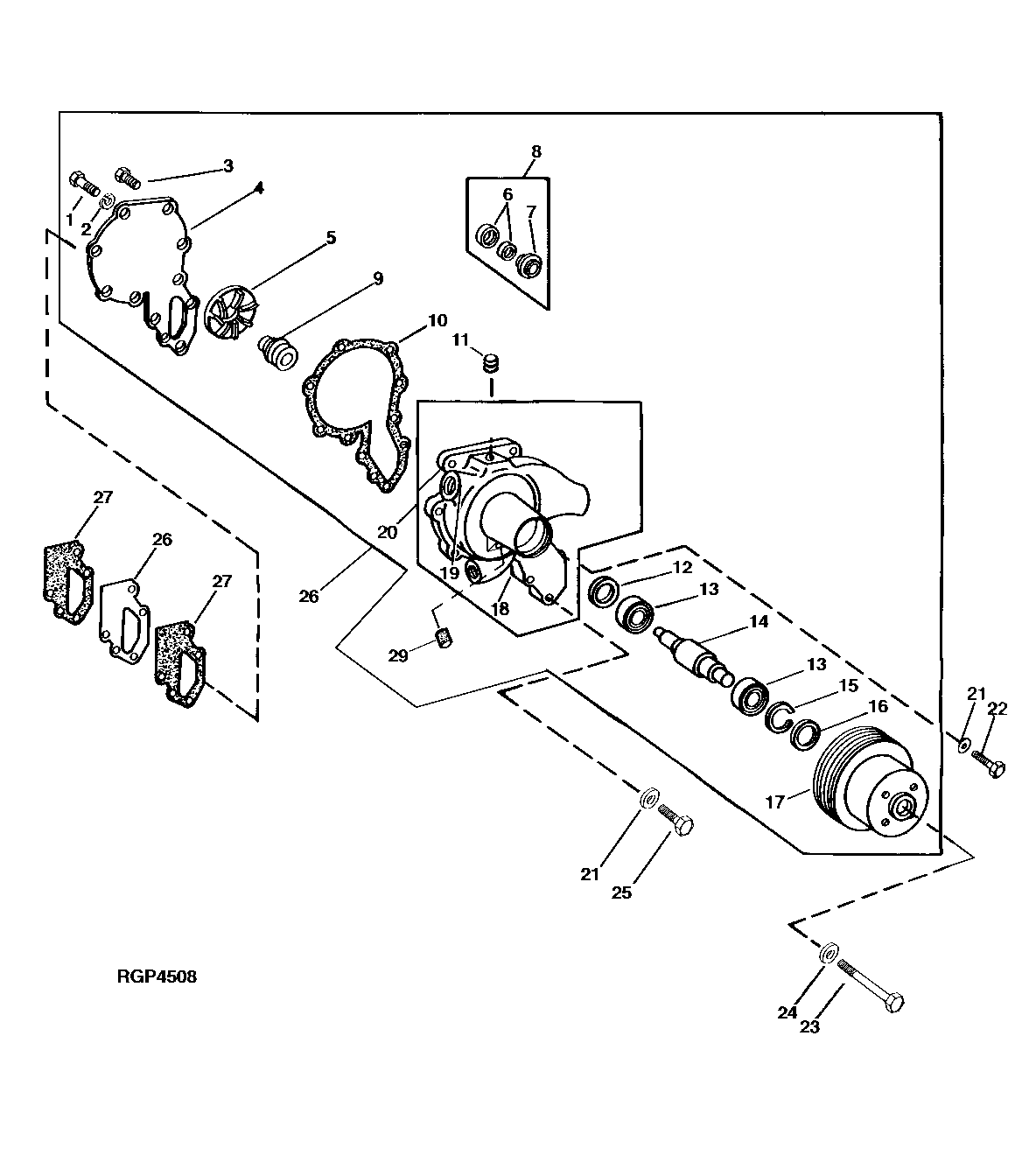

WATER PUMP AND PULLEY (ENGINE SERIAL NO. 042121- ) [02F16]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	H78097	1	Screw	(SUB FOR R49482)
2	12H304	8	Lock Washer	3/8"
3	19H1731	8	Cap Screw	3/8" X 1"
4	R63514	1	COVER	-
5	R135265	1	IMPELLER	(SUB FOR R49698) (ALSO ORDER RE68318, UNLESS PREVIOUSLY INSTALLED)
6	AR41691	1	SEAL KIT	(SUB RE68318, APPL)
7	T27261	1	SEAL	(SUB RE68318, APPL)
8	AR62934	1	SEAL	(SUB RE68318, APPL)
9	RE68318	1	Seal Kit	(SUB FOR AR101549 OR RE20776, APPL) (ALSO ORDER R135265, UNLESS PREVIOUSLY INSTALLED)
10	R520572	1	GASKET	(SUB FOR R66093)
11	15H584	1	Pipe Plug	1/2", (WITHOUT HEATER)
12	RE20767	1	Seal	(SUB FOR AR90860, APPL)
13	JD10329	2	Ball Bearing	(SUB FOR JD7686)
14	R82052	1	SHAFT	(SUB FOR R72140, APPL)
15	R62194	1	Snap Ring	2.5 MM (.097") (WHITE)
15	R62193	1	Snap Ring	2.2 MM (.087") (BLUE)
15	R62191	1	Snap Ring	1.7 MM (.067") (RED)
15	F2367R	1	SNAP RING	1.6 MM (.062")
15	R62192	1	Snap Ring	1.9 MM (.077") (GREEN)
16	RE20768	1	Seal	(SUB FOR AR90861, APPL)
17	R85199	1	PULLEY	(SUB FOR R63513)
18	R57503	1	Tube	-
19	R63512	1	LINE	-
20	AR91249	1	HOUSING	(MARKED R70037, R100799 OR R124135) (SUB RE60830)
21	R63845	4	Washer	-
22	19H2458	3	Cap Screw	3/8" X 3"
23	19H1815	1	Cap Screw	1/2" X 1-1/4"
24	T20217	1	Washer	-
25	19H3175	1	Cap Screw	3/8" X 3-5/8"
26	AR91248	1	WATER PUMP	(MARKED R70037) (SUB SE500905)
26	RE20770	1	WATER PUMP	(MARKED R70037) (SUB FOR AR98560) (SUB SE500905)
26	RE40083	1	WATER PUMP	(MARKED R100799) (SUB SE500905)
26	RE60830	1	WATER PUMP	(MARKED R124135) (CONTAINS R49698) (SUB SE500905)
26	RE70253	1	WATER PUMP	(MARKED R124135) (CONTAINS R135265) (SUB SE500905)
27	R520542	2	GASKET	(SUB FOR R49495) (SUB FOR R65848)
28	R49421	1	SPACER	-
29	R98527	1	Filter	-

WATER PUMP AND PULLEY (ENGINE SERIAL NO. 042121- ) [02F16]

Нет текстового описания
