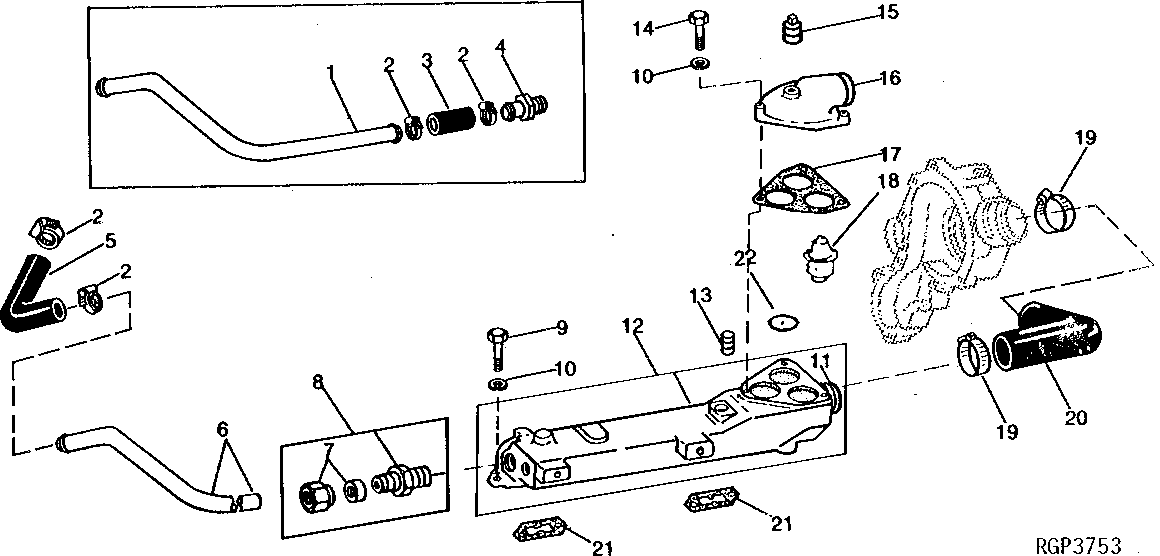

WATER OUTLET MANIFOLD AND THERMOSTATS [02F21]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R49472	1	Tube	-
2	TY22467	4	Clamp	(SUB FOR AR21839)
2	TY22467	2	Clamp	(SUB FOR AR21839)
3	R44324	1	Hose	25 MM X 67 MM (1" X 2-5/8")
4	R49518	1	Fitting	-
5	R49474	1	Hose	85 MM X 55 MM (3.35" X 2.2") (NLA) (SUB TY22404)
5	TY22404	1	Hose	(BULK)
6	R70418	1	Line	-
7	RE11710	1	Seal	(SUB AR92383)
8	AR92383	1	Fitting	-
9	19H3239	4	Cap Screw	3/8" X 1-1/4"
10	12H304	3	Lock Washer	3/8"
10	12H304	4	Lock Washer	3/8", (NOT REQUIRED WITH 19H3239)
11	R52248	1	TUBE	-
12	AR69051	1	MANIFOLD	(MARKED R57513) (992D-LC ALSO ORDER R100715, APPL)
12	AR69051	1	MANIFOLD	(MARKED R57513) (992D-LC)
12	AR69051	1	MANIFOLD	(MARKED R57513) (ALL OTHER APPLICATIONS)
13	15H584	1	Pipe Plug	1/2", (JD862)
13	RE57836	1	Pipe Plug	1/2" (JD860B, JD862B, JD855, JD890, 890A, 992D-LC) (SUB FOR 15H624)
14	19H1801	3	CAP SCREW	3/8" X 2"
15	15H604	1	Pipe Plug	1/4", (USE WITH R63030)
16	R63030	1	Cover	-
16	R63030	1	Cover	(992D-LC) (SUB R100715, APPL)
16	R100715	1	COVER	(992D-LC)
16	R63516	1	COVER	(NOT ILLUSTRATED) (JD855)
17	R81274	1	GASKET	(SUB FOR R49488)
18	AR48675	3	Thermostat	82°C (180°F) (JD862B, JD862, JD860B, JD890, 890A, JD855)
18	AR72852	1	Thermostat	89° C (192° F) (890A)
18	AR48675	1	Thermostat	82° C (180° F) (REAR ON 992D-LC) (USE WITH R100715)
18	AR48675	3	Thermostat	(992D-LC) (SUB R100715 AND (1) AR48675, APPL)
19	AR65293	2	Clamp	-
20	-	1	Part 32	77.9 MM X 38.1 MM (3.07" X 1.5") (NO LONGER AVAILABLE) (SUB TY22410)
20	TY22410	1	HOSE	(BULK)
21	R88397	2	Gasket	(SUB FOR R42693)
22	R100671	2	Plug	(FRONT ON 992D-LC) (SUB R100715)

WATER OUTLET MANIFOLD AND THERMOSTATS [02F21]
