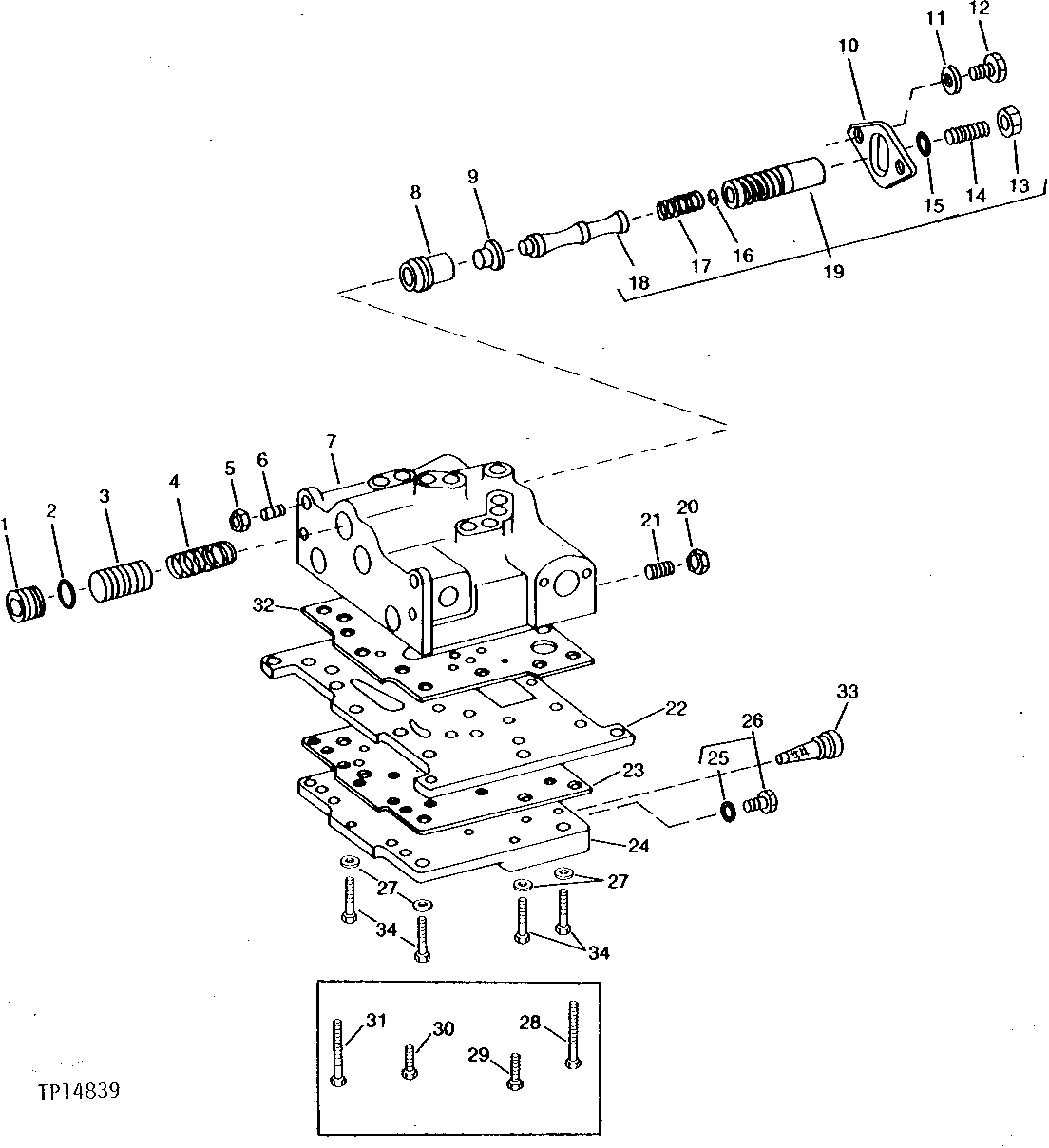

TRANSMISSION CONTROL VALVE HOUSING AND AUTOMATIC CONTROL VALVE [01G11]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T64769	1	Drain Plug	-
2	R47157	1	O-RING	(K) (SUB FOR U12547, THIS APPLICATION)
3	T56572	1	PISTON	(MARKED A)
3	T54994	1	PISTON	-
4	T54995	1	SPRING	-
5	14H850	4	NUT	1/4"
6	T54987	4	SET SCREW	-
7	-	1	Part 8	NLA
8	T54997	1	SLEEVE	-
8	T56571	1	SLEEVE	(MARKED D)
9	T54996	1	PISTON	-
10	T55000	1	RETAINER	-
11	24H1286	2	Washer	9/32" X 1/2" X 1/16"
12	19H1227	2	Cap Screw	1/4" X 1/2"
13	14H856	1	Nut	1/2"
14	T55001	1	SCREW	-
15	A4365R	1	O-Ring	(K)
16	32240	1	O-Ring	(K)
17	T54998	1	SPRING	-
18	-	1	Part 20	(SUB AT52835 OR AT54406)
19	AT54406	1	KIT	(MARKED D)
19	AT52835	1	KIT	-
20	T55008	2	NUT	-
21	T55009	2	SET SCREW	-
22	-	1	Part 25	(A) NLA, (SUB FOR T54953)
22	T82416	1	PLATE	(A)
23	T212697	1	GASKET	(A) (K) (SUB FOR T127219, T54948 OR T82428) (USE WITH 1/2" SANDWICH PLATE)
23	T212696	1	GASKET	(A) (K) (SUB FOR T127218 OR T82420) (USE WITH 1/16" SNADWICH PLATE)
24	T54954	1	COVER	(A)
24	AT84573	1	KIT	(A)
24	T54949	1	COVER	(TRANSMISSION CONTROL VALVE COVER) (FOR OLDER UNITS WITH CAB) (PARTS COME OUT FRONT SIDE) (NOT ILLUSTRATED)
25	R26375	1	O-Ring	(A)
26	AT63271	1	Fitting	(A)
27	24H1136	22	Washer	(A) 11/32" X 11/16" X 0.065", (SUB FOR T54868)
27	24H1136	16	Washer	(A) 11/32" X 11/16" X 0.065", (SUB FOR T54868)
28	19H3130	2	Cap Screw	(A) 5/16" X 1-3/4"
29	19H3132	7	Cap Screw	(A) 5/16" X 2-1/4"
30	19H2705	4	Cap Screw	(A) 5/16" X 1"
31	19H3552	9	Cap Screw	(A) 5/16" X 1-1/2"
32	T212697	1	GASKET	(A) (K) (SUB FOR T127219, T54952 OR T82415) (USE WITH 1/2" SANDWICH PLATE)
32	T212696	1	GASKET	(A) (K) (SUB FOR T127218) (USE WITH 1/16" SANDWICH PLATE)
33	AT84575	1	SCREEN	(A)
34	19H3239	16	Cap Screw	(A) 3/8" X 1-1/4"

TRANSMISSION CONTROL VALVE HOUSING AND AUTOMATIC CONTROL VALVE [01G11]
