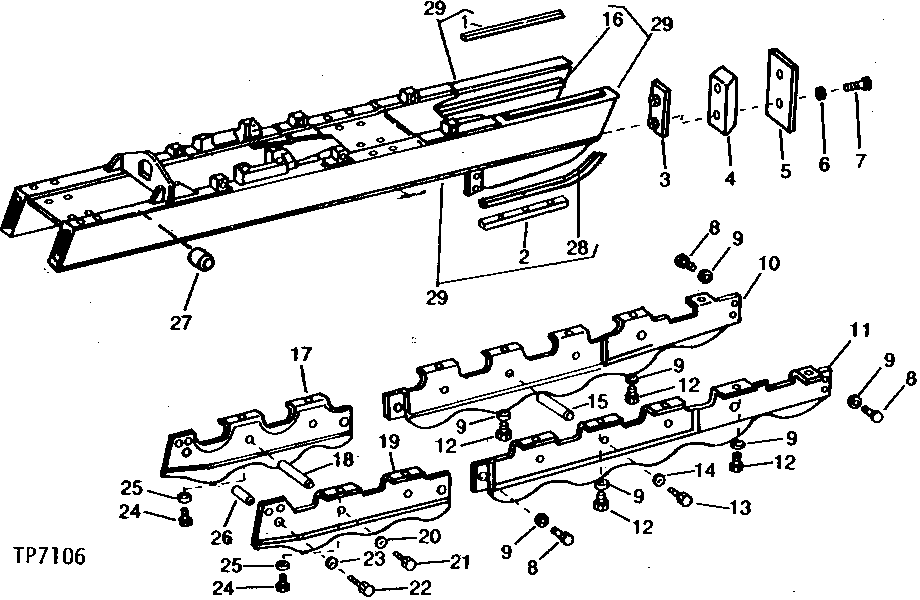

TRACK FRAME AND ROCK GUARDS (SERIAL NO. 374065- ) [01B08]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T67938	2	STRAP	(SUB FOR T61106) UPPER WEAR (REFERENCE 755B TECH MANUAL)
2	T70444	2	STRAP	LOWER WEAR (REFERENCE 755B TECH MANUAL) (SUB T80313)
2	T80313	2	STRIP	(SUB FOR T78946) (REFERENCE 755B TECH MANUAL)
3	AT63343	2	RETAINER	(WITHOUT HEAVY-DUTY SPRING COVER)
4	T66776	2	ISOLATOR	(WITHOUT HEAVY-DUTY SPRING COVER)
5	T66777	2	STRAP	(WITHOUT HEAVY-DUTY SPRING COVER)
6	24H1305	4	Washer	13/32" X 13/16" X 0.065", (WITHOUT HEAVY-DUTY SPRING COVER)
7	19H3065	4	Cap Screw	3/8" X 2", (WITHOUT HEAVY-DUTY SPRING COVER)
8	19H1340	6	CAP SCREW	HS, SAE 8, 5/8" X 1-1/2"
9	T497T	16	WASHER	-
10	AT67063	1	GUARD	ROCK, L.H.
11	AT67062	1	GUARD	ROCK, R.H.
12	19H2641	6	Cap Screw	HS, SAE 8, 5/8" X 3-1/4"
13	19H3383	8	Cap Screw	HS, SAE 8, 7/8" X 2-1/4"
14	T19572	8	Washer	-
15	T70250	4	PIN	-
16	T57092	2	REINFORCEMENT	(SUB T80312)
16	T80312	2	BAR	(SUB FOR T78955)
17	AT67061	1	GUIDE	-
18	T70246	2	PIN	-
19	AT67060	1	GUIDE	-
20	R28575	4	Washer	-
21	19H3417	4	Cap Screw	HS, SAE 8, 1" X 3"
22	19H3333	2	Cap Screw	HS, SAE 8, 7/8" X 2-3/4"
23	T19572	2	Washer	-
24	19H3158	4	Cap Screw	HS, SAE 8, 3/4" X 2"
25	R78019	4	Washer	(SUB FOR T21397)
26	T70247	1	PIN	-
27	T55707	2	BUSHING	-
28	T59245	1	SHIELD	IDLER WEAR
29	AT80698	1	FRAME	(SUB FOR AT67809)

TRACK FRAME AND ROCK GUARDS (SERIAL NO. 374065- ) [01B08]

Нет текстового описания
