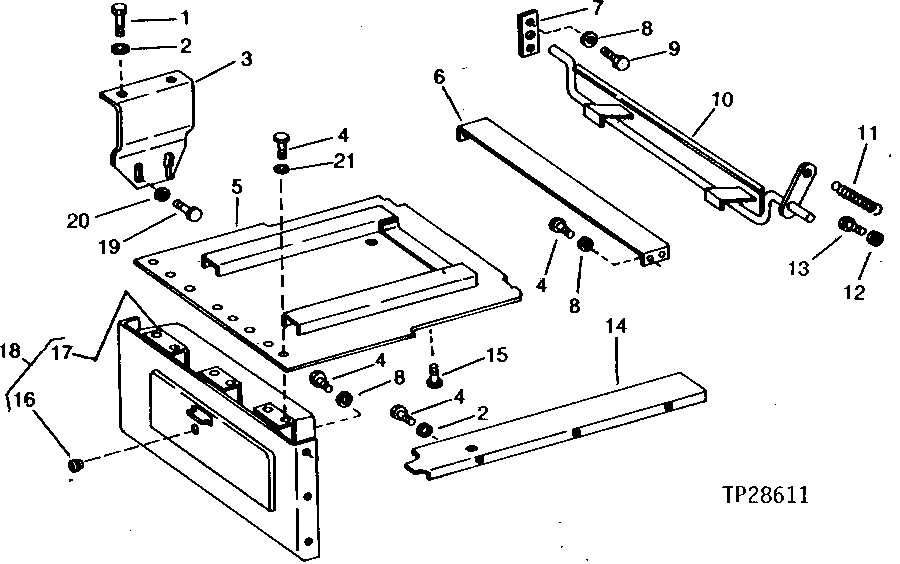

SEAT SUPPORTS (WITHOUT CAB) (SERIAL NO. -700438) NOTE: SOME MACHINES BELOW (SERIAL NO. -700438) MAY HAVE BEEN CHANGED TO CONFORM TO (SERIAL NO. 700439- ) [03F19]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H1648	4	Cap Screw	3/8" X 3/4"
2	12H304	10	Lock Washer	3/8"
3	T48856	1	BRACKET	ARMREST, R.H.
3	T72555	1	BRACKET	ARMREST, R.H. (SUB T123385)
3	T123385	1	BRACKET	ARMREST, R.H. (SUB FOR AT80278 AND AT104383)
3	T48855	1	BRACKET	ARMREST, L.H. (NOT ILLUSTRATED)
3	T72556	1	BRACKET	ARMREST, L.H. (NOT ILLUSTRATED) (SUB T123386)
3	T123386	1	BRACKET	ARMREST, L.H. (NOT ILLUSTRATED) (SUB FOR AT80279 AND AT104382)
4	19H1648	22	Cap Screw	HS, SAE 8, 3/8" X 3/4"
5	AT47437	1	BASE	-
5	AT133005	1	BASE	(SUB FOR AT73807) (ALSO ORDER AT133004, T125813 AND T125814)
6	T48849	1	CHANNEL	-
6	AT133004	1	SUPPORT	(SUB FOR AT73809) (ALSO ORDER AT133005, T125813, T125814)
7	AT47438	1	BRACKET	SEAT HOLD DOWN
8	24H1305	10	Washer	13/32" X 13/16" X 0.065"
9	19H2676	2	Cap Screw	3/8" X 1"
10	AT47439	1	SUPPORT	-
10	AT73808	1	SUPPORT	-
11	E78686	1	Extension Spring	(SUB FOR F56DN)
12	14H732	1	Nut	3/8"
13	19H3239	1	Cap Screw	3/8" X 1-1/4"
14	T125814	1	SUPPORT	(SUB FOR T48846) L.H.
14	T125813	1	SUPPORT	(SUB FOR T48847) R.H. (NOT ILLUSTRATED)
15	19H2676	4	Cap Screw	HS, SAE 8, 3/8" X 1"
16	T28169	1	Bumper	-
17	AT48330	1	HINGE	-
18	AT48223	1	PANEL	(WITH TOOLBOX)
18	AT73541	1	PANEL	(WITHOUT TOOLBOX)
19	19H2676	4	Cap Screw	HS, SAE 8, 3/8" X 1", (SUB FOR R53663)
20	24M7101	4	Washer	11 X 34 X 3 MM, (SUB FOR R53666)
21	R57696	6	Washer	-

SEAT SUPPORTS (WITHOUT CAB) (SERIAL NO. -700438) NOTE: SOME MACHINES BELOW (SERIAL NO. -700438) MAY HAVE BEEN CHANGED TO CONFORM TO (SERIAL NO. 700439- ) [03F19]
