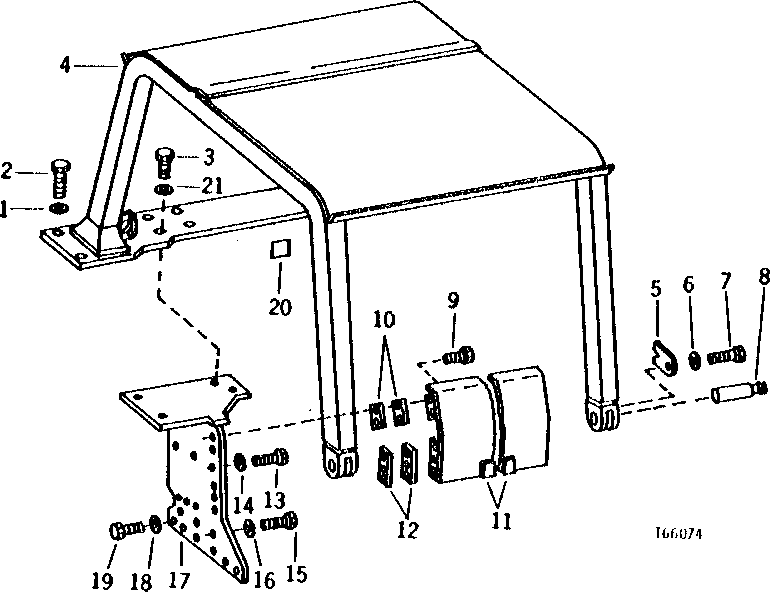

ROLL-OVER PROTECTIVE STRUCTURE (WITH CAB) [03D12]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R78019	8	Washer	(SUB FOR T21397)
1	R78019	4	Washer	(SUB FOR T21397)
2	19H2411	4	Cap Screw	HS, SAE 8, 3/4" X 2-1/2"
3	19H3273	8	CAP SCREW	HS, SAE 8, 3/4" X 3-1/4"
3	19H3027	8	Cap Screw	HS, SAE 8, 3/4" X 3-1/2"
3	19H3027	4	Cap Screw	(WITH STEEL MILL LOADER)
4	AT58754	1	ROLL-GARD	(SUB AT66984)
4	AT139660	1	ROPS	(INCLUDES T104633) (SUB FOR AT66984)
5	T57132	2	RETAINER	-
6	T20168	2	Washer	-
7	19H1781	2	CAP SCREW	1/2" X 3-1/2"
8	T53306	2	PIN	PIVOT
9	19H2898	10	Cap Screw	HS, SAE 8, 1/2" X 1-1/4"
10	T61175	1	STRAP	1.52 MM (.060")
10	T61176	1	STRAP	0.91 MM (.036")
11	AT142359	1	PLATE	(SUB FOR AT82933)
11	AT58758	1	PLATE	-
11	AT82933	1	PLATE	(USE IF AVAILABLE) (SUB FOR AT74991)
12	T61189	1	STRAP	1.52 MM (.060")
12	T61190	1	STRAP	0.91 MM (.036")
13	19H2431	6	CAP SCREW	3/4" X 2-1/4", (SUB FOR 19H1782)
14	T10510	6	Washer	(USE IF AVAILABLE)
14	R78019	6	Washer	(SUB FOR T10510)
15	19H1990	6	Cap Screw	1/2" X 2-1/4"
16	T21242	6	Washer	-
17	AT58756	1	SUPPORT	R.H.
17	AT74630	1	SUPPORT	-
17	AT72154	1	SUPPORT	L.H. (NOT ILLUSTRATED) (SUB AT74630)
17	AT58757	1	SUPPORT	L.H. (NOT ILLUSTRATED)
17	AT74629	1	SUPPORT	-
17	AT72153	1	SUPPORT	R.H. (SUB AT74629)
18	T75690	12	Washer	(SUB FOR T30636, THIS APPLICATION)
19	19H3099	12	CAP SCREW	HS, SAE 8, 1" X 3-3/4"
20	T43705	1	SAFETY SIGN	CAUTION
21	B3627R	8	WASHER	-

ROLL-OVER PROTECTIVE STRUCTURE (WITH CAB) [03D12]
