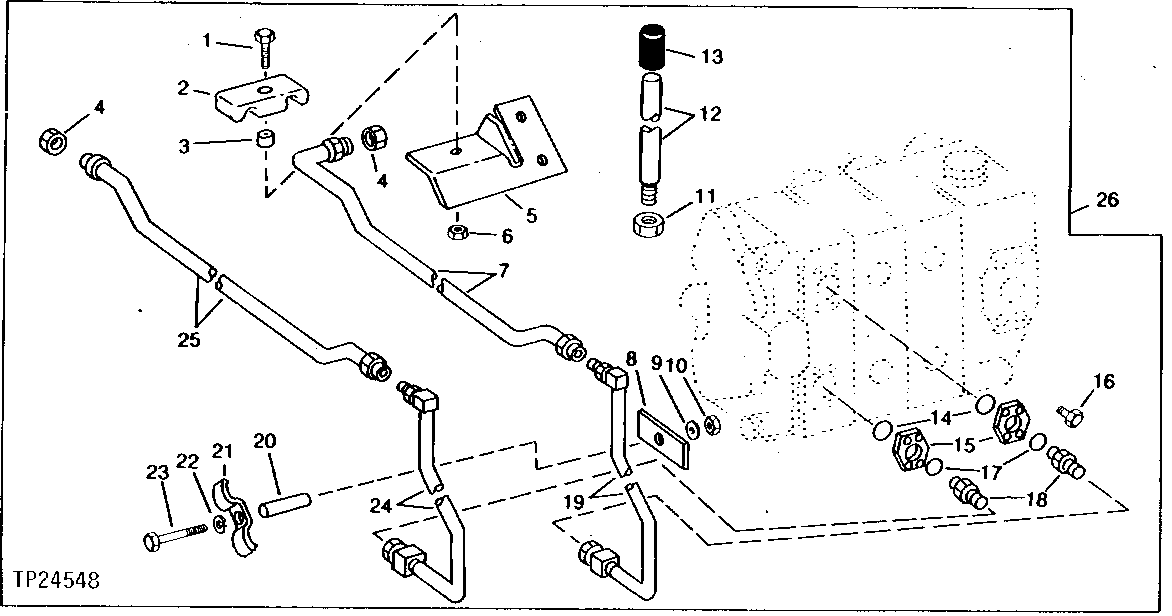

RIPPER HYDRAULIC LINES (WITHOUT DOUBLE SELECTOR VALVE) [04B12]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H3065	1	Cap Screw	3/8" X 2"
2	T38967	1	CLAMP	-
3	28H1521	1	Spacer	3/8" X .562"
4	T29439	2	Fitting	-
5	AT50405	1	BRACKET	CLAMP
6	T11234	1	Lock Nut	-
7	AT58501	1	TUBE	RIPPED REAR, INNER
8	T43358	1	Strap	(SUB FOR T43347)
9	24H1305	2	Washer	13/32" X 13/16" X 0.065"
10	14H812	1	NUT	3/8"
11	14H821	1	Nut	5/8"
12	T120386	1	ROD	(SUB FOR T48087) (ALSO ORDER T37058)
13	-	1	Part 14	(TO HOLD GRIP ON AUXILIARY LEVER)
13	T37058	1	GRIP	(SUB FOR AP17808, THIS APPLICATION)
14	U12037	2	O-Ring	(SUB FOR T72889) (SUB FOR U12037, THIS APPLICATION)
15	T60983	2	Flange Fitting	O-RING, PORT FLANGE
16	19H3111	8	Screw	3/8" X 1.380"
17	R29936	2	O-Ring	-
18	T27603	2	Fitting	TUBE REDUCING
19	AT58516	1	TUBE	RIPPER FRONT, UPPER
20	28H3377	1	Bushing	3/8" X 1-3/4"
21	U13055	1	CLAMP	-
22	12H304	1	Lock Washer	3/8"
23	19H3445	1	Cap Screw	3/8" X 3-3/4"
24	AT58517	1	TUBE	RIPPER FRONT, LOWER
25	AT58502	1	TUBE	RIPPER REAR, OUTER
26	AT50395	1	RIPPER	AUXILIARY HYDRAULIC, (SUB AT79495 IF AVAILABLE)

RIPPER HYDRAULIC LINES (WITHOUT DOUBLE SELECTOR VALVE) [04B12]
