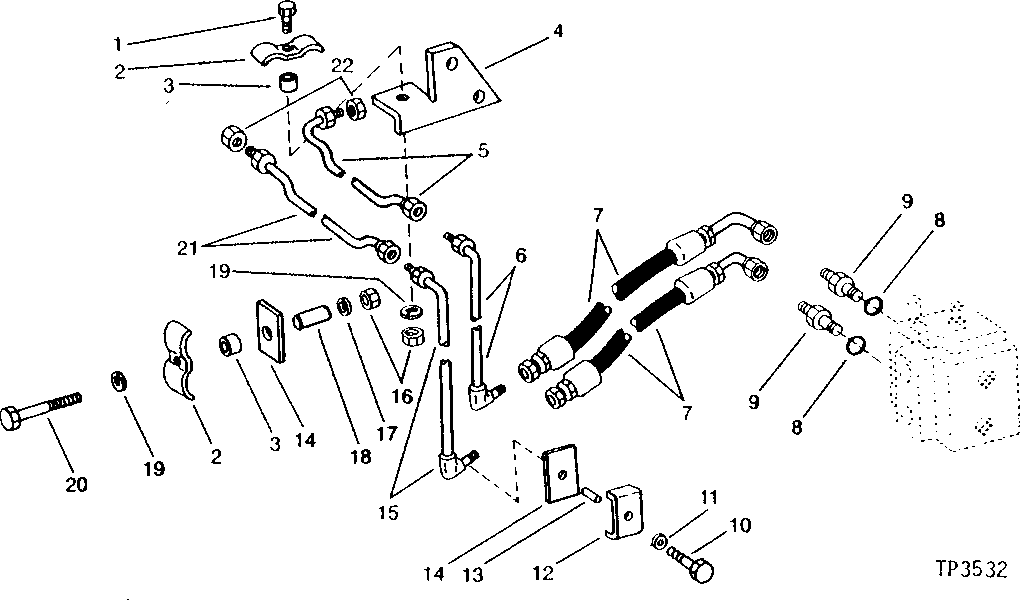

RIPPER HYDRAULIC LINES (WITH DOUBLE SELECTOR VALVE) [04B10]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H3385	1	Cap Screw	1/2" X 1-1/8"
2	U13055	2	CLAMP	-
3	28H1521	2	Spacer	3/8" X .562"
4	AT50405	1	BRACKET	-
5	AT58501	1	TUBE	RIPPER REAR, INNER
6	AT55649	1	LINE	AUXILIARY INNER, FRONT
7	AT64702	2	HYDRAULIC HOSE	-
8	U12547	2	O-Ring	(SUB FOR (2) F3171R)
9	T34433	2	ADAPTER FITTING	TUBE REDUCING
10	19H1726	1	Cap Screw	3/8" X 2-1/4"
11	24H1219	1	Washer	7/16" X 1" X 0.083"
12	T48166	1	CLAMP	(SUB FOR T48166) (ALSO ORDER T25559) DOUBLE TUBE
13	28H1900	1	SPACER	1-1/4" X .690"
14	T43358	2	Strap	(SUB FOR T43347)
15	AT55648	1	LINE	AUXILIARY OUTER, FRONT
16	14H812	2	NUT	3/8"
17	24H1305	2	Washer	13/32" X 13/16" X 0.065"
18	28H3377	1	Bushing	3/8" X 1-3/4"
19	12H304	2	Lock Washer	3/8"
20	19H3445	1	Cap Screw	3/8" X 3-3/4"
21	AT58502	1	TUBE	RIPPER REAR, OUTER
22	T29439	2	Fitting	-
