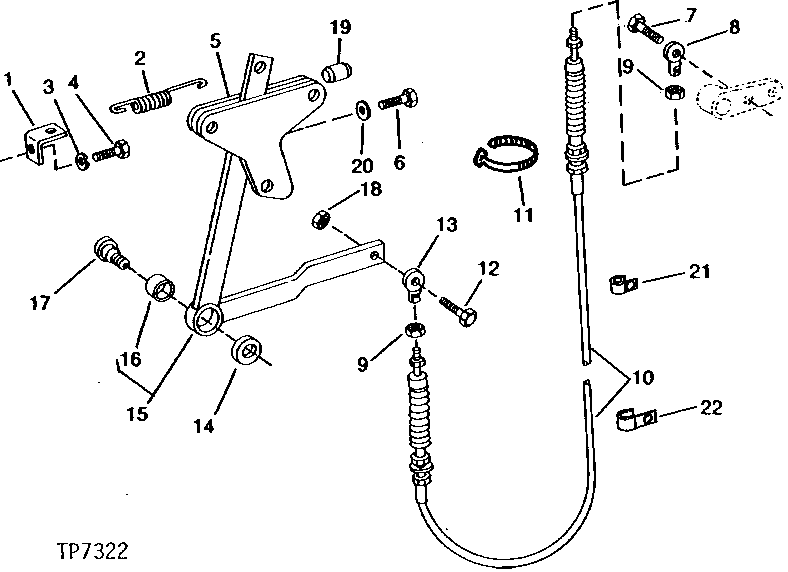

RETURN-TO-NEUTRAL LINKAGE (SERIAL NO. -714909) [01D19]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T53279	1	ANGLE	-
2	T14010	1	SPRING	(SUB FOR T53280, THIS APPLICATION)
3	12H303	1	Lock Washer	5/16"
4	19H2664	1	Cap Screw	5/16" X 3/4"
5	AT69718	1	ADAPTER FITTING	(FURNISH COMPONENTS) (SUB FOR AT58229)
5	AT69718	1	ADAPTER FITTING	(FURNISH COMPONENTS) (SUB FOR AT59383)
6	19H2633	1	Cap Screw	3/8" X 1-1/2"
6	19H2473	1	Cap Screw	1/2" X 1-3/4"
6	19H2473	1	Cap Screw	HS, SAE 8, 1/2" X 1-3/4"
6	19H1721	1	CAP SCREW	1/2" X 1-1/2", (USE WHEN AT59383 HAS BEEN INSTALLED AS A REPLACEMENT PART)
7	19H3374	1	Cap Screw	5/16" X 1-1/4"
8	AT49297	1	Link End	-
9	14H882	2	Nut	5/16"
10	AT113732	1	CABLE	(SUB FOR AT51320) (SUB FOR AT113476 ALSO ORDER (2) AT49297)
11	R44302	1	Tie Band	-
12	19H3552	1	Cap Screw	5/16" X 1-1/2"
13	AT49297	1	Link End	-
14	24M7241	1	Washer	17 X 34 X 4 MM, (SUB FOR T19584 AND T40728)
15	AT51322	1	LEVER	(SUB FOR AT51321) (ALSO ORDER L4694T)
15	T135732	1	ISOLATOR	(SUB FOR T53923)
16	L4694T	1	Bushing	-
17	T53274	1	BOLT	-
18	T16464	1	Lock Nut	-
19	T57506	2	ISOLATOR	-
20	T20168	1	Washer	33/64" X 0.866" X 0.090"
21	T19935	1	Clamp	(WITH CAB) (NO LONGER USED)
22	T13744	1	Clamp	(WITH CAB) (NO LONGER USED)

RETURN-TO-NEUTRAL LINKAGE (SERIAL NO. -714909) [01D19]

Нет текстового описания
