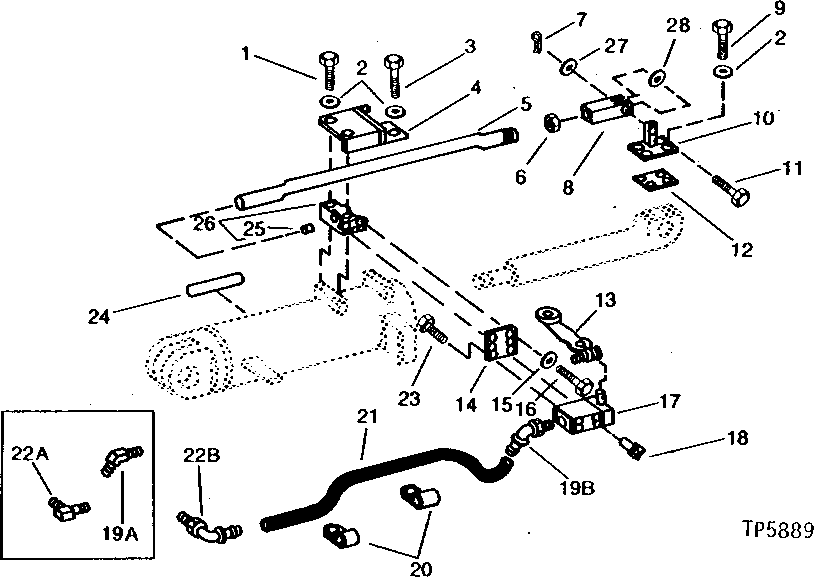

RETURN TO DIG BUCKET POSITIONER WITH SWITCH [03I17]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2732	2	Cap Screw	3/8" X 2-3/4"
2	12H304	8	Lock Washer	3/8"
3	19H1648	2	Cap Screw	3/8" X 3/4"
4	AT56545	1	COVER	-
5	T58852	1	SHAFT	(SUB FOR T58858)
6	14H1048	1	Nut	1"
7	11M7015	1	Cotter Pin	3.200 X 25 MM
8	T58853	1	YOKE	ROD END
9	19H2676	4	Cap Screw	3/8" X 1"
10	AT55075	1	BRACKET	-
11	F2048R	1	PIN FASTENER	-
12	T58851	1	SHIM	0.76 MM (.030")
13	AT58220	1	ARM	-
14	T58855	1	PLATE	-
15	12H303	2	Lock Washer	5/16"
16	19H2284	2	Cap Screw	3/8" X 7/8"
17	AT58219	1	SWITCH	-
18	21H1301	2	SCREW	0.190" X 1/2" RD. HD.
21	-	1	Part 23	5/8" X 56" (MAKE FROM T60811)
21	-	1	Part 24	(CUT TO 56") (MAKE FROM TY22329) (SUB FOR H33803)
23	21H1356	2	Screw	0.190" X 1-1/4", RD. HD.
24	T59018	1	LABEL	BUCKET POSITIONER
25	P47385	1	BUSHING	-
26	AT58559	1	BRACKET	-
27	24H1341	1	Washer	17/32" X 15/16" X 0.060"
28	24H1343	1	SHIM	17/32" X 1-1/2"
29	R76477	1	Tie Band	(SUB FOR T44946 AND A49232) (SUB FOR H77698, THIS APPLICATION)
19A	T27077	1	Hose Fitting	-
19B	T73769	1	HOSE FITTING	-
20A	T27550	1	Clip	-
20B	T28603	2	Clip	-
22A	H62994	1	Hose Fitting	-
22B	T45035	1	HOSE FITTING	-

RETURN TO DIG BUCKET POSITIONER WITH SWITCH [03I17]
