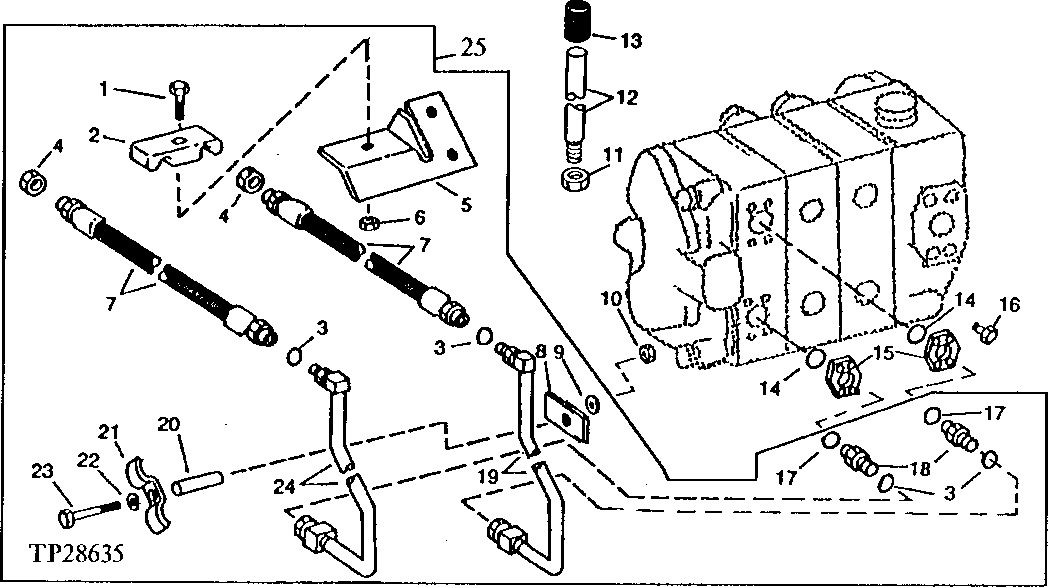

REPLACEMENT RIPPER HYDRAULIC LINES (WITHOUT DOUBLE SELECTOR VALVE) (USE WHEN AT79485 HAS BEEN INSTALLED) [04B13]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2458	1	Cap Screw	3/8" X 3"
2	T52978	1	Clamp	-
3	T77858	4	O-Ring	3/8" X .562"
4	T76557	2	FITTING	-
5	AT50405	1	BRACKET	CLAMP
6	T11234	1	Lock Nut	-
7	AT79488	2	HYDRAULIC HOSE - FABRICATE	1-1/16" X 889 MM (35") X 13/16", RIPPED REAR, INNER AND OUTER
8	T43358	1	Strap	(SUB FOR T43347)
9	24H1305	2	Washer	13/32" X 13/16" X 0.065"
10	14H812	1	NUT	3/8"
11	14H821	1	Nut	5/8"
12	T120386	1	ROD	(SUB FOR T48087) (ALSO ORDER T37058)
13	-	1	Part 14	(TO HOLD GRIP ON AUXILIARY LEVER)
13	T37058	1	GRIP	(SUB FOR AP17808, THIS APPLICATION)
14	U12037	2	O-Ring	(SUB FOR T72889)
15	T60983	2	Flange Fitting	O-RING, PORT FLANGE
16	19H3111	8	Screw	3/8" X 1.380"
17	R29936	2	O-Ring	-
18	38H1194	2	Adapter Fitting	TUBE REDUCING, (SUB FOR T27603, THIS APPLICATION)
19	AT79496	1	OIL LINE	RIPPER FRONT, UPPER
20	28H1522	1	Spacer	0.493" X 0.675" X 11/16"
21	T32707	1	CLAMP	-
22	12H304	1	Lock Washer	3/8"
23	19H3445	1	Cap Screw	3/8" X 3-3/4"
24	AT79497	1	OIL LINE	RIPPER FRONT, LOWER
25	-	1	Part 26	AUXILIARY HYDRAULIC, ( AT79495 USE IF AVAILABLE)

REPLACEMENT RIPPER HYDRAULIC LINES (WITHOUT DOUBLE SELECTOR VALVE) (USE WHEN AT79485 HAS BEEN INSTALLED) [04B13]
