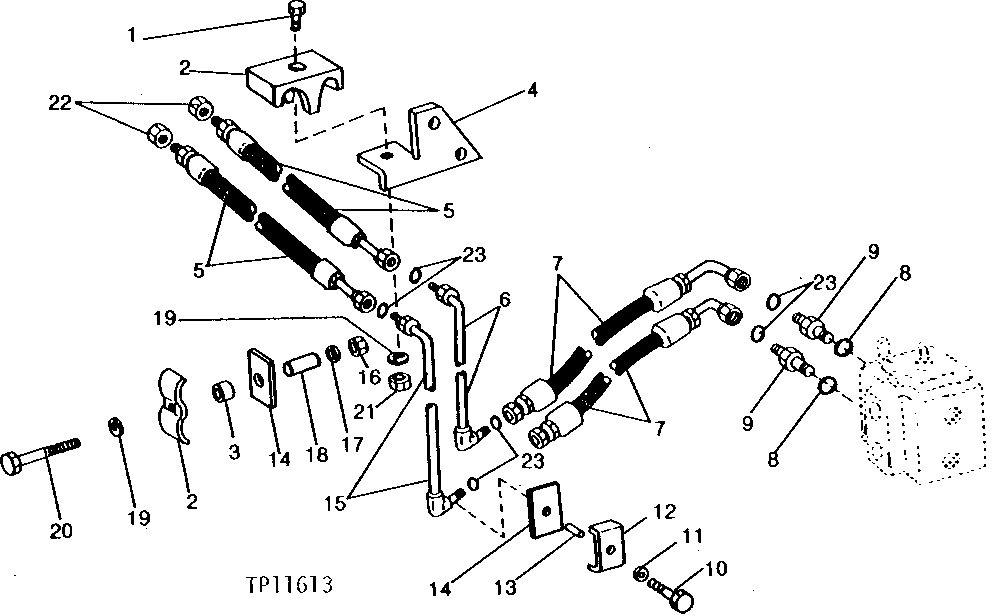

REPLACEMENT RIPPER HYDRAULIC LINES (WITH DOUBLE SELECTOR VALVE) (USE WHEN AT79485 HAS BEEN INSTALLED) [04B11]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2458	1	Cap Screw	3/8" X 3"
2	T52978	1	Clamp	-
3	28H1522	1	Spacer	0.493" X 0.675" X 11/16"
4	AT50405	1	BRACKET	-
5	AT79488	2	HYDRAULIC HOSE - FABRICATE	RIPPER REAR, INNER AND OUTER
6	AT79487	1	OIL LINE	AUXILIARY INNER, FRONT
7	AT167495	2	Hydraulic Hose	(SUB FOR AT79491)
8	U12547	2	O-Ring	(SUB FOR (2) F3171R)
9	38H1163	2	Adapter Fitting	TUBE REDUCING
10	19H1726	1	Cap Screw	3/8" X 2-1/4"
11	24H1219	1	Washer	7/16" X 1" X 0.083"
12	T40705	1	Clamp	(SUB FOR T48166) (ALSO ORDER T25559) DOUBLE TUBE
13	28H1900	1	SPACER	1-1/4" X .690"
14	T43358	2	Strap	(SUB FOR T43347)
15	AT79486	1	OIL LINE	AUXILIARY OUTER, FRONT
16	14H812	1	NUT	3/8"
17	24H1305	2	Washer	13/32" X 13/16" X 0.065"
18	28H3377	1	Bushing	3/8" X 1-3/4"
19	12H304	2	Lock Washer	3/8"
20	19H1296	1	Cap Screw	3/8" X 3-3/4"
21	T11234	1	Lock Nut	-
22	T76557	2	FITTING	-
23	T77858	6	O-Ring	-

REPLACEMENT RIPPER HYDRAULIC LINES (WITH DOUBLE SELECTOR VALVE) (USE WHEN AT79485 HAS BEEN INSTALLED) [04B11]
