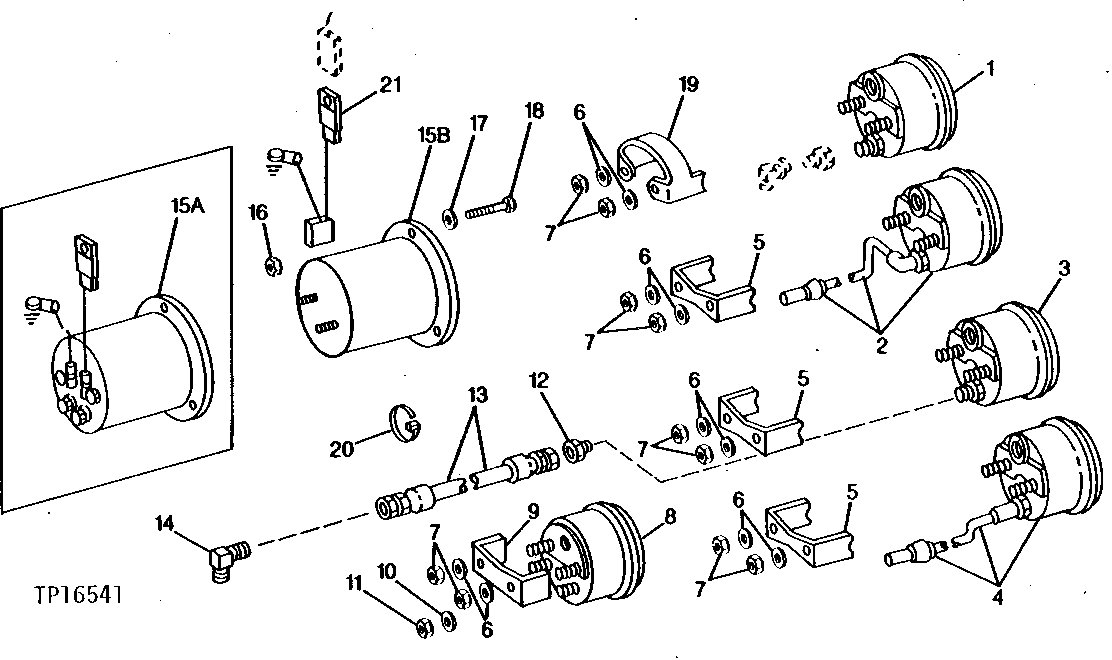

PRESSURE, TEMPERATURE, VOLTMETER AND HOUR METER GAUGES [03C19]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT77728	1	GAUGE	TRANSMISSION OIL PRESSURE, (SUB FOR AT72197 AND AT46475) (ALSO ORDER T74617 AND 14H631)
2	AT149005	1	GAUGE	TRANSMISSION OIL TEMPERATURE, (SUB FOR AT46476)
3	AT37411	1	PRESSURE GAUGE	ENGINE OIL
4	AT104655	1	TEMPERATURE GAUGE	ENGINE COOLANT TEMPERATURE WITH SENDING UNIT, (SUB FOR AT46474) (ALSO ORDER AT104634, AT124052, T118593, (2) 12M7084, 12H315, (3) 14M7100 AND AT151881)
5	T38594	3	BRACKET	-
6	12H295	10	Lock Washer	INTERNAL TOOTH, NO. 10
7	14H631	11	Nut	0.190"
8	AT46477	1	VOLTMETER	(SUB AT116524 AND T118593 BRACKET. REPLACE HARNESS EYELETS WITH R65595 AND U46370)
9	T39395	1	BRACKET	-
10	12H315	1	Lock Washer	0.164"
11	14H605	1	Nut	0.164"
12	T49206	1	Adapter Fitting	-
13	AT56139	1	HOSE	PRESSURE GAGE 2 083 MM LONG (7/16" X 82")
14	T28850	1	Elbow Fitting	90°
16	14H1026	3	Nut	0.138"
17	12H314	3	Lock Washer	0.138"
18	21H1290	3	Screw	0.138" X 1/2"
19	T74617	1	Bracket	(SUB FOR T38594, THIS APPLICATION)
20	R44302	1	Tie Band	-
21	AT85271	1	WIRING LEAD	(USE WITH AT86509)
15A	AT44832	1	Hour Meter	(SUB AT86509 AND AT85271, THIS APPLICATION)
15B	AT226353	1	Hour Meter	(SUB FOR AT86509) (SUB FOR AT80938)

PRESSURE, TEMPERATURE, VOLTMETER AND HOUR METER GAUGES [03C19]
