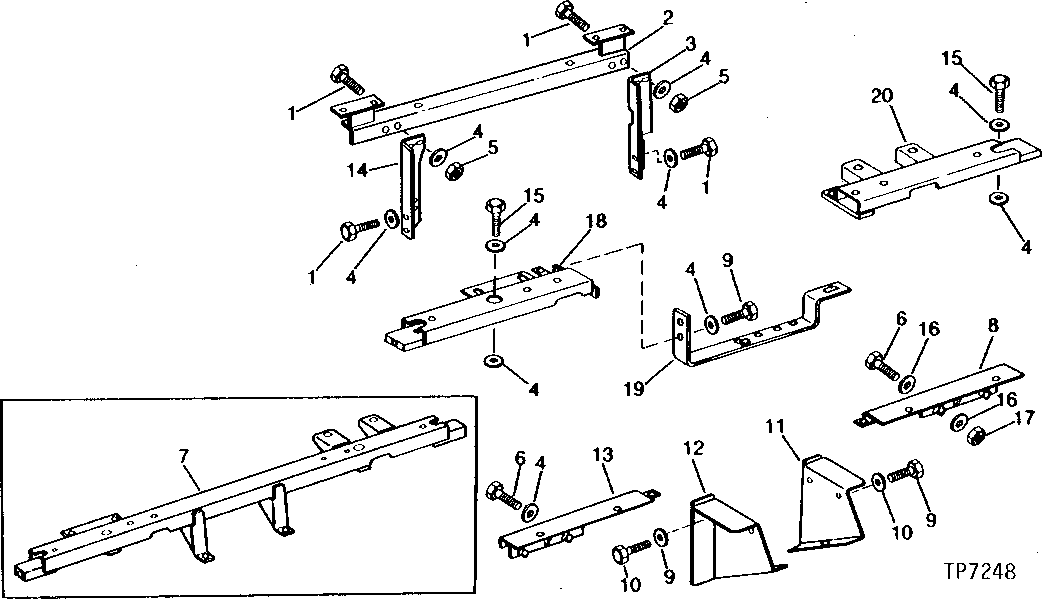

PLATFORM SUPPORTS (WITHOUT CAB) NOTE: SOME MACHINES BELOW (SERIAL NO. -386176) MAY HAVE BEEN CHANGED TO CONFORM TO (SERIAL NO. 386177- ) [03E17]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2898	8	Cap Screw	1/2" X 1-1/4"
2	AT50278	1	SUPPORT	CONSOLE AND BATTERY BOX
3	T51958	1	SUPPORT	LEFT
4	24H1111	16	Washer	17/32" X 1-1/16" X 0.090"
5	14H1040	4	Nut	1/2"
6	19H2993	4	Cap Screw	1/2" X 1-1/2"
6	19H2473	4	Cap Screw	1/2" X 1-3/4"
7	-	1	Part 8	PLATFORM ( AT51485 USE IF AVAILABLE)
8	AT51487	1	SUPPORT	FRONT, L.H.
9	19H3472	4	Cap Screw	5/8" X 9-3/4"
10	24H1349	4	Washer	9/16" X 1-1/4" X 0.134"
11	AT59622	1	SUPPORT	TOEBOARD, L.H.
12	AT59623	1	SUPPORT	TOEBOARD, R.H.
13	AT51486	1	SUPPORT	FRONT, R.H.
14	T51957	1	SUPPORT	-
15	19H1990	4	Cap Screw	1/2" X 2-1/4"
16	24H1111	4	Washer	17/32" X 1-1/16" X 0.090"
16	T21228	8	Washer	-
17	14H1040	4	Nut	1/2"
18	AT72115	1	CHANNEL	-
19	AT80972	1	SUPPORT	(SUB FOR AT72037)
20	AT72116	1	SUPPORT	-

PLATFORM SUPPORTS (WITHOUT CAB) NOTE: SOME MACHINES BELOW (SERIAL NO. -386176) MAY HAVE BEEN CHANGED TO CONFORM TO (SERIAL NO. 386177- ) [03E17]
