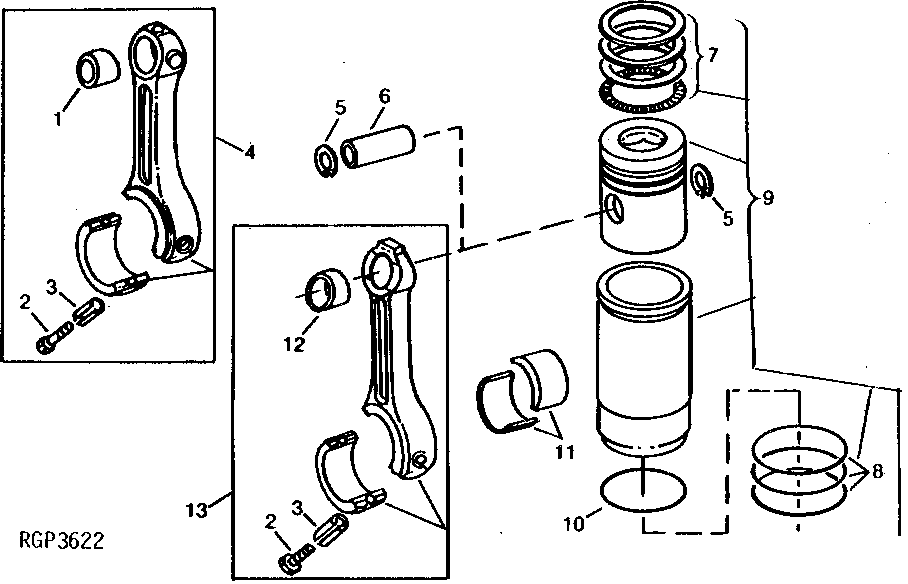

PISTON, RINGS, LINERS, AND CONNECTING RODS [02B22]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R60197	6	BUSHING	(USE WITH R66925 OR R57484)
2	R66453	12	Cap Screw	(SUB FOR R48316)
3	R48317	12	Sleeve	-
4	AR86985	6	CONNECTING ROD	(MARKED R66925 OR R57484) (SUB FOR AR69037) (SUB SE500499 AND RE20291)
5	N51168	12	Snap Ring	-
6	R64451	6	Piston Pin	-
7	AR82355	6	Piston Ring Kit	-
8	AR72351	6	O-Ring Kit	-
9	RE40476	6	PISTON-LINER KIT	(B) (MARKED RE40433 OR RE42231)
9	RE20288	6	PISTON-LINER KIT	(B) (MARKED AR85997 OR RE20275) (SUB FOR RE13847) (SUB RE40476)
9	RE20291	6	PISTON-LINER KIT	(A) (MARKED AR85997 OR RE20275) (SUB FOR AR89630)
9	AR84089	6	PISTON-LINER KIT	(A) (MARKED AR69038) (SUB FOR AR77558) (USE WITH BLOCK MARKED R57424 OR R66925)
10	R81276	1	Shim	0.05 MM
10	R81277	1	Shim	0.10 MM
11	AR101271	1	Bearing	STD (PKG.(2) R74671 OR (2) R75148) (SUB FOR AR101271)
11	AR104129	1	Bearing	0.05 MM (.002") US, (PKG.(2) R60198, (2) R75166 0R (2) R76649) (SUB FOR AR73026)
11	AR104130	1	Bearing	0.25 MM (.010") US, (PKG.(2) R60199, (2) R75167 OR (2) R76650) (SUB FOR AR73027)
11	AR104131	1	Bearing	0.50 MM (.020") US, (PKG.(2) R60200, (2) R75158 OR (2) R76651) (SUB FOR AR73028)
11	AR104132	1	Bearing	0.75 MM (.030") US, (PKG.(2) R60201, (2) R75165 OR (2) R76652) (SUB FOR AR73029)
12	R69045	6	Bushing	(USE WITH R63959) (MARKED R63960)
13	AR79366	6	Connecting Rod	(MARKED R63959) (SUB SE500499)
13	SE500499	6	Connecting Rod Reman	(REMANUFACTURED)

PISTON, RINGS, LINERS, AND CONNECTING RODS [02B22]
