Открытый узел

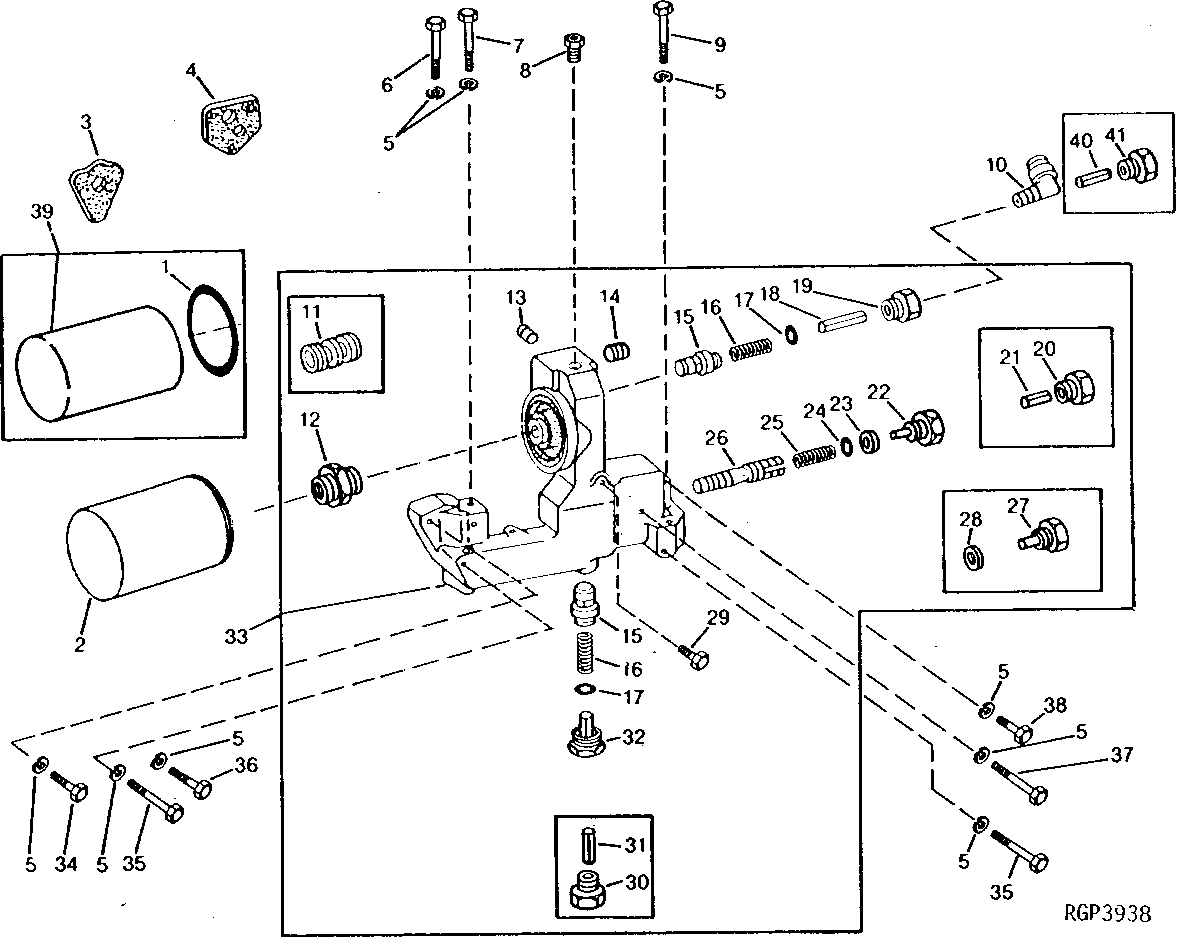

OIL PRESSURE REGULATING HOUSING AND FILTER [02D11]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R43660	1	Packing	(USE WITH AR43261, AR98329 OR RE57394)
2	RE46380	1	Oil Filter	(MARKED RE46380) (SUB RE57394)
3	R49485	1	Gasket	-
4	R49484	1	Gasket	-
5	12H304	10	Lock Washer	3/8"
6	19H2639	1	Cap Screw	3/8" X 3-3/8"
7	19H2345	1	Cap Screw	3/8" X 5-1/2"
8	15H607	1	Pipe Bushing	3/4" X 1/4"
9	19H1944	2	Cap Screw	3/8" X 2-3/4"
10	R67364	1	Elbow Fitting	-
11	R43429	1	FITTING	(USE WITH AR43261) (SUB R104621 AND AR101278, APPL)
12	R104621	1	Adapter Fitting	(USE WITH AR98329) (SUB FOR R73913)
13	RE57836	3	Pipe Plug	1/2", (SUB FOR AR72319 OR 15H624)
14	15H690	5	Pipe Plug	3/4", (SUB FOR AR72318)
15	R49464	2	VALVE	BYPASS
16	R26151	2	SPRING	-
17	U17409	2	O-Ring	-
18	34H366	1	SPRING PIN	1/2" X 1"
19	R67319	1	ADAPTER FITTING	-
20	R71483	1	DRAIN PLUG	(SUB AR105510, APPL)
21	34H393	1	PIN FASTENER	7/16" X 1-1/8"
22	AR105510	1	DRAIN PLUG	-
23	U40750	4	Washer	-
24	U17409	1	O-Ring	-
25	R43548	1	Spring	-
26	R43428	1	VALVE	PRESSURE REGULATING
26	R77003	1	VALVE	PRESSURE REGULATING
27	RE10834	1	DRAIN PLUG	(SUB FOR R43425)
28	R43424	1	WASHER	-
29	R55233	1	Pipe Plug	-
29	R104592	1	Pipe Plug	-
30	R71483	1	DRAIN PLUG	(SUB R49465 AND 34H313)
31	34H393	1	PIN FASTENER	7/16" X 1-1/8", (USE WITH R71483)
32	R86875	1	Fitting Plug	(SUB FOR R71483 OR R49465, APPL)
33	AR94082	1	HOUSING	(MARKED R71485) (SUB RE12770)
33	RE12770	1	KIT	(MARKED R71485 OR R77939)
33	AR90475	1	HOUSING	(MARKED R48349 OR R68157) (SUB RE12770) (SUB FOR AR67461)
34	19H2128	1	CAP SCREW	3/8" X 3"
35	19H1854	2	Cap Screw	3/8" X 3-3/4"
36	19H1819	1	Cap Screw	3/8" X 2-1/8"
37	19H2023	1	CAP SCREW	3/8" X 3-1/4"
38	19H3483	1	Cap Screw	3/8" X 1-1/8"
39	AR43634	1	OIL FILTER	(MARKED AR43261 OR AR43634) (SUB RE57394 AND R104621, APPL)
39	AR101278	1	OIL FILTER	(MARKED AR98329) (SUB RE57394)
39	RE57394	1	Oil Filter	(MARKED RE57394)
40	34H313	1	Spring Pin	1/4" X 1-1/8"
41	R49465	1	DRAIN PLUG	-

OIL PRESSURE REGULATING HOUSING AND FILTER [02D11]

Нет текстового описания
