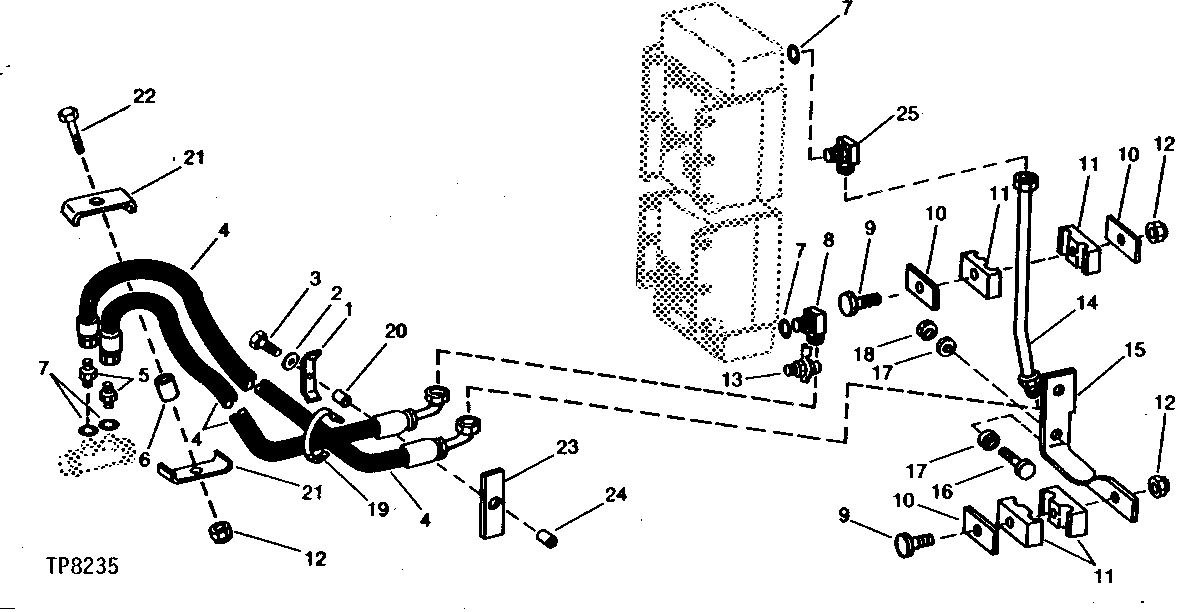

OIL COOLER HYDRAULICS (SERIAL NO. 376121-714980) [01H07]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T40739	1	CLAMP	(WITH STEEL MILL LOADER)
1	U44385	1	CLAMP	-
2	12H304	1	Lock Washer	3/8"
3	19H3404	1	Cap Screw	3/8" X 4"
3	19H2855	1	Cap Screw	3/8" X 3-1/4" (WITH STEEL MILL LOADER)
4	AT71362	2	HYDRAULIC HOSE - FABRICATE	-
4	AT73653	2	HYDRAULIC HOSE	(STEEL MILL LOADER) (NOT ILLUSTRATED)
5	T26767	2	Fitting	-
6	28H1553	1	Spacer	1/2" X 1-7/16"
7	R29936	3	O-Ring	-
8	AT56812	1	ELBOW FITTING	-
9	19H2458	2	Cap Screw	3/8" X 3"
10	T59833	3	STRAP	-
11	T59832	4	CLAMP	-
12	T11234	3	Lock Nut	-
13	AT13740	1	Drain Valve	-
14	AT57509	1	TUBE	INLET
15	T59831	1	BRACKET	-
16	19H3385	2	Cap Screw	1/2" X 1-1/8"
17	24H1308	4	Washer	13/32" X 1" X 0.134"
18	14H812	2	NUT	3/8"
19	N189220	1	Tie Band	(SUB FOR AT42520 OR AA21510)
20	28H1553	1	Spacer	1/2" X 1-7/16"
20	28H2552	1	SPACER	1/2" X 1-1/8" (WITH STEEL MILL LOADER) (BETWEEN CLAMP AND PLATE)
21	T29853	2	CLAMP	-
22	19H3065	1	Cap Screw	3/8" X 2"
23	T48730	1	STRAP	-
24	28H1731	1	BUSHING	1/2" X 11/16"
25	X2503-16-16	1	ELBOW FITTING	(SUB FOR AU42832)

OIL COOLER HYDRAULICS (SERIAL NO. 376121-714980) [01H07]
