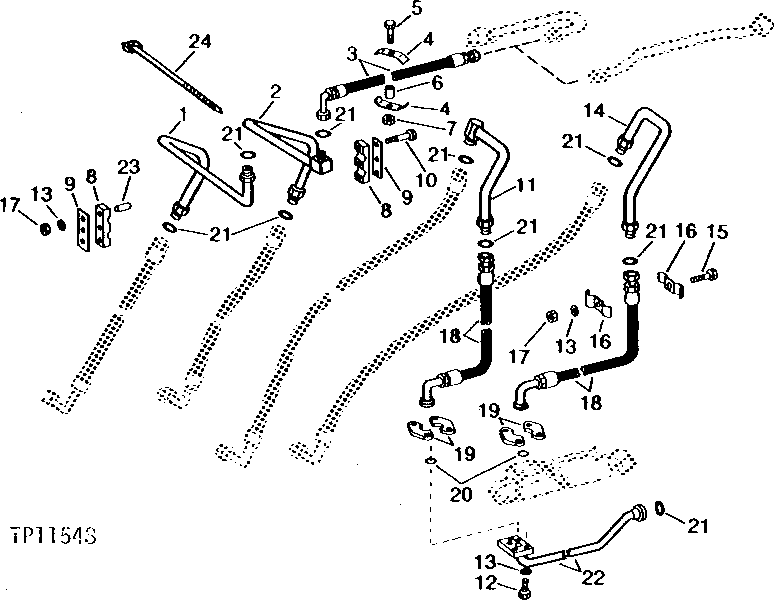

LOADER HYDRAULICS (UPPER RIGHT-HAND) (SERIAL NO. 714981- ) [03K22]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT79520	1	OIL LINE	BUCKET DUMP
2	AT79519	1	OIL LINE	BUCKET ROLLBACK
3	AT79512	2	HYDRAULIC HOSE - FABRICATE	1-7/16" X 921 MM (36-1/4") X 1-7/16"
3	AT79535	2	HYDRAULIC HOSE - FABRICATE	1-7/16" X 921 MM (36-1/4") X 1-7/16", (WITH STEEL MILL LOADER) (NOT ILLUSTRATED)
4	T29853	2	CLAMP	-
4	T40739	2	CLAMP	(WITH STEEL MILL LOADER) (NOT ILLUSTRATED)
5	19H3065	1	Cap Screw	3/8" X 2"
5	19H2732	1	Cap Screw	3/8" X 2-3/4", (WITH STEEL MILL LOADER) (NOT ILLUSTRATED)
6	28H1953	1	Spacer	3/8" X 1/2"
6	T50036	1	Bushing	(WITH STEEL MILL LOADER) (NOT ILLUSTRATED)
7	T11234	1	Lock Nut	-
8	T52409	2	CLAMP	-
9	T120017	2	STRAP	(SUB FOR T48169)
10	19H1944	3	Cap Screw	3/8" X 2-3/4"
11	AT59330	1	TUBE	BOOM LOWER, (SUB FOR AT79522)
12	19H3239	8	Cap Screw	3/8" X 1-1/4"
13	12H304	15	Lock Washer	3/8"
14	AT79521	1	LINE	BOOM RAISE
15	T22874	2	BOLT	-
16	T27602	4	CLAMP	-
17	14H812	5	NUT	3/8"
18	AT79531	2	HYDRAULIC HOSE - FABRICATE	1" X 959 MM (37-3/4") X 1-7/16"
19	H61354	4	Flange Fitting	-
20	U12037	2	O-Ring	(SUB FOR T72889)
21	T76938	9	O-Ring	-
22	AT50669	1	TUBE	BOOM CYLINDER
23	T48168	3	BUSHING	-
24	R76477	1	Tie Band	(SUB FOR T44946 AND A49232) (SUB FOR H77698, THIS APPLICATION)
