LOADER HYDRAULICS (UPPER LEFT-HAND) (SERIAL NO. -714980) [03K23]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

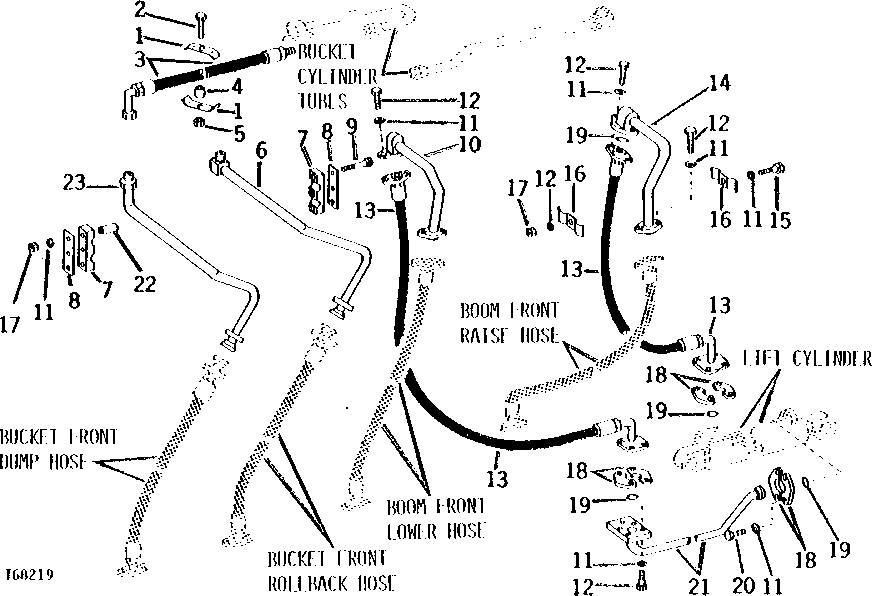

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T40739	2	CLAMP	(WITH STEEL MILL LOADER) (NOT ILLUSTRATED)
1	T29853	2	CLAMP	-
2	19H3065	1	Cap Screw	3/8" X 2"
2	19H2732	1	Cap Screw	3/8" X 2-3/4", (WITH STEEL MILL LOADER) (NOT ILLUSTRATED)
3	AT54670	2	HYDRAULIC HOSE - FABRICATE	1-5/16" X 921 MM (36-1/4") X 1-5/16"
3	AT73687	2	HYDRAULIC HOSE - FABRICATE	1-5/16" X 921 MM (36-1/4") X 1-5/16", (WITH STEEL MILL LOADER) (NOT ILLUSTRATED)
4	28H1953	1	Spacer	3/8" X 1-7/16"
4	T50036	1	Bushing	(WITH STEEL MILL LOADER) (NOT ILLUSTRATED)
5	T11234	1	Lock Nut	-
6	AT59533	1	TUBE	BUCKET ROLLBACK
7	T52409	2	CLAMP	-
8	T120017	2	STRAP	(SUB FOR T48169)
9	19H1944	3	Cap Screw	3/8" X 2-3/4"
10	AT59531	1	TUBE	BOOM LOWER
11	12H304	25	Lock Washer	3/8"
12	19H3239	1	Cap Screw	3/8" X 1-1/4"
13	AT59534	2	HYDRAULIC HOSE - FABRICATE	1" X 959 MM (37-3/4") X 1"
14	AT59530	1	TUBE	BOOM
15	19H3217	2	Cap Screw	3/8" X 1-3/4"
16	T27602	4	CLAMP	-
17	14H812	5	NUT	3/8"
18	H61354	6	Flange Fitting	(SUB FOR R29844)
19	U12037	6	O-Ring	(SUB FOR T72889) (SUB FOR U12037, THIS APPLICATION)
20	19H3239	4	Cap Screw	3/8" X 1-1/4"
21	AT50669	1	TUBE	BOOM CYLINDER
22	T48168	3	BUSHING	-
23	AT59532	1	TUBE	BUCKET DUMP
