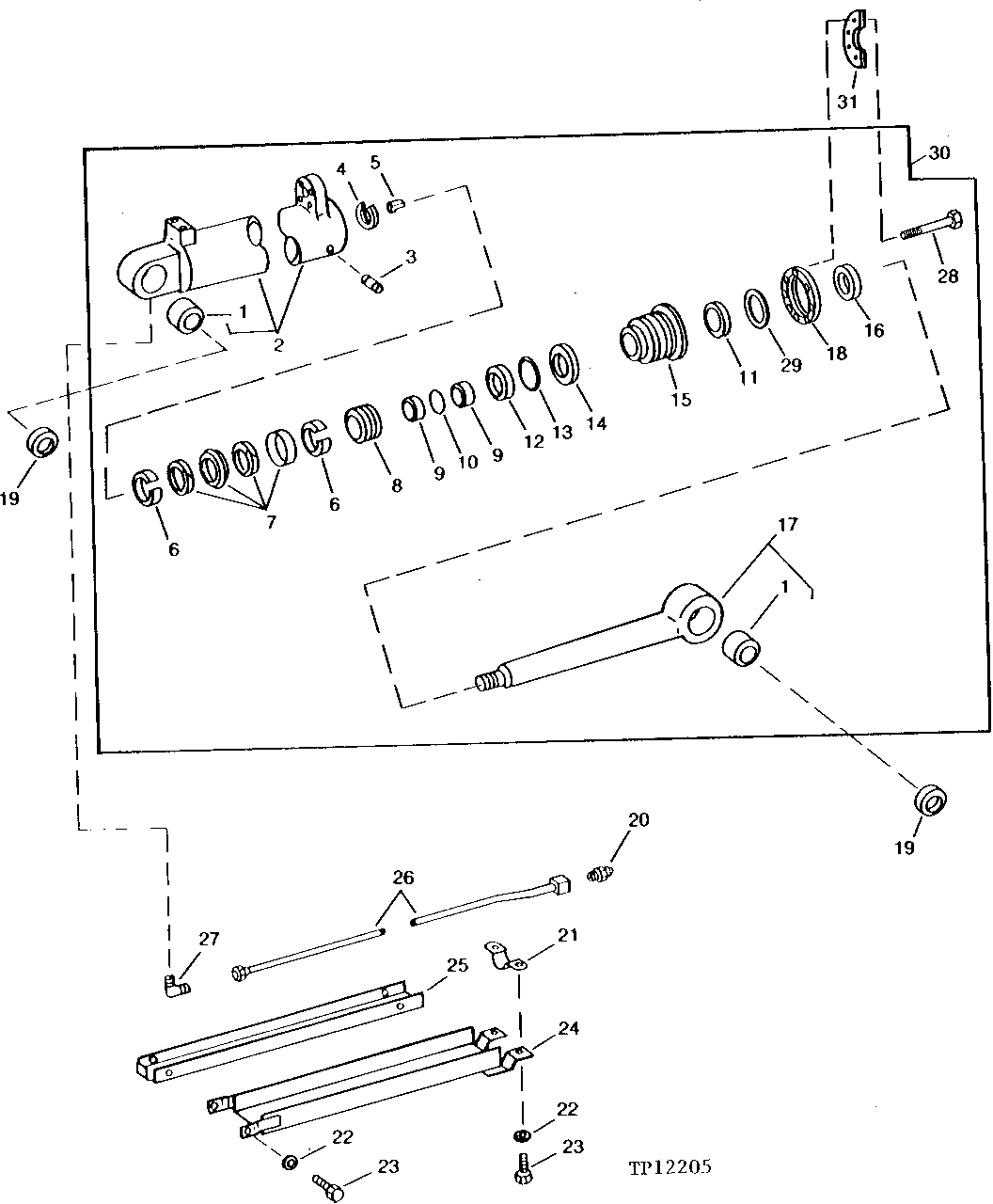

LIFT CYLINDER AND SHIELDS (STEEL MILL LOADER) (SERIAL NO. 701677- ) [03J21]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T54405	2	BUSHING	-
2	AT52381	1	BARREL	-
3	22H1077	1	SET SCREW	1/4" X 5/16"
4	R74656	1	SNAP RING	-
5	R74655	1	KEY	-
6	R78603	2	WEAR RING	-
7	RE13498	1	SEAL	-
8	R78602	1	PISTON	-
9	R79254	2	BACK-UP RING	-
10	R74657	1	O-Ring	-
11	R78606	1	SEAL	(SUB R76916) (WITH WATER GLYCOL)
11	R76916	1	SEAL	(WITH HYDRAULIC OIL)
12	T54411	1	WEAR RING	-
13	U43393	1	O-RING	-
14	R78820	1	BACK-UP RING	-
15	R81813	1	GUIDE	-
16	R76918	1	SEAL	-
17	AR100406	1	ROD	-
18	R80284	1	RETAINER	-
19	T53740	4	Seal	-
20	JD7759	1	Lubrication Fitting	-
21	T51136	1	CLAMP	-
22	R57696	6	Washer	-
23	19H2284	6	Cap Screw	3/8" X 7/8"
24	AT57501	1	SHIELD	-
25	T53910	1	SHIELD	-
26	AT51809	1	LINE	-
27	810473800	1	Elbow Fitting	(SUB FOR M48091) 90°
28	19H1849	8	Cap Screw	5/16" X 1-1/4"
29	R81814	1	BACK-UP RING	-
30	RE20324	1	HYDRAULIC CYLINDER	(WITH WATER GLYCOL)
30	RE20321	1	HYDRAULIC CYLINDER	(ALSO ORDER (4) T53740) (WITH HYDRAULIC OIL)
31	T75842	2	GUARD	-

LIFT CYLINDER AND SHIELDS (STEEL MILL LOADER) (SERIAL NO. 701677- ) [03J21]
