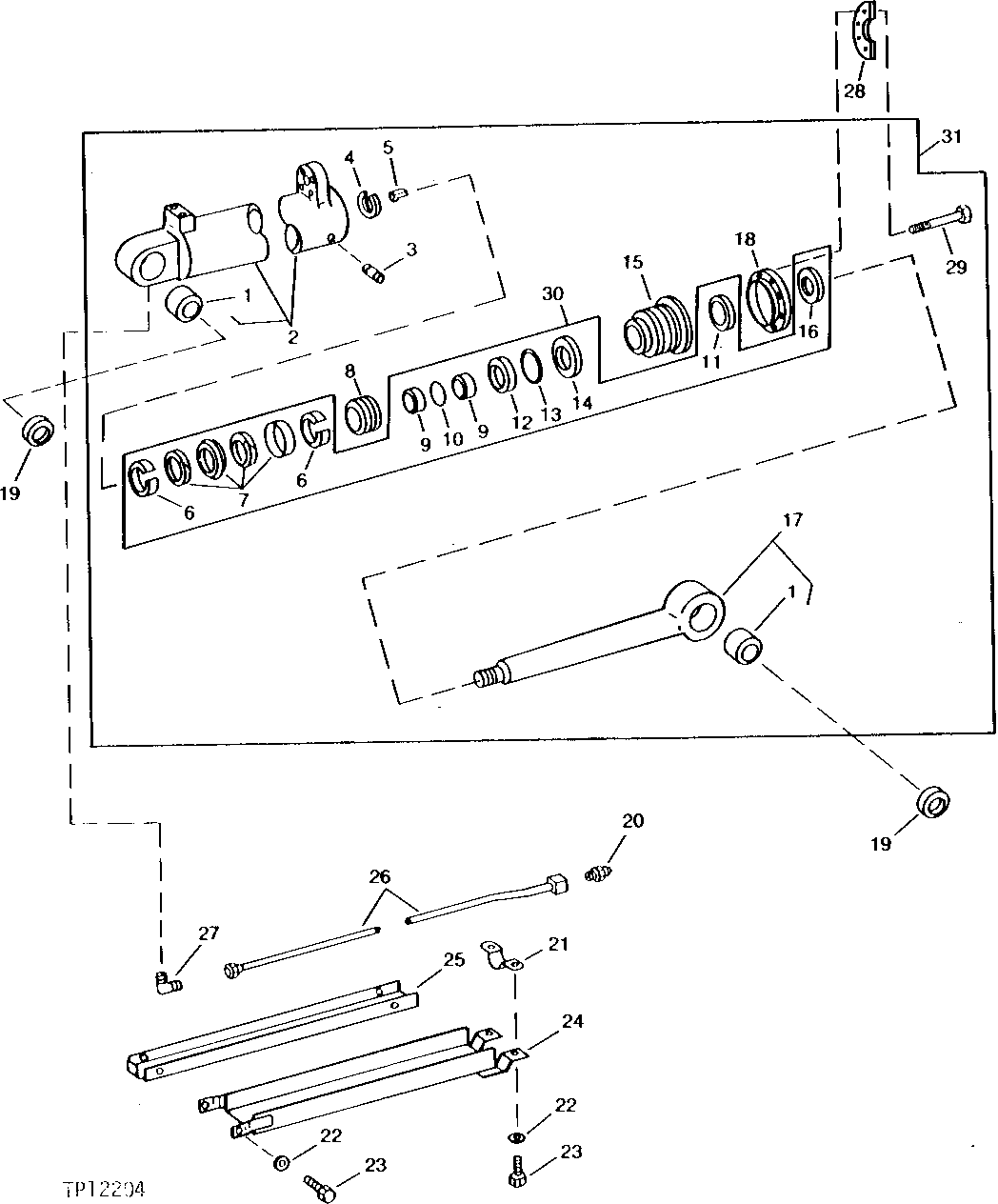

LIFT CYLINDER AND SHIELDS (STEEL MILL LOADER) (SERIAL NO. -701676) [03J18]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T54405	2	BUSHING	-
2	AT52381	1	BARREL	-
3	22H842	1	SET SCREW	1/4" X 5/16"
4	R74656	1	SNAP RING	-
5	R74655	1	KEY	-
6	R78603	2	WEAR RING	-
7	RE13498	1	SEAL	-
8	R78602	1	PISTON	-
9	R74658	2	BACK-UP RING	(SUB R79254)
9	R79254	2	BACK-UP RING	-
10	R74657	1	O-Ring	-
11	R78606	1	SEAL	(SUB R76916) (WITH WATER GLYCOL)
11	R76916	1	SEAL	(WITH HYDRAULIC OIL)
12	T54411	1	WEAR RING	-
13	U43393	1	O-RING	-
14	R78820	1	BACK-UP RING	(SUB FOR U43392, THIS APPLICATION)
14	R78820	1	BACK-UP RING	(SUB FOR U43392, THIS APPLICATION)
15	R76913	1	GUIDE	(SUB R81813 AND R80284)
16	R76918	1	SEAL	-
17	AR100406	1	ROD	-
18	R80284	1	RETAINER	(SUB FOR R76921)
19	T53740	4	Seal	-
20	JD7759	1	Lubrication Fitting	-
21	T51136	1	CLAMP	-
22	R57696	6	Washer	-
23	19H2284	6	Cap Screw	3/8" X 7/8"
24	AT57501	1	SHIELD	-
25	T53910	1	SHIELD	-
26	AT51809	1	LINE	-
27	810473800	1	Elbow Fitting	(SUB FOR M48091) 90°
28	T75842	2	GUARD	-
29	19H1849	8	Cap Screw	5/16" X 1-1/4"
30	RE13492	1	KIT	(WITH WATER GLYCOL) (SUB RE14022 AND RE20326)
30	RE13495	1	HYDRAULIC CYLINDER KIT	(WITH HYDRAULIC OIL) (SUB RE14022 AND RE20323)
31	AR105642	1	HYDRAULIC CYLINDER	(ALSO ORDER (4) T53740) (WITH WATER GLYCOL) ((SUB RE20324)
31	RE13501	1	HYDRAULIC CYLINDER	(WITH HYDRAULIC OIL) (SUB RE20321 AND (4) T53740)

LIFT CYLINDER AND SHIELDS (STEEL MILL LOADER) (SERIAL NO. -701676) [03J18]
