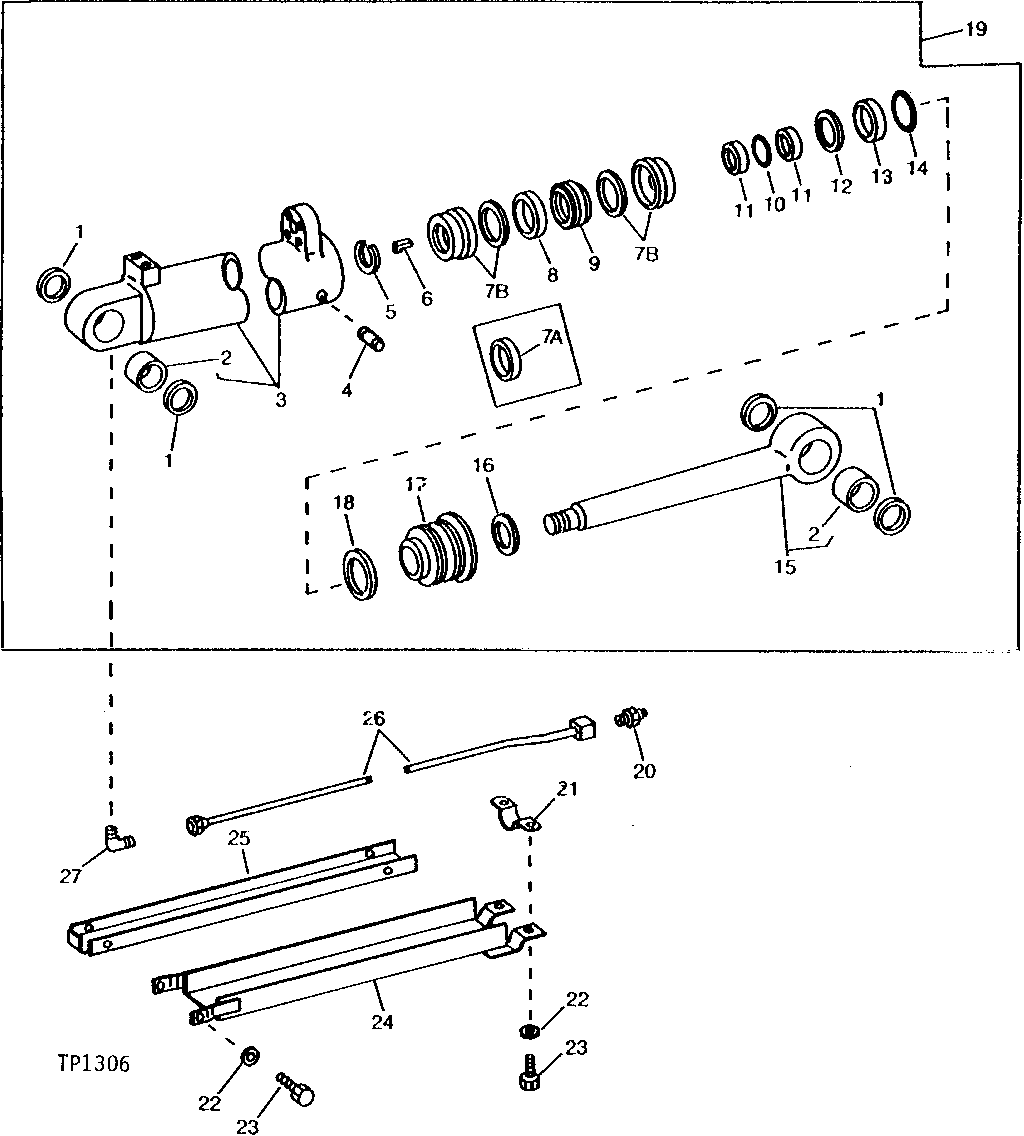

LIFT CYLINDER AND SHIELDS (SERIAL NO. -379861) [03J09]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T53740	4	Seal	-
2	T54405	2	BUSHING	-
3	AT52381	1	BARREL	-
4	22H842	1	SET SCREW	1/4" X 5/16"
5	T46627	1	SNAP RING	(SUB R74656)
6	T46628	1	SHAFT KEY	-
8	U43397	1	WEAR RING	(K)
9	T54413	1	PISTON	(SUB RE14022, R78602, R74657 AND R79254)
10	R41987	1	O-Ring	(K)
11	R79000	2	BACK-UP RING	(K) (SUB FOR U46746, THIS APPLICATION)
12	T54412	1	SEAL	(K)
13	T54411	1	WEAR RING	(K)
14	U43393	1	O-RING	(K)
15	AR88433	1	ROD	(SUB AR100405)
16	T54410	1	Seal	(K)
17	T54409	1	HYDR. CYLINDER ROD GUIDE	(SUB R81813, R80284, RE20326 AND (8) 19H1849)
17	R67874	1	HYDR. CYLINDER ROD GUIDE	(SUB R81813, R80284, RE20326 AND (8) 19H1849)
18	R78820	1	BACK-UP RING	(K) (SUB FOR U43392, THIS APPLICATION)
19	AT52380	1	HYDRAULIC CYLINDER	-
19	AR88432	1	HYDRAULIC CYLINDER	(SUB RE20321)
20	JD7759	1	Lubrication Fitting	-
21	T51136	1	CLAMP	-
22	R57696	6	Washer	-
23	19H2284	6	Cap Screw	3/8" X 7/8"
24	AT57501	1	SHIELD	-
25	T53910	1	SHIELD	-
26	AT51809	1	LINE	-
27	810473800	1	Elbow Fitting	(SUB FOR M48091) 90°
7A	T54415	2	SEAL	(SUB AR91554)
7B	RE11181	2	SEAL	(K) (SUB FOR AR91554)
