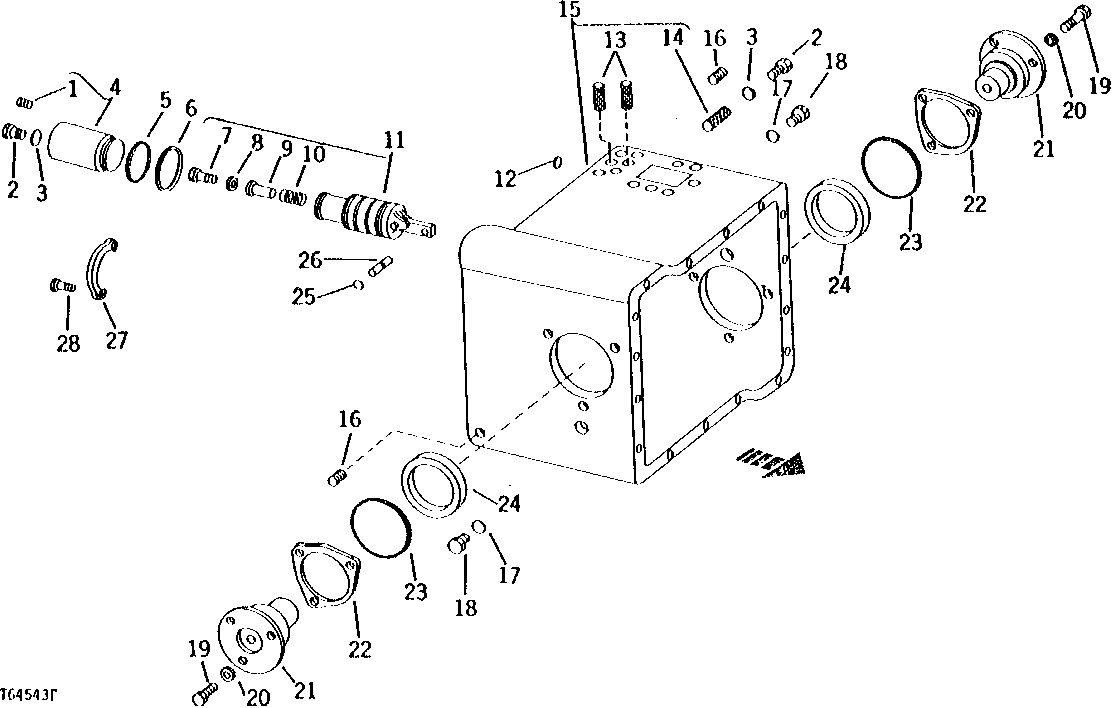

LEFT-HAND TRANSMISSION PUMP HOUSING, TRUNNIONS AND SERVOS [01G01]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T61555	1	PIPE PLUG	-
2	R51031	3	Fitting	-
3	R28782	3	O-Ring	-
4	AT52797	2	SLEEVE	SERVO
5	U44496	2	O-Ring	-
6	T12282	2	O-Ring	-
7	T66482	1	SCREW	-
8	T59620	1	THRUST WASHER	-
9	T59617	1	GUIDE	SPRING
10	T59619	1	SPRING	COMPRESSION
11	AT57362	2	PISTON	(TRANS. SER. NO.-12ZZ99999)
11	AT68537	2	PISTON	(TRANS. SER. NO.30AA00000-)
12	H81608	1	O-Ring	-
13	AT57976	2	SCREEN	(TRANS. SER. NO.-12ZZ99999)
14	AT57977	1	SCREEN	(TRANS. SER. NO.-12ZZ99999)
15	AT58610	1	HOUSING	PUMP WITH SCREENS (TRANS. SER. NO.-12ZZ99999)
15	T71514	1	HOUSING	PUMP WITH SCREENS (TRANS. SER. NO.30AA00000-)
16	15H558	2	Pipe Plug	HEX., SOCKET 1/8"
17	R26906	3	O-Ring	-
18	R27474	2	Drain Plug	-
19	19H2898	6	Cap Screw	1/2" X 1-1/4", (SUB FOR T54924)
20	T21242	6	Washer	-
21	T59618	2	TRUNNION	-
22	AT57365	1	SHIM	TRUNNION
23	M4237T	2	O-Ring	-
24	AT60279	2	TAPERED ROLLER BEARING	-
25	U17408	4	Ring	RETAINING
26	T54863	2	PIN	-
27	T54862	4	RETAINER	SLEEVE
28	37H42	4	SCREW	DRIVE, NO. 10 X 3/8"

LEFT-HAND TRANSMISSION PUMP HOUSING, TRUNNIONS AND SERVOS [01G01]
