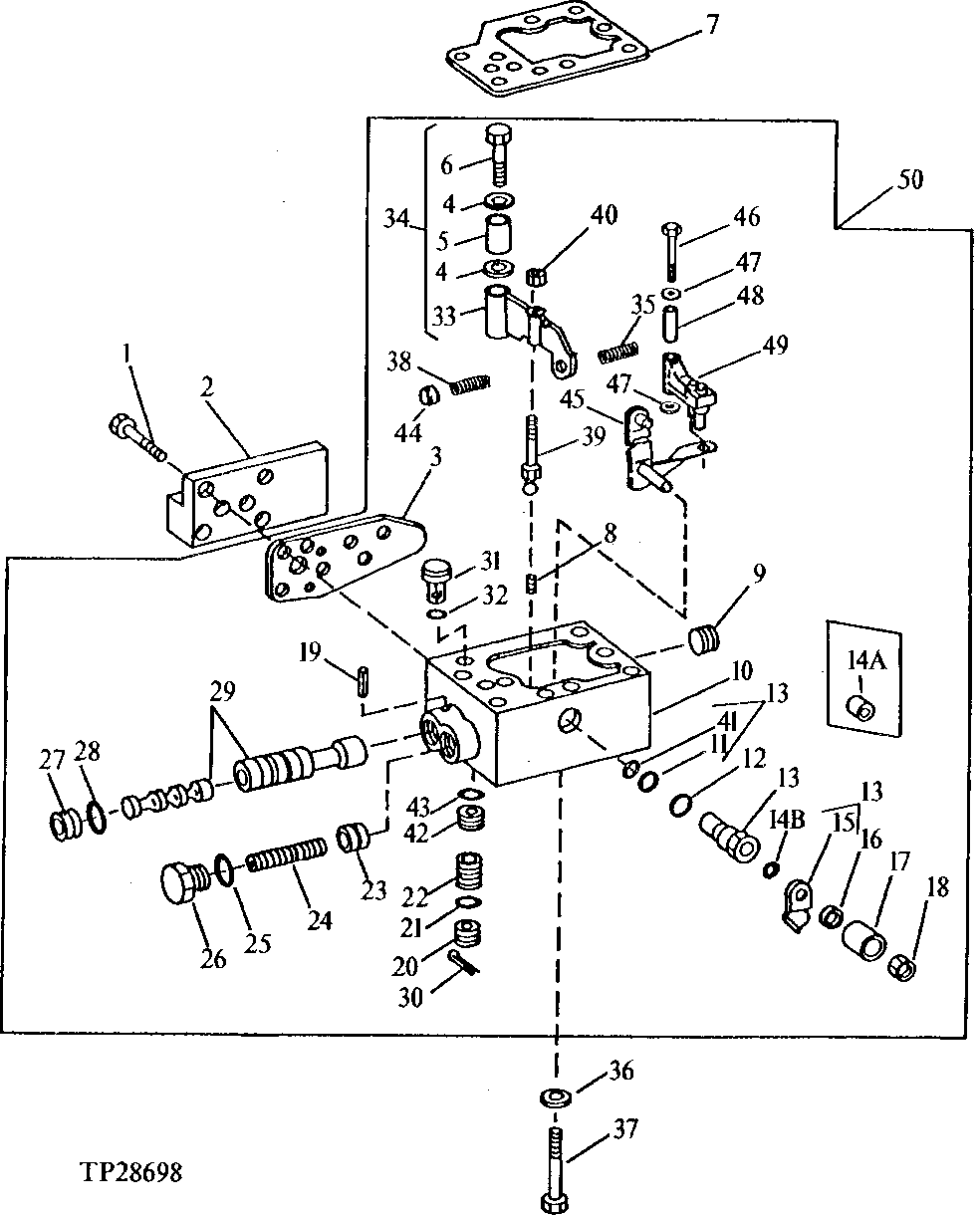

LEFT-HAND AND RIGHT-HAND TRANSMISSION PUMP DISPLACEMENT CONTROL [01F07]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2924	4	Screw	1/4" X 3/4"
2	T67913	1	COVER	-
3	T213195	1	GASKET	(K) (SUB FOR T54939 AND T78380)
4	T54899	2	WASHER	-
5	T54900	1	BUSHING	-
6	T54898	1	SELF-LOCKING SCREW	-
7	T211783	1	GASKET	(K) (SUB FOR T54869 AND T71501)
8	T71689	1	SCREW	(SUB FOR T54892)
9	T54904	1	Union Fitting	-
10	-	1	Part 10	(SUB AT317668) (SUPPLIER DIRECT-GASKET AND MOUNTING BOLTS SHOULD ALSO BE ORDERED)
11	T112206	1	RING	-
12	R26448	1	O-Ring	-
13	AT151226	1	KIT	(SUB FOR T54897 AND T76458)
15	-	1	Part 16	-
16	24H1283	1	Washer	(A) 7/32" X 1/2" X 0.049"
17	T54895	1	SHIELD	(A)
18	T54896	1	LOCK NUT	(A)
19	34H247	1	Spring Pin	1/8" X 3/4"
20	T54940	1	PLUG	(A)
20	T80630	1	PLUG	(A)
21	A3917R	1	O-Ring	(A)
21	A3917R	1	O-Ring	(A)
22	T60034	1	SPOOL	(A) (MARKED A)
22	T60033	1	SPOOL	(A) (SUB FOR T54941)
22	T80628	1	SPOOL	(A)
23	AT56633	1	NUT	-
24	T58987	1	SET SCREW	-
25	R26906	1	O-Ring	-
26	R27474	1	Drain Plug	-
27	T54903	1	PLUG	-
28	R27166	1	O-Ring	-
29	-	1	Part 34	(SUB AT317668) (SUPPLIER DIRECT-GASKET AND MOUNTING BOLTS SHOULD ALSO BE ORDERED)
30	34H220	1	SPRING PIN	(A) 5/64" X 1-1/4"
30	34H243	1	SPRING PIN	(A)
31	AT158094	3	FILTER	(SUB FOR AT68525) (TRANS. SER. NO.30AA00000-)
32	A3917R	3	O-Ring	(A) (TRANS. SER. NO.30AA00000-)
33	-	1	Part 39	(SUB AT69680)
34	AT69680	1	LINK	ASSEMBLY FEEDBACK
35	T75897	1	SPRING	FEEDBACK, (WHITE)
35	T75899	1	SPRING	(SUB FOR (AR) T75898) FEEDBACK, (YELLOW)
35	T75899	1	SPRING	FEEDBACK, (PINK)
35	T75900	1	SPRING	FEEDBACK, (GREEN)
35	T75901	1	SPRING	FEEDBACK, (RED)
36	24H1286	8	Washer	9/32" X 1/2" X 1/16"
37	19H3220	8	Cap Screw	1/4" X 2-1/2"
38	T75896	1	SPRING	NEUTRAL
39	T78374	1	BALL STUD	-
40	T78375	1	LOCK NUT	-
41	AT58680	1	SHIM KIT	SHIM
42	T80630	1	PLUG	(A)
43	A3917R	1	O-Ring	(A)
44	T80627	1	RETAINER	-
45	-	1	Part 55	(A) (SUB AT113005, AT113004, T112206, R26448 AND AT151226)
45	AT113005	1	LINK	(A)
46	19H2721	1	Cap Screw	1/4" X 1-1/2"
47	T82414	2	WASHER	-
48	T112267	1	BUSHING	-
49	-	1	Part 60	(A) (SUB AT113004, AT113005, T112206, R26448 AND AT151226)
49	AT113004	1	LINK	(A)
50	AT317668	1	KIT	(SUB FOR AT68536) REMANUFACTURED PUMP CONTROL VALVE (TRANS. SER. NO.-12ZZ99999)
14A	T54893	1	WASHER	FELT, (SUB T76457)
14B	T76457	1	O-RING	(A)

LEFT-HAND AND RIGHT-HAND TRANSMISSION PUMP DISPLACEMENT CONTROL [01F07]

Нет текстового описания
