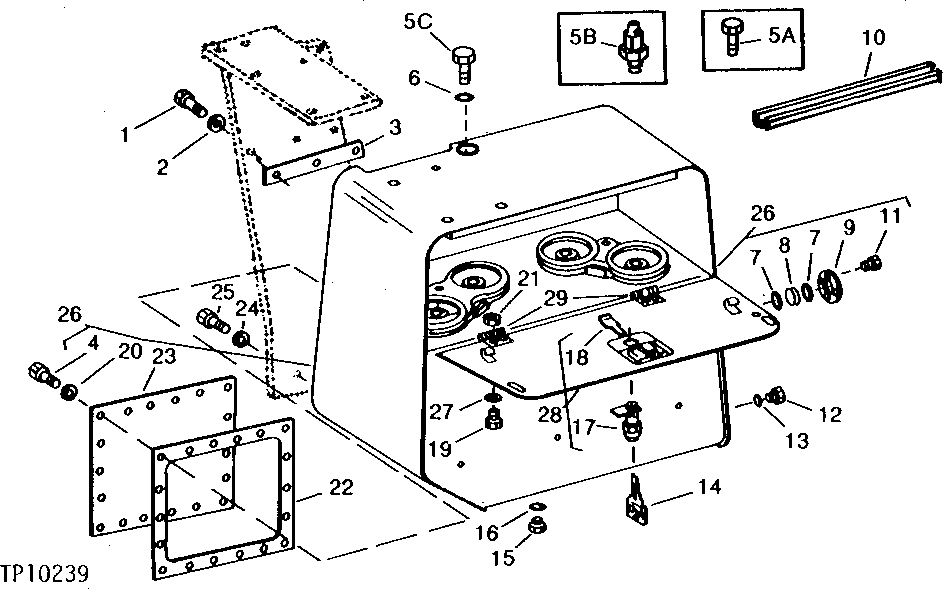

HYDROSTATIC TRANSMISSION SUMP NOTE: SOME MACHINES BELOW (SERIAL NO. -905569) MAY HAVE BEEN CHANGED TO CONFORM TO (SERIAL NO. 705570- ) [01G22]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H1990	3	Cap Screw	1/2" X 2-1/4"
2	T21242	3	Washer	-
3	T128140	1	STRAP	(SUB FOR T56329, T74725 AND T74726) 1.52 MM (.060") SHIM,
3	T56540	1	STRAP	SHIM, 1.52 MM (.060")
3	T74729	1	STRAP	SHIM, 1.52 MM (.060")
3	T74730	1	SHIM	3 MM (.118")
4	19H1648	15	Cap Screw	3/8" X 3/4"
6	U13639	1	O-Ring	-
7	T24549	2	WASHER	(SUB FOR U10289, THIS APPLICATION)
8	U13425	1	WINDOWPANE	-
8	U13552	1	WASHER	-
9	U13551	1	WASHER	WINDOWPANE
10	T58044	2	ISOLATOR	-
11	21H1300	4	SCREW	0.190" X 3/8"
12	R27094	1	Drain Plug	-
13	R26286	1	O-Ring	-
14	AT195302	1	Key	(SUB FOR AR51481 AND AT145929) STARTER SWITCH
15	R27175	1	Drain Plug	-
16	U12547	1	O-Ring	(SUB FOR F3171R)
17	AT55844	1	LOCK	CYLINDER
18	T63640	1	LOCK	SLIDE BOLT
19	03H1500	4	Bolt	RD. HD., 3/8" X 1"
20	12H304	18	Lock Washer	3/8"
21	T11234	4	Lock Nut	-
22	-	1	Part 28	PLASTIC, (SUB T43514)
23	T36092	1	COVER	-
24	T10510	3	Washer	(USE IF AVAILABLE)
24	R78019	3	Washer	(SUB FOR T10510)
25	19H2431	3	CAP SCREW	3/4" X 2-1/4", (SUB FOR 19H1782)
26	AT80582	1	RESERVOIR	(ALSO ORDER (4) T128140, (2) T56540, T74729 AND T74730) (SUB FOR AT54871)
27	24M7296	4	Washer	10.500 X 30 X 2.500 MM
28	AT55841	1	COVER	OUTSIDE, (SUB AT64358)
28	AT64358	1	COVER	OUTSIDE
29	AT58543	2	HINGE	-
5A	T54099	1	Fitting	-
5B	-	1	Part 9	(SUB FOR AT62573) (FURNISH COMPONENTS)
5C	T54099	1	Fitting	-

HYDROSTATIC TRANSMISSION SUMP NOTE: SOME MACHINES BELOW (SERIAL NO. -905569) MAY HAVE BEEN CHANGED TO CONFORM TO (SERIAL NO. 705570- ) [01G22]
