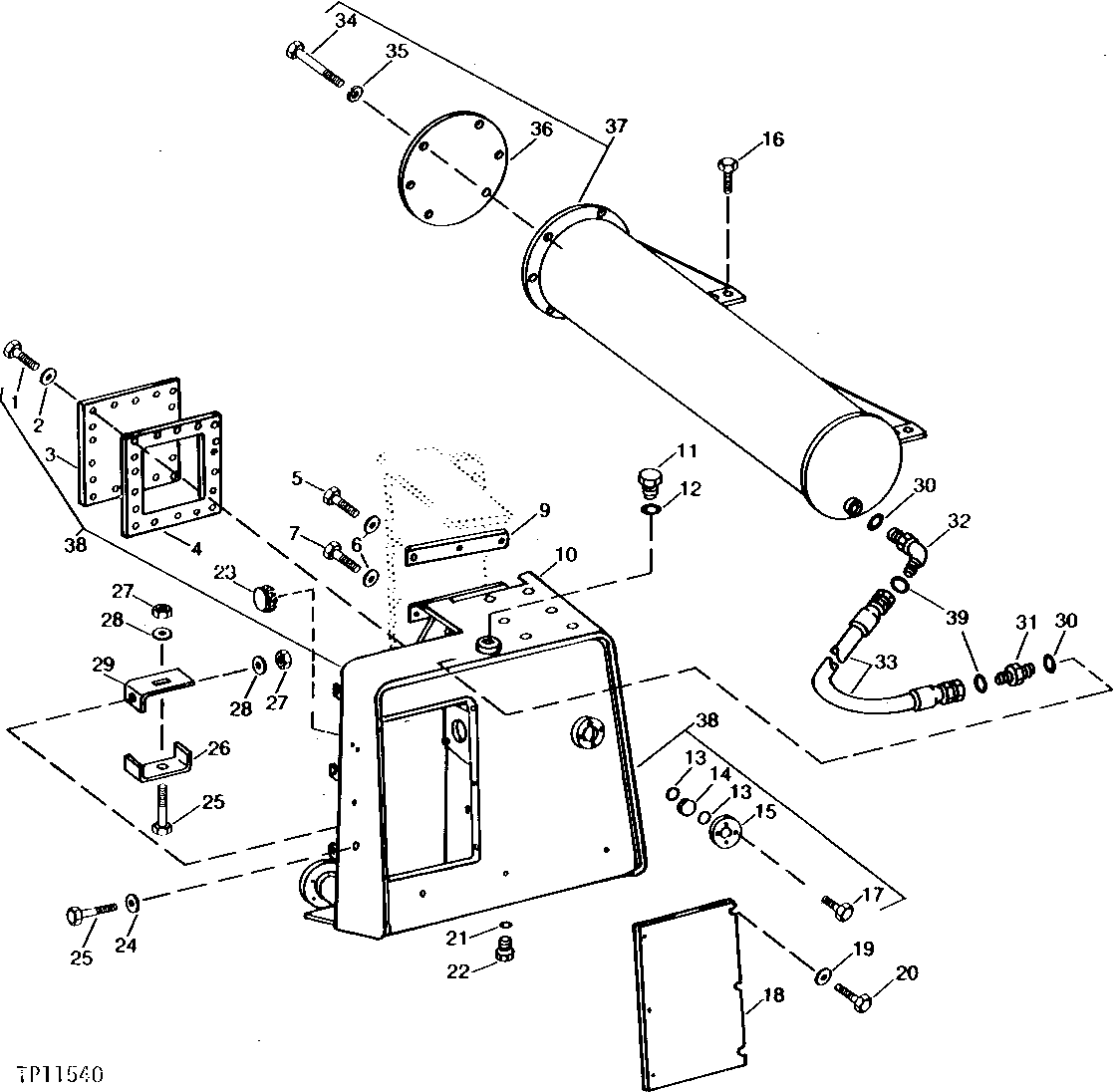

HYDRAULIC SUMP (STEEL MILL LOADER) (WATER GLYCOL) (SERIAL NO. 714981- ) [03L10]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H1648	18	Cap Screw	3/8" X 3/4"
2	12H304	18	Lock Washer	3/8"
3	T36092	1	COVER	-
4	-	1	Part 4	(SUB T43514, 56 ML (2 OZ.) BOTTLE OF LIQUID PLASTIC GASKET)
5	19H1990	6	Cap Screw	1/2" X 2-1/4"
6	T10510	6	Washer	(USE IF AVAILABLE)
6	R78019	6	Washer	(SUB FOR T10510)
7	19H2431	6	CAP SCREW	3/4" X 2-1/4", (SUB FOR 19H1782)
8	T21242	6	Washer	-
9	T56540	1	STRAP	0.91 MM (.036")
9	T74729	1	STRAP	1.52 MM (.060")
9	T74730	1	SHIM	3 MM (.118")
10	T128140	1	STRAP	(SUB FOR T56329, T74725 AND T74726) 0.91 MM (.036")
11	T54099	1	Fitting	-
12	U13639	1	O-Ring	-
13	U10289	2	O-Ring	(SUB FOR T72890)
14	U13425	1	WINDOWPANE	-
14	U13552	1	WASHER	-
15	U13551	1	WASHER	-
16	19H3196	4	Cap Screw	3/4" X 4"
17	21H1300	4	SCREW	0.190" X 3/8"
18	T47489	1	COVER	-
19	24H1308	4	Washer	13/32" X 1" X 0.134"
20	19H2284	4	Cap Screw	3/8" X 7/8"
21	U12547	1	O-Ring	(SUB FOR F3171R)
22	AT73706	1	FITTING	-
23	M61266	1	Plug	(SUB FOR R34337)
24	24H1307	1	Washer	13/32" X 1" X 1/16"
25	19H1849	2	Cap Screw	5/16" X 1-1/4"
26	T58046	1	CHANNEL	-
27	14H785	2	Nut	5/16"
28	12H303	1	Lock Washer	5/16"
29	T58047	1	BRACKET	-
30	R26448	2	O-Ring	-
31	38H1160	1	Adapter Fitting	-
32	AT35121	1	Elbow Fitting	90°
33	AT79549	1	HYDRAULIC HOSE - FABRICATE	11/16" X 381 MM (15") X 11/16"
34	19H2664	6	Cap Screw	5/16" X 3/4"
35	12H303	6	Lock Washer	5/16"
36	-	1	Part 40	NO LONGER AVAILABLE
37	AT73704	1	TANK	-
38	AT80577	1	HYDRAULIC RESERVOIR	(WATER GLYCOL) (SUB FOR AT73744)
39	T77814	1	O-Ring	-

HYDRAULIC SUMP (STEEL MILL LOADER) (WATER GLYCOL) (SERIAL NO. 714981- ) [03L10]
