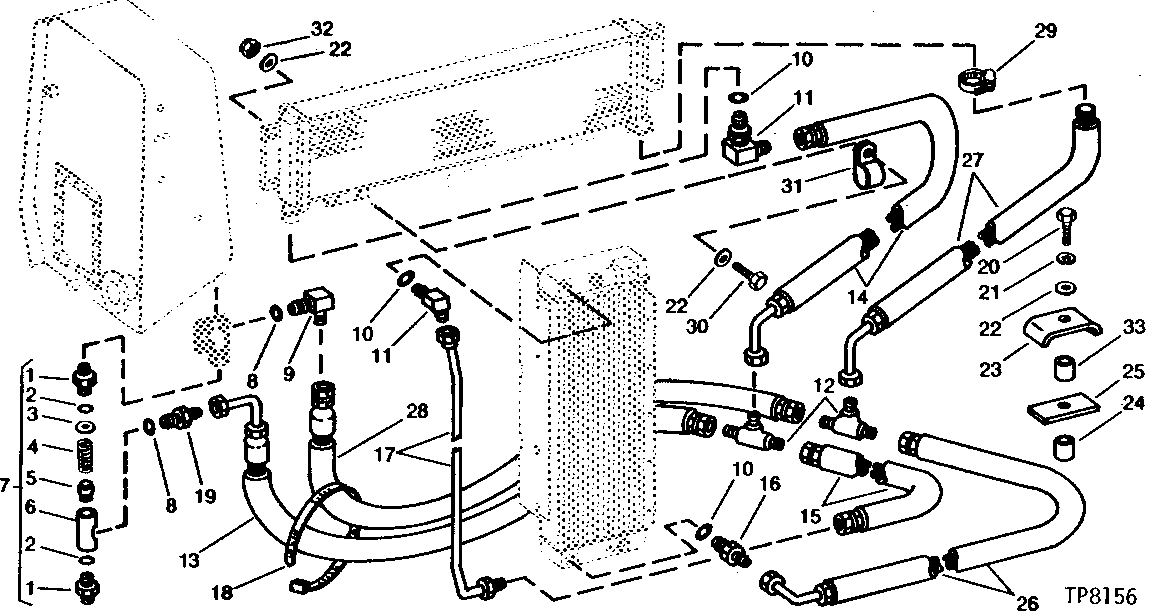

HYDRAULIC OIL COOLER HYDRAULICS (STEEL MILL LOADER) (SERIAL NO. -714980) [03K11]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T52400	2	UNION FITTING	-
2	R26773	2	O-Ring	-
3	24H1451	1	Washer	1-1/32" X 1-3/4" X 0.060"
4	M102T	1	SPRING	-
5	T60819	1	CHECK VALVE	-
6	T60818	1	HOUSING	-
7	AT58211	1	RELIEF VALVE	-
8	R26906	2	O-Ring	-
9	AE30518	1	Elbow Fitting	90°
10	U12547	3	O-Ring	(SUB FOR (3) F3171R)
11	AT32331	2	Elbow Fitting	90°, ADJUSTABLE
12	N181441	2	TEE FITTING	-
13	-	1	Part 13	1-1/16" X 3 048 MM (120") X 1-1/16" ( AT73690 USE IF AVAILABLE)
14	-	1	Part 14	1-1/16" X 1 676 MM (66") X 1/16" ( AT73691 USE IF AVAILABLE)
15	-	1	Part 15	1-1/16" X 1 549 MM (61") X 1-1/16" ( AT73752 USE IF AVAILABLE)
16	R27267	1	Fitting	-
17	AT57508	1	LINE	-
18	N189220	1	Tie Band	(SUB FOR AT42520 OR AA21510)
19	T38666	1	Fitting	-
20	19H3404	3	Cap Screw	3/8" X 4"
21	12H304	3	Lock Washer	3/8"
22	24H1305	5	Washer	13/32" X 13/16" X 0.065"
23	U44385	3	CLAMP	(TO HOLD HOSES TO FRONT ENGINE SUPPORT, FRONT CROSSBAR AND INNER SIDE FRAME)
24	28H2552	3	SPACER	1/2" X 1-1/8"
25	T48730	3	STRAP	-
26	-	1	Part 26	1-1/16 X 1 676 MM (66") X 1-1/16" ( AT73692 USE IF AVAILABLE)
27	-	1	Part 27	( AT73693 USE IF AVAILABLE)
28	-	1	Part 28	1-1/16" X 3 251 MM (128") X 1-1/16" ( AT73694 USE IF AVAILABLE)
29	AR54815	1	Clamp	-
30	19H2676	1	Cap Screw	3/8" X 1"
31	T48478	1	CLAMP	-
32	T11234	1	Lock Nut	-
33	28H1529	3	Bushing	1/2" X 1-3/4"

HYDRAULIC OIL COOLER HYDRAULICS (STEEL MILL LOADER) (SERIAL NO. -714980) [03K11]
