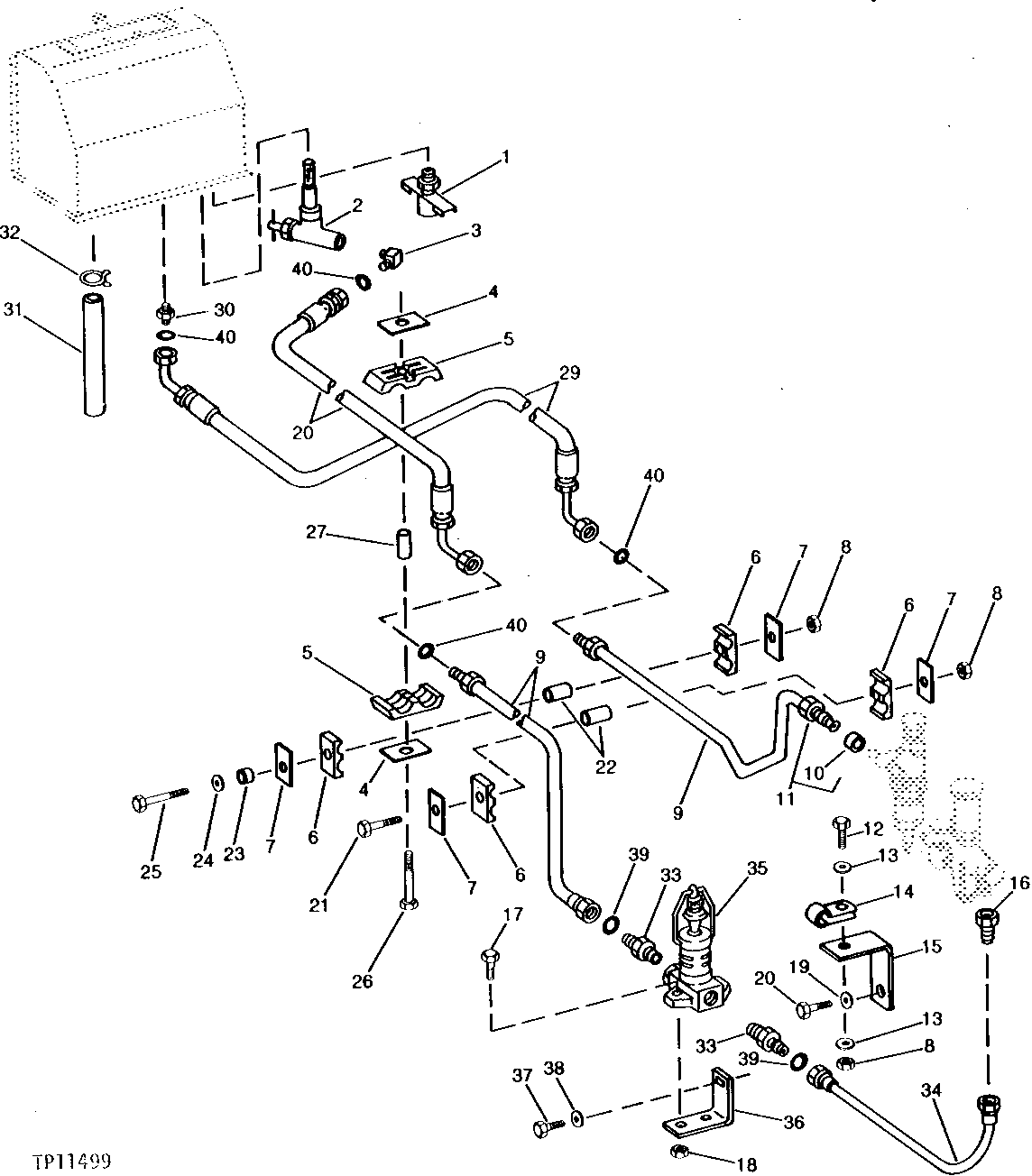

FUEL LINES (STEEL MILL LOADER) (SERIAL NO. 714981- ) [02J07]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT13740	1	Drain Valve	-
2	AT51946	1	HAND OPERATED VALVE	-
3	R87907	1	Elbow Fitting	(SUB FOR T79789)
4	T43265	2	STRAP	-
5	H105482	2	Clamp	-
6	T43348	4	Clamp	(SUB FOR T50391)
6	19H1912	1	Cap Screw	3/8" X 3-1/2", (FUEL LINE AND LEAK-OFF TUBE TO CLUTCH DISCONNECT BRACKET ON SPLITTER HOUSING)
7	T50390	4	STRAP	-
8	14H812	3	NUT	3/8"
9	-	1	Part 10	( AT79778 USE IF AVAILABLE)
10	R51936	1	Sealing Washer	-
11	AT79768	1	FUEL LINE	-
12	19H2676	1	Cap Screw	3/8" X 1"
13	24H1305	2	Washer	13/32" X 13/16" X 0.065"
14	T33514	1	Clamp	-
15	T66084	1	ANGLE	(SUB FOR T104874)
16	T61041	1	ADAPTER FITTING	-
17	21H1312	2	SCREW	3/16" X 1"
18	14H778	2	Nut	0.190"
19	24H1161	1	Washer	13/16" X 1-15/32" X 0.134"
20	19H1871	1	Cap Screw	3/4" X 1-1/4"
21	19H3239	1	Cap Screw	3/8" X 1-1/4"
22	T50392	2	BUSHING	-
23	28H1697	1	Spacer	3/8" X 3/4"
24	24H1307	1	Washer	13/32" X 1" X 1/16"
25	19H2732	1	Cap Screw	3/8" X 2-3/4"
26	19H2333	1	Cap Screw	1/4" X 2-1/4"
27	M65702	1	SPACER	-
28	AT79775	1	HYDRAULIC HOSE - FABRICATE	11/16" X 1 746 MM (68-3/4") X 11/16"
29	AT79774	1	HYDRAULIC HOSE - FABRICATE	11/16" X 1 607 MM (63-1/4") X 11/16"
30	M87733	1	Adapter Fitting	-
31	N112006	1	HOSE	-
32	T13254	1	Clamp	-
33	T79791	2	Adapter Fitting	-
34	AT79779	1	FUEL LINE	-
35	AR72964	1	PUMP	-
36	T75600	1	ANGLE	-
37	19H1648	1	Cap Screw	3/8" X 3/4"
38	R42729	1	Washer	-
39	T77857	2	O-Ring	-
40	T77613	4	O-Ring	-

FUEL LINES (STEEL MILL LOADER) (SERIAL NO. 714981- ) [02J07]

Нет текстового описания
