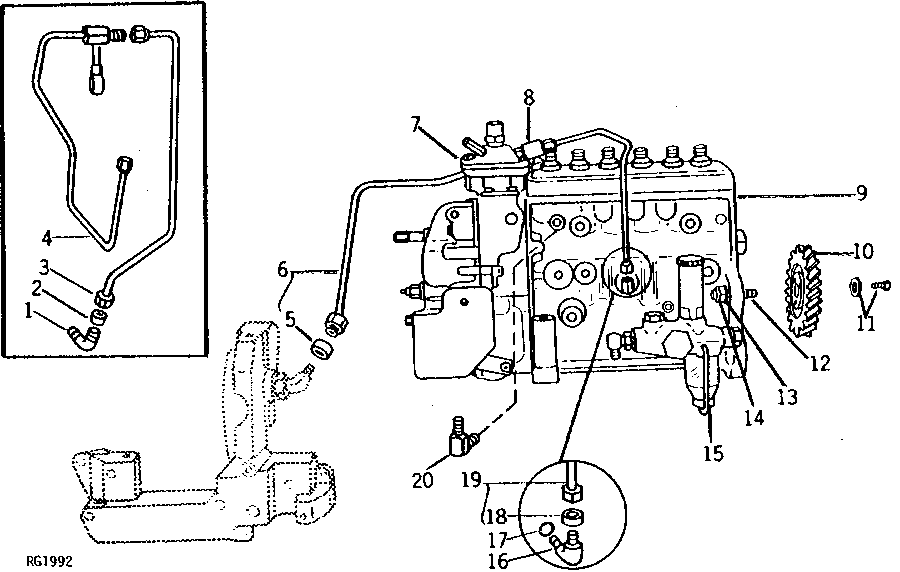

FUEL INJECTION PUMP AND LUBE LINES (ENGINE SERIAL NO. -030989) (EARLY DESIGN) [02F03]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R67364	1	Elbow Fitting	-
2	R51936	2	Sealing Washer	-
3	AR76906	1	OIL LINE	(SUB AR87683)
4	AR76905	1	LINE	(SUB AR87683)
5	R67264	4	Packing	(SUB FOR R63603)
6	AR87561	1	Oil Line	-
7	-	1	Part 7	(A)
8	AR87636	1	Tee Fitting	-
8	R62106	1	Screw	-
8	R62107	2	Washer	-
9	AR78437	1	FUEL INJECTION PUMP	(A) (ROBERT BOSCH PES6P110A720RS370) (SUB RE21154)
10	R66667	1	GEAR	(73 TEETH) (SUB FOR R56510) (SUB R111387 CAM GEAR, R111388, (3) R63845 AND (3) 19H3483, APPL)
10	R111388	1	GEAR	(42 TEETH) (USE WITH R111387)
11	AR95772	3	CAP SCREW	(SUB FOR AR58707) (USE WITH R66667)
11	R63845	3	Washer	(USE WITH R111388)
11	19H3483	3	Cap Screw	3/8" X 1-1/8", (USE WITH R111388)
12	R114130	4	Stud	(SUB FOR R55396, APPL)
13	M72490	4	Washer	(SUB FOR R42729)
14	14H1090	4	Nut	3/8", (SUB FOR R32511 OR E55662, APPL)
15	-	1	Part 20	(SUB AR58812)
16	R57641	1	ELBOW FITTING	-
16	R67364	1	Elbow Fitting	(SUB FOR T18012, APPL)
17	R79060	1	O-Ring	(SUB FOR R26287, APPL)
18	R51936	1	Sealing Washer	-
19	AR87562	1	OIL LINE	-
20	U45538	1	ELBOW FITTING	(USE WITH AR87670)

FUEL INJECTION PUMP AND LUBE LINES (ENGINE SERIAL NO. -030989) (EARLY DESIGN) [02F03]
