FUEL INJECTION NOZZLES AND FUEL LINES (ENGINE SERIAL NO. 045850- ) [02E12]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

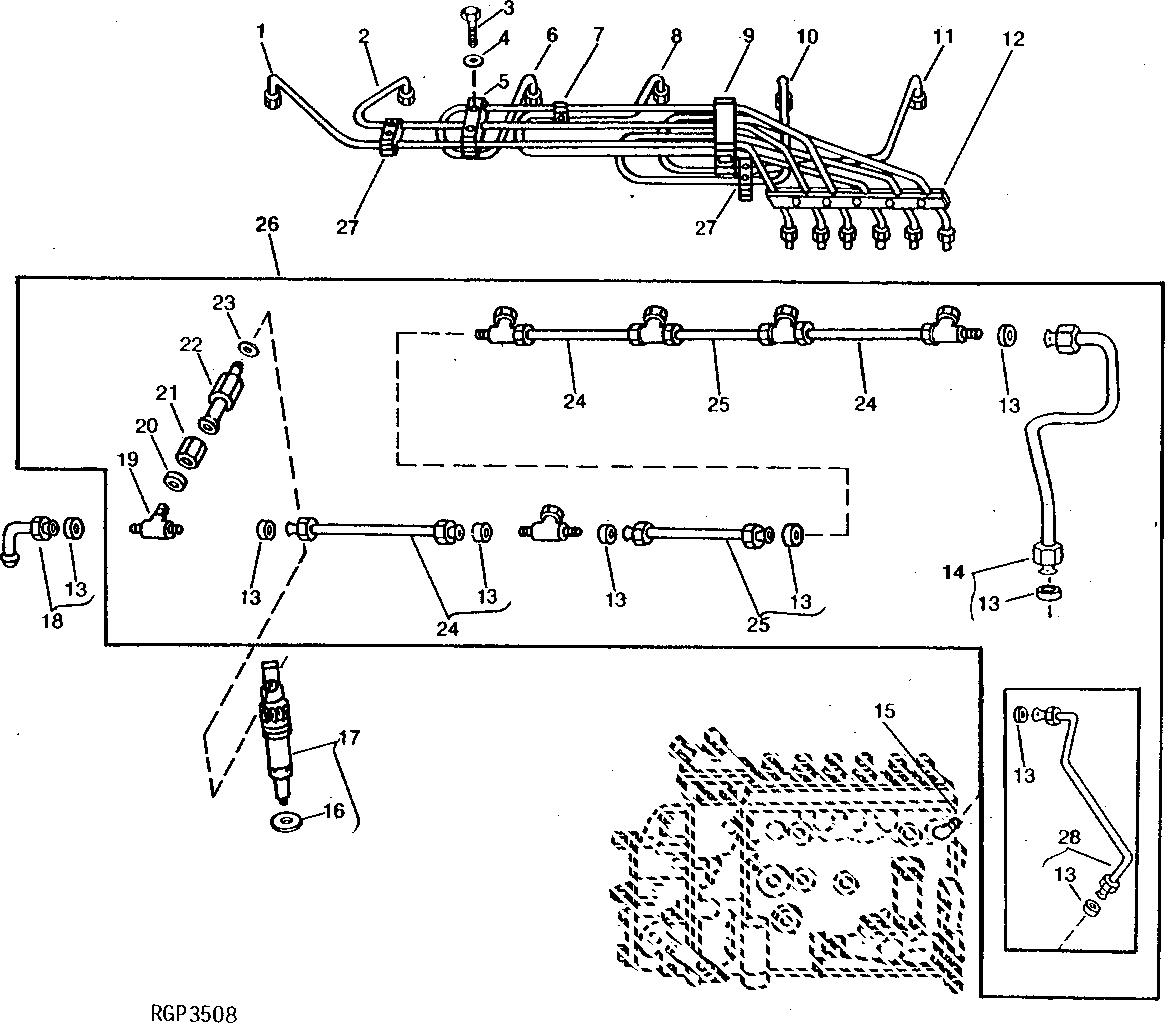

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE13596	1	FUEL LINE	NO. 6, (SUB FOR AR87442)
2	RE13595	1	FUEL LINE	NO. 5, (SUB FOR AR87441)
3	19H1849	2	Cap Screw	5/16" X 1-1/4"
4	12H303	2	Lock Washer	5/16"
5	R67197	2	Strap	-
5	R67195	1	Strap	-
5	R67196	2	Clamp	-
5	R67197	1	Strap	-
6	RE13594	1	FUEL LINE	NO. 4, (SUB FOR AR87440)
7	R61144	1	Strap	-
7	R58186	2	Clamp	-
7	R59305	1	Strap	-
7	AR76704	1	SCREW	0.190" X 1"
8	RE13593	1	FUEL LINE	NO. 3, (SUB FOR AR87439)
9	R74660	1	Absorber	(INNER)
9	R74661	1	Absorber	(OUTER)
10	RE13592	1	FUEL LINE	NO. 2, (SUB FOR AR87438)
11	RE13591	1	FUEL LINE	NO. 1, (SUB FOR AR87437)
12	R58189	1	Clamp	-
12	R58188	1	Clamp	-
12	R59301	1	Reinforcement	-
12	AR76704	5	SCREW	0.190" X 1"
13	R51936	13	Sealing Washer	-
14	RE42283	1	Fuel Line	(SUB FOR RE11925)
15	R67364	1	Elbow Fitting	-
16	R64840	6	Washer	-
17	AR73847	6	Nozzle Holder	-
17	SE500101	6	Injection Nozzle Reman	(REMANUFACTURED)
17	SE501110	1	Injection Nozzle Reman	(SINGLE PACK) (REMANUFACTURED FOR AR73847)
18	AR104650	1	Fuel Line	(SUB FOR RE503092)
19	AR85618	6	CAP	(SUB R79604, R79605 AND R79606, THIS APPLICATION)
19	R79606	6	Tee Fitting	-
20	R79605	6	Washer	(SUB FOR T29539)
21	R79604	6	Tube Nut	(SUB FOR T29540)
22	R89175	6	Fitting	(ALSO ORDER R77551) (USE WITH RE11929)
22	R77850	6	Fitting	(SUB R89175 AND R77551) (USE WITH RE11929)
23	R59294	6	SEALING RING	(USE WITH R77850)
23	R77551	6	O-Ring	(USE WITH R89175)
24	RE11926	3	Fuel Line	-
25	RE11927	2	Fuel Line	-
26	RE11929	1	Fuel Line	-
27	R61145	2	Strap	-
27	R59297	4	Half Clamp	-
27	R59298	2	Strap	-
27	AR76704	4	SCREW	0.190" X 1"
28	RE11925	1	Fuel Line	(SUB RE42283)
