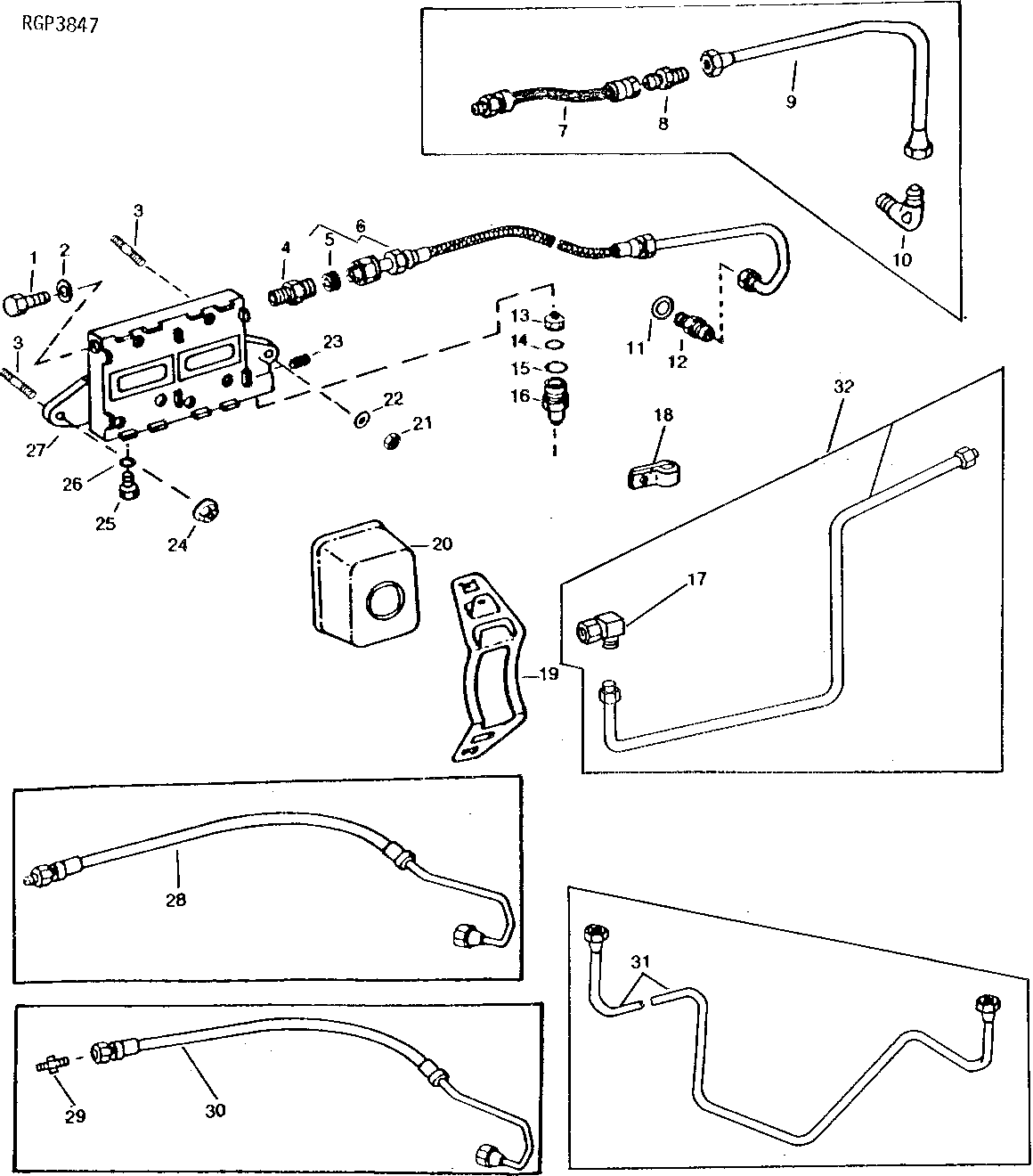

FUEL FILTER AND FUEL LINES (ENGINE SERIAL NO. 054067- ) [02G01]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R50425	1	DRAIN PLUG	-
2	R50426	1	WASHER	-
3	K3083R	2	STUD	-
4	R51133	1	Fitting	(USE WITH RE28951 OR RE41173)
5	R67092	1	Sealing Washer	-
6	RE28951	1	FUEL LINE	(SUB FOR AR85332, AR87670 OR RE23156) (SUB RE41173)
6	RE41173	1	Fuel Line	-
7	AR85332	1	HOSE	(SUB RE41173, R83490, R51133 AND R53899)
8	R50201	1	FITTING	-
9	AR87670	1	FUEL LINE	(SUB RE41173, R83490, R51133 AND R53899)
10	U45538	1	ELBOW FITTING	(USE WITH AR87670)
10	R78379	1	Adapter Fitting	(USE WITH AR87670 AND U45538) (890A)
11	R53899	1	Washer	(USE WITH ROBERT BOSCH FUEL INJ. PUMP)
12	R83490	1	Fitting	(USE WITH ROBERT BOSCH FUEL INJ. PUMP)
13	AR73824	1	CHECK VALVE	-
14	P46051	1	O-Ring	-
15	R375R	1	O-Ring	-
16	R81460	1	FITTING	(JD862, JD855, JD890, 890A, JD850, 850LGP)
16	R81461	1	FITTING	(992D-LC)
17	R113629	1	Elbow Fitting	-
18	T13814	1	Clamp	(SUB FOR T30367)
19	R66821	2	CLAMP	-
20	AR86745	2	Filter Element	(MARKED AR86745 OR RE10104)
21	14H813	1	Nut	7/16"
22	24H1325	1	Washer	15/32" X 59/64" X 0.065"
23	R104592	1	Pipe Plug	-
24	14H1059	2	Nut	7/16"
25	R48071	2	DRAIN PLUG	-
26	R34447	2	WASHER	-
27	R81459	1	BASE	-
28	RE23156	1	Fuel Line	(SUB RE41173, R51133, R83490 AND R53899)
29	R26892	1	Fitting	(USE WITH RE35247)
30	RE35247	1	Fuel Line	(SUB RE41173, R51133, R83490 AND R53899)
31	AR87666	1	FUEL LINE	(SUB RE50695)
32	RE50695	1	Engine Kit	-

FUEL FILTER AND FUEL LINES (ENGINE SERIAL NO. 054067- ) [02G01]
