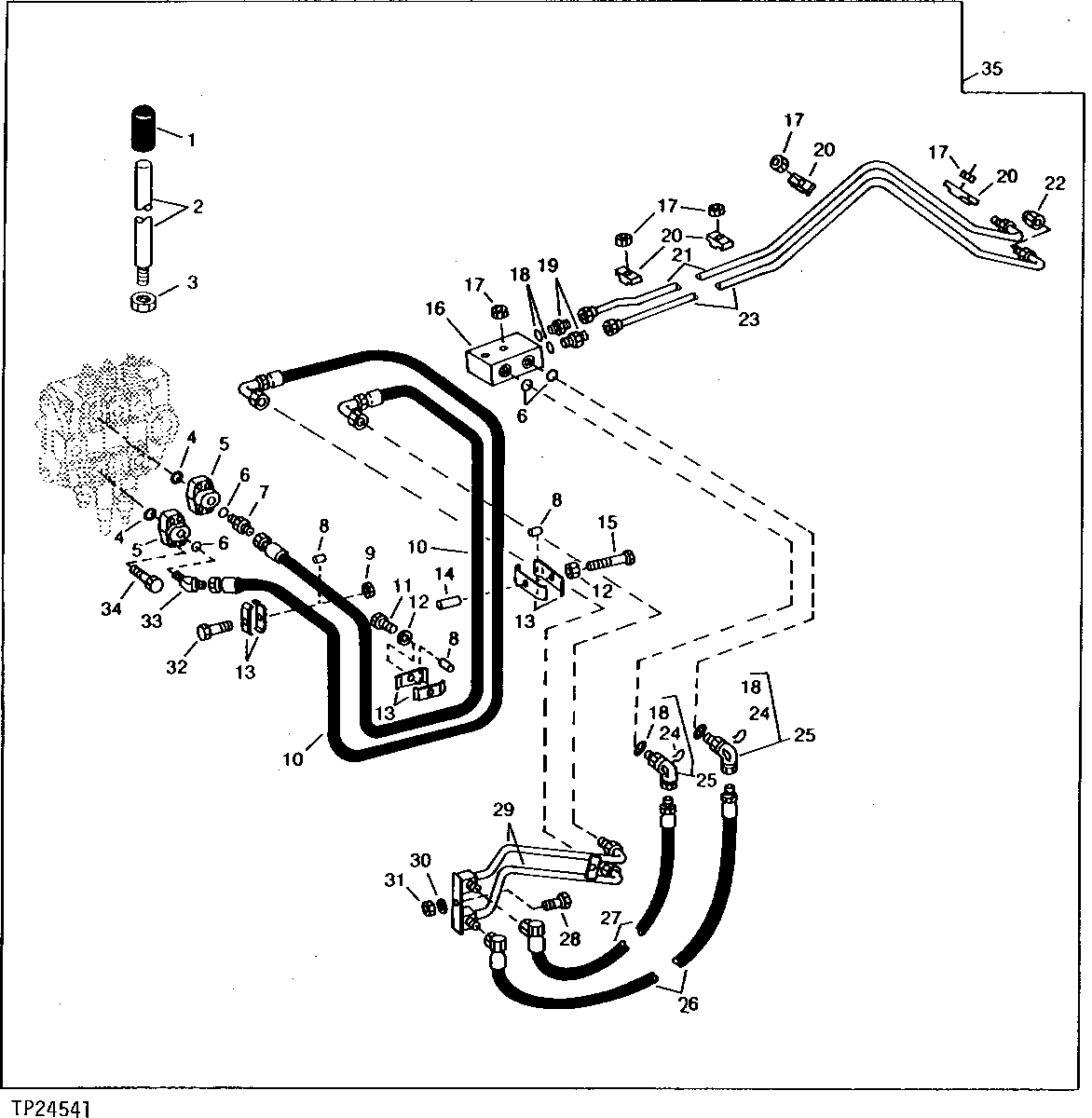

FRONT AUXILIARY HYDRAULIC LINES (SERIAL NO. -714980) [03K07]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 2	(TO HOLD GRIP ON AUXILIARY LEVER)
1	T37058	1	GRIP	(SUB FOR AP17808, THIS APPLICATION)
2	T120386	1	ROD	(SUB FOR T48087) (ALSO ORDER T37058)
3	14H821	1	Nut	5/8"
4	U12037	2	O-Ring	(SUB FOR T72889) (SUB FOR U12037, THIS APPLICATION)
5	T60983	2	Flange Fitting	-
6	R29936	4	O-Ring	-
7	T26767	1	Fitting	-
8	28H2552	3	SPACER	1/2" X 1-1/4"
9	T16464	1	Lock Nut	-
10	AT55855	2	HYDRAULIC HOSE	1-5/16" X 2 337 MM (92") X 1-5/16"
11	19H3031	1	Cap Screw	3/8" X 2-1/2"
12	12H304	2	Lock Washer	3/8"
13	T27020	6	CLAMP	-
14	28H1730	1	Bushing	1/2" X 1-15/16"
15	19H2700	1	Cap Screw	3/8" X 4-1/2"
16	T58048	1	MANIFOLD	-
17	E50102	6	Lock Nut	(SUB FOR C744DN OR (6) M63440)
18	U12547	4	O-Ring	(SUB FOR (4) F3171R)
19	R27267	2	Fitting	-
20	T38967	4	CLAMP	-
21	AT55852	1	TUBE	-
22	T29439	2	Fitting	-
23	AT55851	1	TUBE	-
24	T33281	2	Snap Ring	(USE WITH HEX. SHAPE IMPERIAL-EASTMAN ELBOW)
24	N172671	2	Snap Ring	(USE WITH ROUND SHAPE PARKER-HANNIFIN ELBOW)
25	AT25537	1	ELBOW FITTING	90° SWIVEL
26	AT55853	1	HOSE	1-5/16" X 838 MM (33") X 3/4"
27	AT55854	1	HOSE	1-5/16" X 660 MM (26") X 3/4"
28	19H2993	1	Cap Screw	1/2" X 1-1/2"
29	AT55856	1	TUBE	-
30	12H301	1	Lock Washer	1/2"
31	14H1040	1	Nut	1/2"
32	19H3130	1	Cap Screw	5/16" X 1-3/4"
33	AU43288	1	ELBOW FITTING	37° FLARE
34	19H3124	8	Screw	3/8" X 1-1/2"
35	AT55849	1	ASSEMBLY LINE PARTS	(SUB AT79480) (AT79480 NO LONGER AVAILABLE)
